Operation instructions | OTX 51-00 | ORX 14-00 | ORX 14-01| ORX 15-00

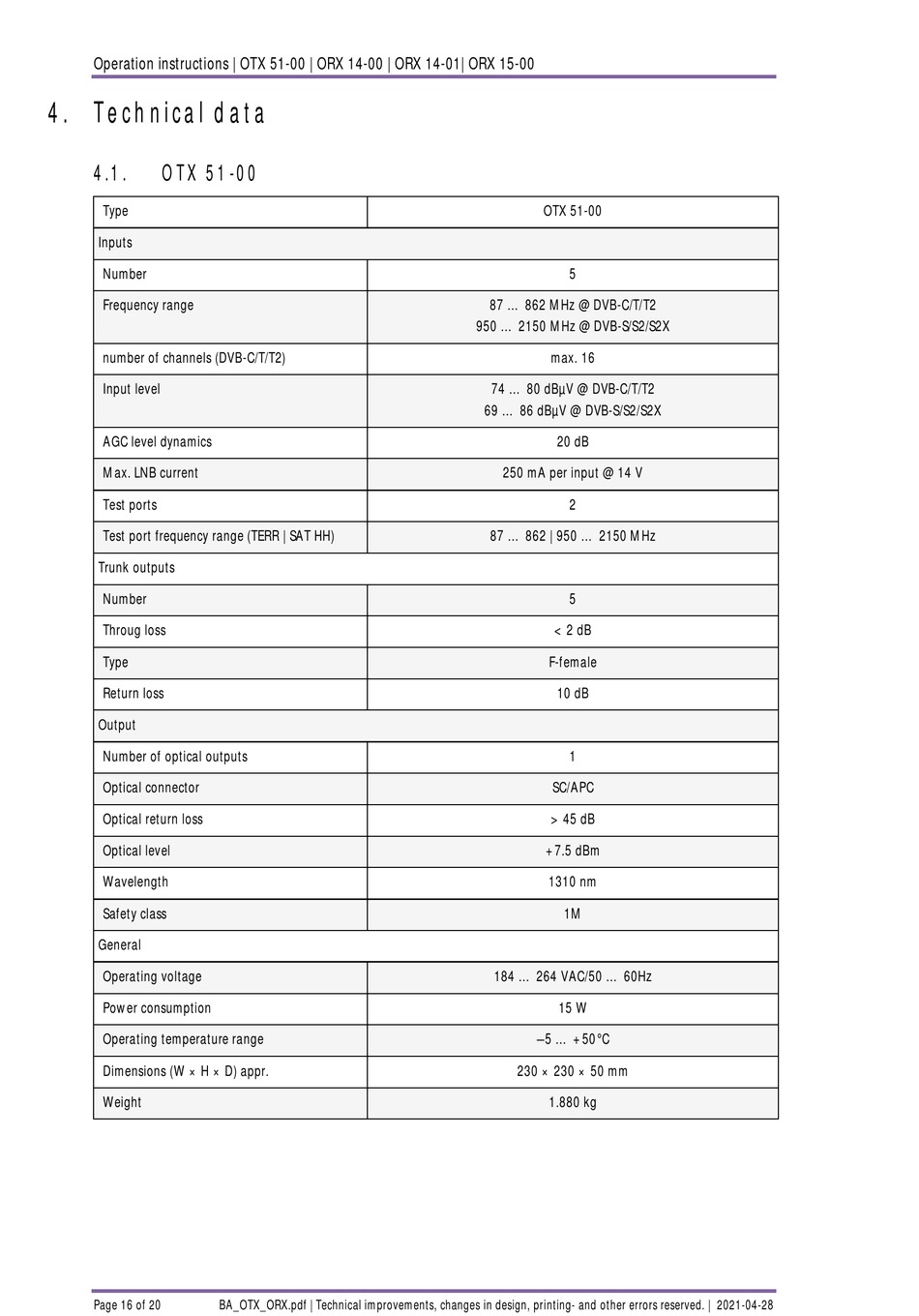

4. Technical data
4.1. OTX 51-00
Type
Inputs
Number
Frequency range
number of channels (DVB-C/T/T2)
Input level
AGC level dynamics
Max. LNB current
Test ports
Test port frequency range (TERR | SAT HH)
Trunk outputs
Number
Throug loss
Type
Return loss
Output
Number of optical outputs
Optical connector
Optical return loss
Optical level
Wavelength
Safety class
General
Operating voltage
Power consumption
Operating temperature range
Dimensions (W × H × D) appr.
Weight
Page 16 of 20 BA_OTX_ORX.pdf | Technical improvements, changes in design, printing- and other errors reserved. | 2021-04-28
OTX 51-00
5
87 ... 862 MHz @ DVB-C/T/T2
950 ... 2150 MHz @ DVB-S/S2/S2X
max. 16
74 ... 80 dBµV @ DVB-C/T/T2
69 ... 86 dBµV @ DVB-S/S2/S2X
20 dB
250 mA per input @ 14 V
2
87 ... 862 | 950 ... 2150 MHz
5
< 2 dB
F-female
10 dB
1
SC/APC
> 45 dB
+7.5 dBm
1310 nm
1M
184 ... 264 VAC/50 ... 60Hz
15 W
−5 ... +50°C
230 × 230 × 50 mm
1.880 kg
