GRAPHITE 59G613 Benutzerhandbuch Seite 7

• Do not use with a clogged air inlet, or a clogged bag as you risk
damaging the device.
• When the device is not in use, remove the plug from the socket.
• Regularly check the technical condition of the device. Replace
damaged or worn parts.
• Do not use the device if the cable is found to be damaged. Do not
touch the cable before disconnecting the power supply!
• If you find any damage or notice alarming signals such as excessive
temperature and noise, immediately turn off the device and unplug
it.
• Protect from the effects of rain.
• Use only replacement parts recommended by the manufacturer
• All repairs should be carried out at an authorized service center.

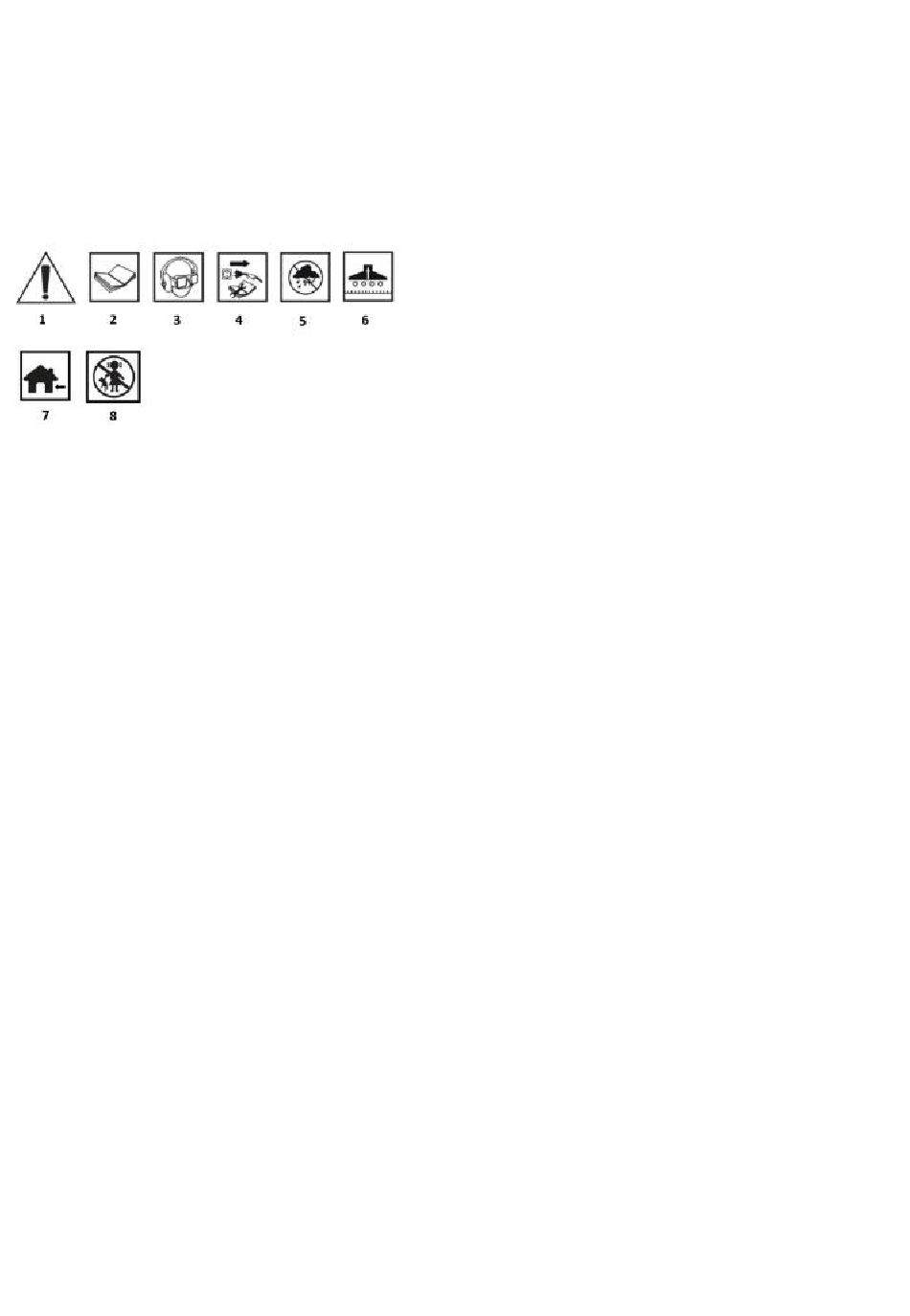

EXPLANATION OF THE PICTOGRAMS USED
1.Note: Take special precautions.
2.Read the instruction manual, follow the warnings and safety
conditions in it.
3.Use personal protective equipment (safety goggles, hearing
protectors, dust masks)
4.Disconnect the power cord before servicing or repairing.
5.Protect from moisture.
6.Use the right tips for water extraction.
7.For indoor use
8.Keep out of the reach of children
CONTENTS
• Suction hose
• Vacuum cleaner
• User manual
• Three-piece pipe
• Wheels
• Foam filter
• Fabric filter
• Suction tips
• Handle screws
APPLICATION
Multi-purpose vacuum cleaner designed for dry and wet work with the
appropriate filter.
DESCRIPTION OF THE GRAPHIC PAGES
1.Transport handle
2.O/I switch
3.Head
4.Filter basket
5.Float safety valve
6.Latches
7.Tank
8.Suction hose connector
9.Blower connector
10.Suction hose
11.Wide nozzle
12.Foam filter
13.Fabric filter
14.Slot nozzle
15.Three-part suction pipe
16.Wheels
17.Reduction tip
MOUNTING THE BRACKET
Fix the u-grip with two screws
INSTALLATION OF THE DEVICE HEAD
• The head of the device (3) is attached to the container (7) with
locking latches (6).
• To remove the device head (3), open the locking latch (6) and
remove the device head (3).
• When installing the device head (3), make sure that the locking latch
(6) is properly locked.
FILTER INSTALLATION
• Never use a vacuum cleaner without a suitable filter.
• For wet vacuuming operation, slide the supplied foam filter (12) over
the basket (4)
• Always use the supplied blue fabric filter (13) for dry vacuuming.
• The fabric filter should be installed in such a way that the air is not
sucked through the filter basket (4) without filtering.
INSTALLATION OF SUCTION HOSE
Connect the suction hose (10) to the appropriate vacuum cleaner
connector for the job, depending on the required application.
RECOVERY
Connect the suction hose (10) to the suction hose connector (8).
DMUCHING
Connect the suction hose (10) to the blowout connector (9).
SEEKING DISHES
• The wide nozzle (11) is used for vacuuming solids and liquids on
medium to large surfaces.
• The crevice nozzle (14) is specially designed for cleaning crevices
and edges.
ADAPTER
To connect the suction hose (10) to the power tool, you can use the
included adapter (17). To do this, install it between the suction hose
and the vacuum cleaner socket on the power tool.
The adapter is compatible with most power tools that have a round
hole that ejects waste: sawdust, dust, etc.
INCLUSION AND EXCLUSION
Plug the plug into an outlet. To turn on the vacuum cleaner switch (2) to
the I position. Switch the button to the 0 position to turn off the vacuum
cleaner .
DRY VACUUMING
Use a cloth filter for dry vacuuming (13)
WET VACUUMING
Use a foam filter for wet vacuuming (12)
1pc.
Always check that the filter is securely fastened.
1pc.
NOTE
1pc.
During wet vacuuming, the floating safety switch (5) closes when
3pcs.
the maximum level in the tank is reached. In this case, the suction
4pcs.
noise of the machine will change and become louder.
1pc.
Then turn off the device and empty the tank.
1pc.
Important!
2pcs.
The wet and dry vacuum cleaner is not suitable for vacuuming
2pcs.
flammable liquids.
Use only the supplied foam filter for wet vacuuming.
NADMUCH
Connect the suction hose (10) to the blowout connector (9) of the
vacuum cleaner.
CLEANING, MAINTENANCE
NOTE
Always unplug the power plug from the outlet before cleaning.
Cleaning
• All safety devices, vents and the motor housing should be kept free
of dirt and dust as much as possible.
• We recommend cleaning the device immediately after use.
Cleaning the device head
Clean the device regularly with a damp cloth and mild soap. Do not
use cleaners or solvents; they may be aggressive to the plastic parts
of the device.
Cleaning the tank (7)
The container can be cleaned with a damp cloth and mild soap or
under running water, depending on the amount of dirt.
Cleaning the fabric filter (13)
Clean the cloth filter (13) by gently shaking or brushing off the dirt.
Cleaning should not be done indoors. If the filter is very dirty, use a
mild soap and water solution to wash the reusable filter and rinse it
with clean water. Let the wet filter dry naturally in the air for 24 hours
before installing it in the tank.
Cleaning the foam filter (12)
Clean the foam filter (12) with a small amount of soft soap under
running water and let it dry.
SPECIFICATIONS
