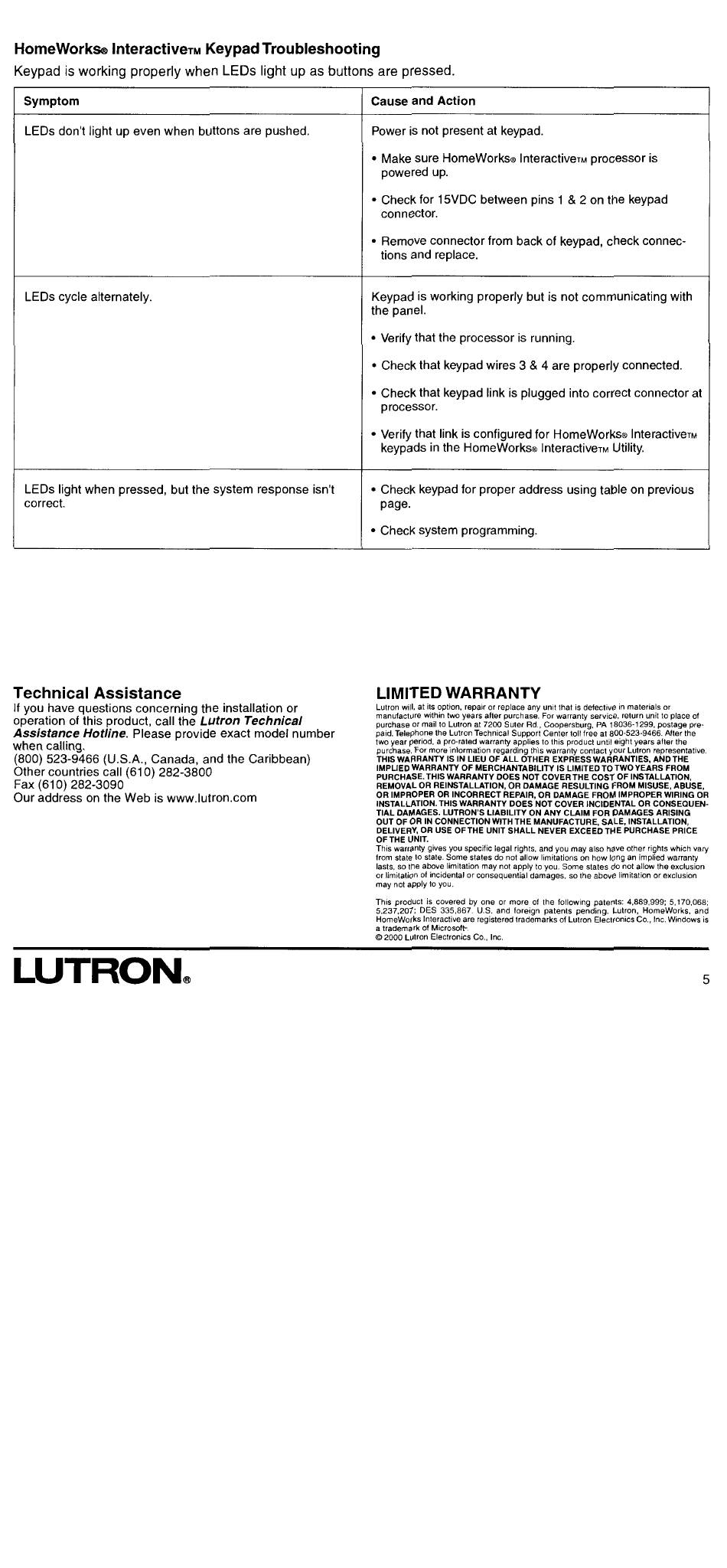

HomeWorksø InteractiveTM Keypad Troubleshooting
Keypad is working properly when LEDs light up as buttons are pressed.
Symptom
LEDs don't light up even when buttons are pushed.
LEDs cycle altemately.
LEDs light when pressed, but the system response isn't
correct.
Technical Assistance
If you have questions concerning the installation or
operation of this product, call the Lutron
Assistance Hotline. Please provide exact model number
when calling.
(800) 523-9466 (U.S.A., Canada, and the Caribbean)
Other countries call (610) 282-3800
Fax (610) 282-3090
Our address on the Web
LUTRON@
Technical
is www.lutron.com
Cause and Action
Power is not present at keypad.
• Make sure HomeWorksø InteractiveTM processor is
powered up.
• Check for 15VDC between pins I & 2 on the keypad
connector.
• Remove connector from back of keypad, check connec-
tions and replace.
Keypad is working properly but is not communicating
the panel.
• Verify that the processor is running.
• Check that keypad wires 3 & 4 are properly connected.
• Check that keypad link is plugged into correct connector at
processor.
• Verify that link is configured for HomeWorkse Interactivew
keypads in the HomeWorks@InteractiveTMUtility.
• Check keypad for proper address using table on previous
page.
• Check system programming.
