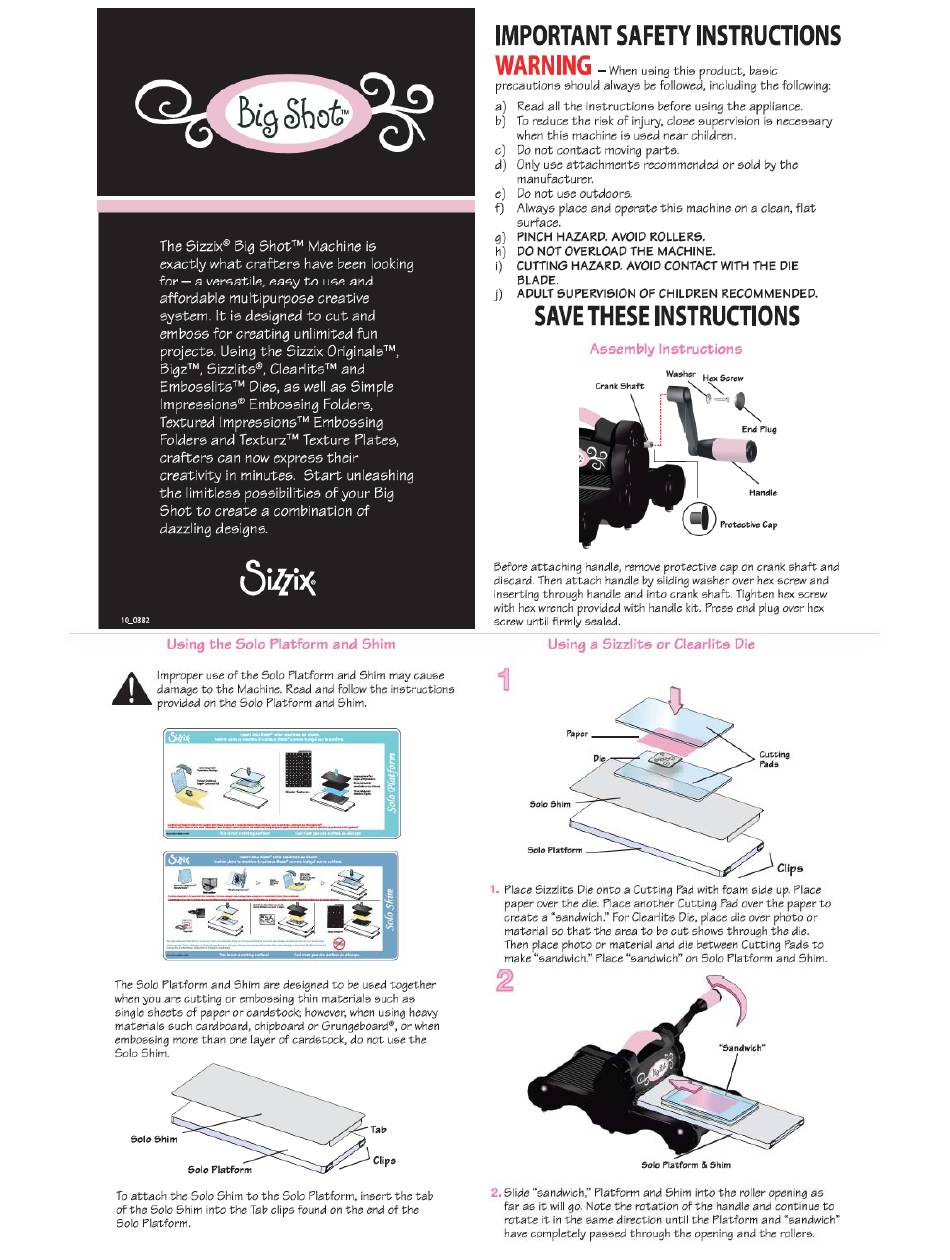

SIZZIX Big Shot Bedienungsanleitung

The Sizzix@Big ShotTMMachine is
exactly what crafters have been looking
for— a versatile, easy to use and
affordablemultipurposecreative
system. It is designed to cut and
emboss for creating unlimited fun
projects. Usingthe Sizzix OriginalsTM,
3igzTM, Sizzlits@, C learlitsTM and
EmbosslitsTM Dies,as wellas Simple
Impressions@ EmbossingFolders,
TexturedImpressionsTM Embossing
Folders and TexturzTM Texture Plates,
crafters can nowexpresstheir
creativity in minutes. Start unleashing
the limitless possibilities Ofyour Big
Shot to create a combination
dazzling designs.
10_0382
Using the Solo Platform and Shim
Improper u se of the Solo Platformand Shimmaycause
damage to the Machine.Readand follow the instructions
providedon the Solo Platform and Shim.
TheSolo Platform and Shim are designed to be used together
whenyou are cutting or embossingthin materials such as
single sheets of paper or cardstock: however, w henusing heavy
materialssuchcardboard, c hipboard or Grungeboardt, o r when
embossing more than one layer of cardstock, do not usethe
Solo Shirr,
Solo Shim
Solo Platform
To attach the Solo Shim to the Solo Platform,
of the Solo Shim into the Tabclips found on the end of the
Solo Platform.
IMPORTANT SAFETY INSTRUCTIONS
WARNING -
precautions should alwaysbe followed,includingthe following:
a) Readall the instructions beforeusing the appliance.
b) To reducethe risk of injury,close supervisionis necessary
when this
c)
Donot contact movingparts.
d) Only use attachments
manufacturer.
e)
Do not
f) Always placeand operate this machineon a clean,flat
surface.
g) PINCH
h) DO NOT OVERLOAD
i) CUTTING
BLADE.
j) ADULT
of
Beforeattaching handle, r emove protectivecap on crankshaft and
discard. Then attach
inserting through handle and into crank shaft. Tighten hex screw
with hexwrench providedwith handle kit. Press end plug over hex
screw until firmly sealed.
Solo S him
1. Place Sizzlits Dieonto a Cutting Padwith foam side up. Place
paper over the die. Place another Cutting Padover the paper to
create a "sandwich." ForClearlits Die, place die over photo or
material so that the area to be cut shows through the die.
Thenplace photo or material and die betweenCutting Padsto
make "sandwich."
2
Tab
Clips
2. Slide"sandwich," P latform and Shiminto the rolleropening as
insert the tab
far as it will go. Note the rotation of the handle and continue to
rotate
havecompletelypassedthroughthe opening and the rollers.
Whenusingthis product, basic
machine is used near children.
recommended or sold by the
use outdoors.
HAZARD. AVOID ROLLERS.
THE MACHINE.
HAZARD. AVOID CONTACT
SUPERVISION OF CHILDREN
SAVE THESE INSTRUCTIONS
Assembly Instructions
Crank Shaft
handle by sliding washer over hex screw and
I-Ising a Sizzlits or Clearlits
Platform
Place "sandwich" on Solo Platform
Solo Platform & Shim
it in the same direction until the Platform
WITH THE DIE
RECOMMENDED.
End Plug
Handle
Die
Clips
and Shim.
and "sandwich"
