Used in combination

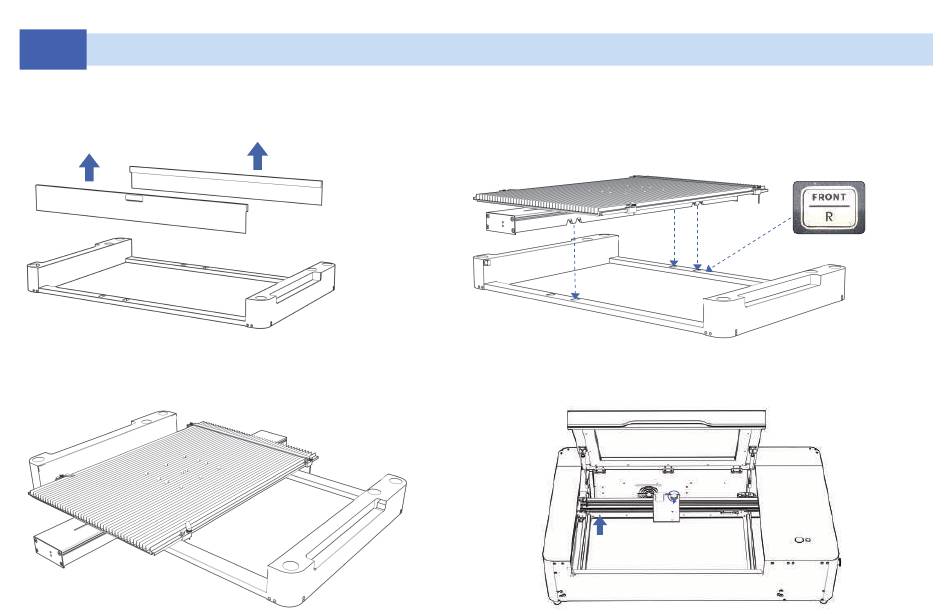

The R7 conveyor feeder must be used in combination with the H3 riser.
1）Remove the side plates from riser first.
3）Assembly of conveyor feeder with riser finished.
2）Align conveyor with riser.(Ensure alignment with the guide labels）
4）Push the X-axis of the Hurricane to the top and rotate the Z-axis air
nozzle to the highest position.
