Assembly Steps

Step 5

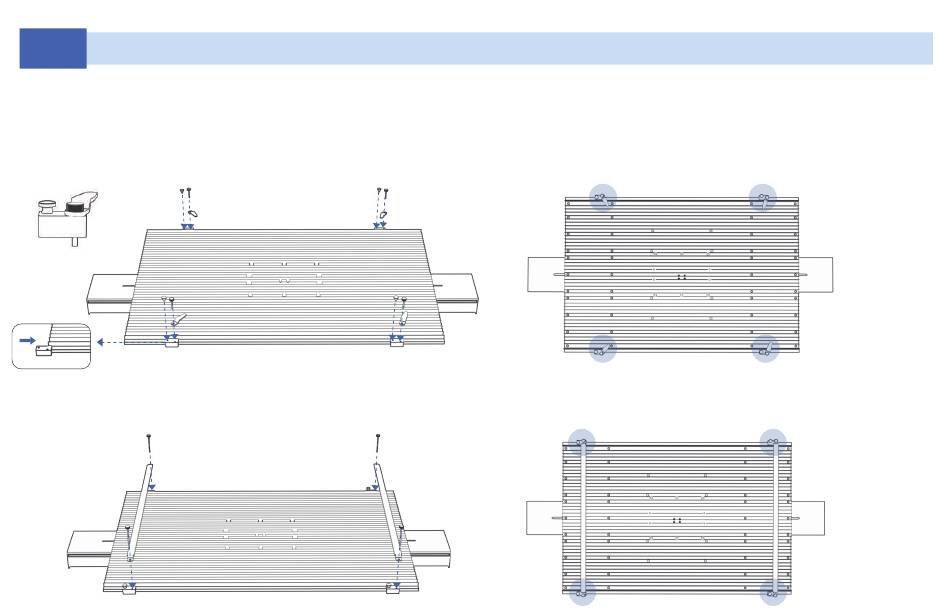

Instructions for fastening components

1）If you are engraving objects with a width of 340mm-370mm, directly use the fastening components. Slide the parts into the conveyor, and insert

the screws in the direction shown in the diagram to install the other fastening components.

Fixed components

2）If the objects being carved are narrower than 340mm, unscrew the knurled screws on the fastening components and replace them with M4*50

knurled screws, and also install the fixing pieces.

（M4*50 ）
