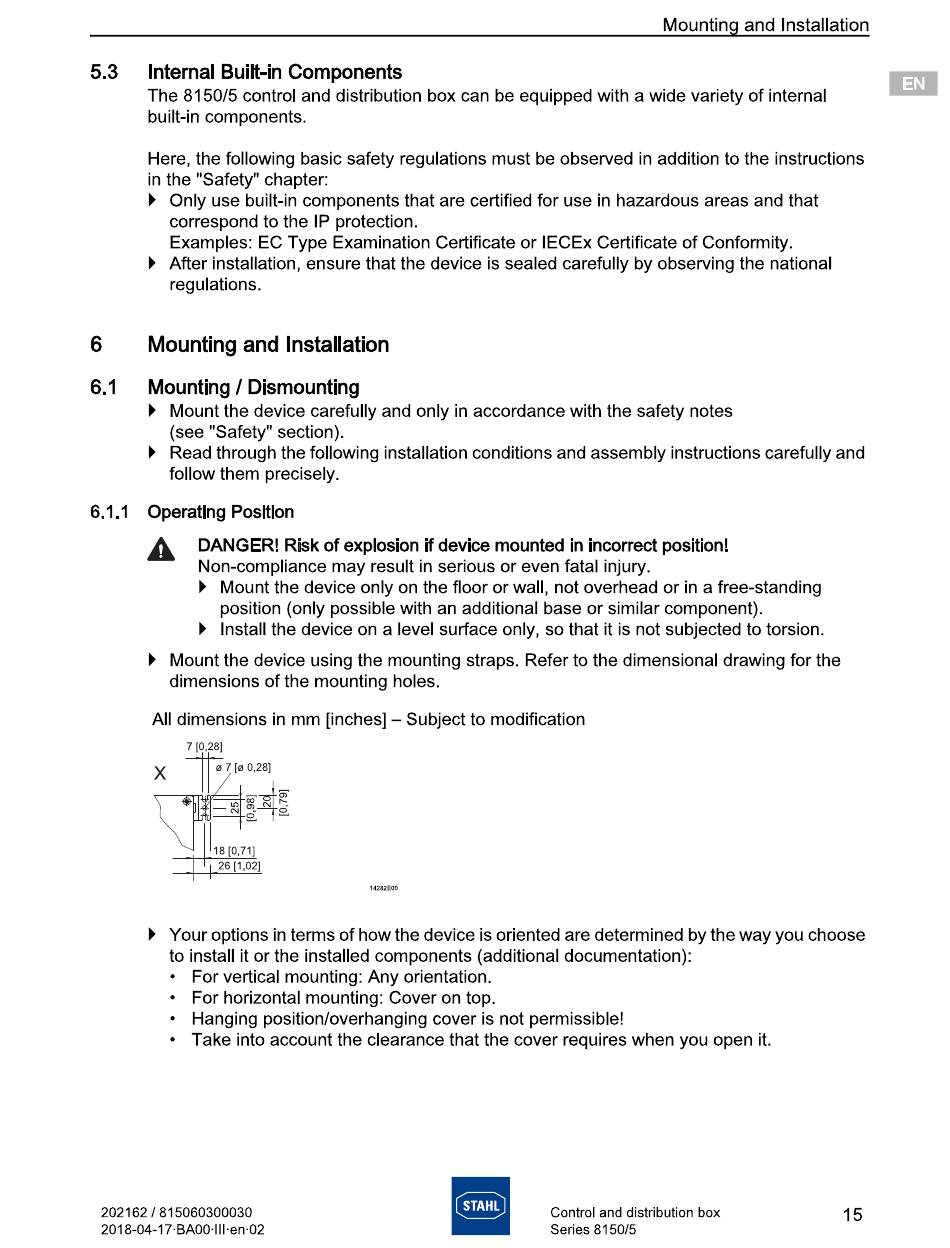

5.3
Internal Built-in Components
The 8150/5 control and distribution box can be equipped with a wide variety of internal
built-in components.
Here, the following basic safety regulations must be observed in addition to the instructions
in the "Safety" chapter:
Only use built-in components
correspond to the IP protection.
Examples: EC Type Examination
After installation, ensure that the device is sealed carefully by observing the national
regulations.
6
Mounting and Installation
6.1
Mounting / Dismounting
Mount the device carefully and only in accordance with the safety notes
(see "Safety" section).
Read through the following installation conditions and assembly instructions carefully and
follow them precisely.
6.1.1
Operating Position
A
DANGER! Risk ofexplosion i fdevice mounted i nincorrect position!
Non-compliance
Mount the device only on the floor or wall, not overhead or in a free-standing
position (only possible with an additional base or similar component)
Install the device on a level surface only, so that it is not subjected to torsion.
Mount the device using the mounting straps. Refer to the dimensional
dimensions
of the mounting holes.
All dimensions
7 [0,28]
ø 7 [ø 0,28]
x
18 [0,71]
26 [1 ,02]
Your options in terms of how the device is oriented are determined by the way you choose
to install it or the installed components
For vertical mounting: Any orientation.
For horizontal mounting: Cover on top.
Hanging position/overhanging
Take into account the clearance that the cover requires when you open it.
202162
/ 815060300030
2018-04-17
that are certified for use in hazardous areas and that
Certificate or IECEx Certificate of Conformity.
may result in serious or even fatal injury.
in mm [inches] —Subject to modification
i 42E2E00
cover is not permissible!
(additional documentation):
STAHL
Control
and
distribution
Series
8150/5
Mounting
and Installation
drawing for the
box
EN
15
