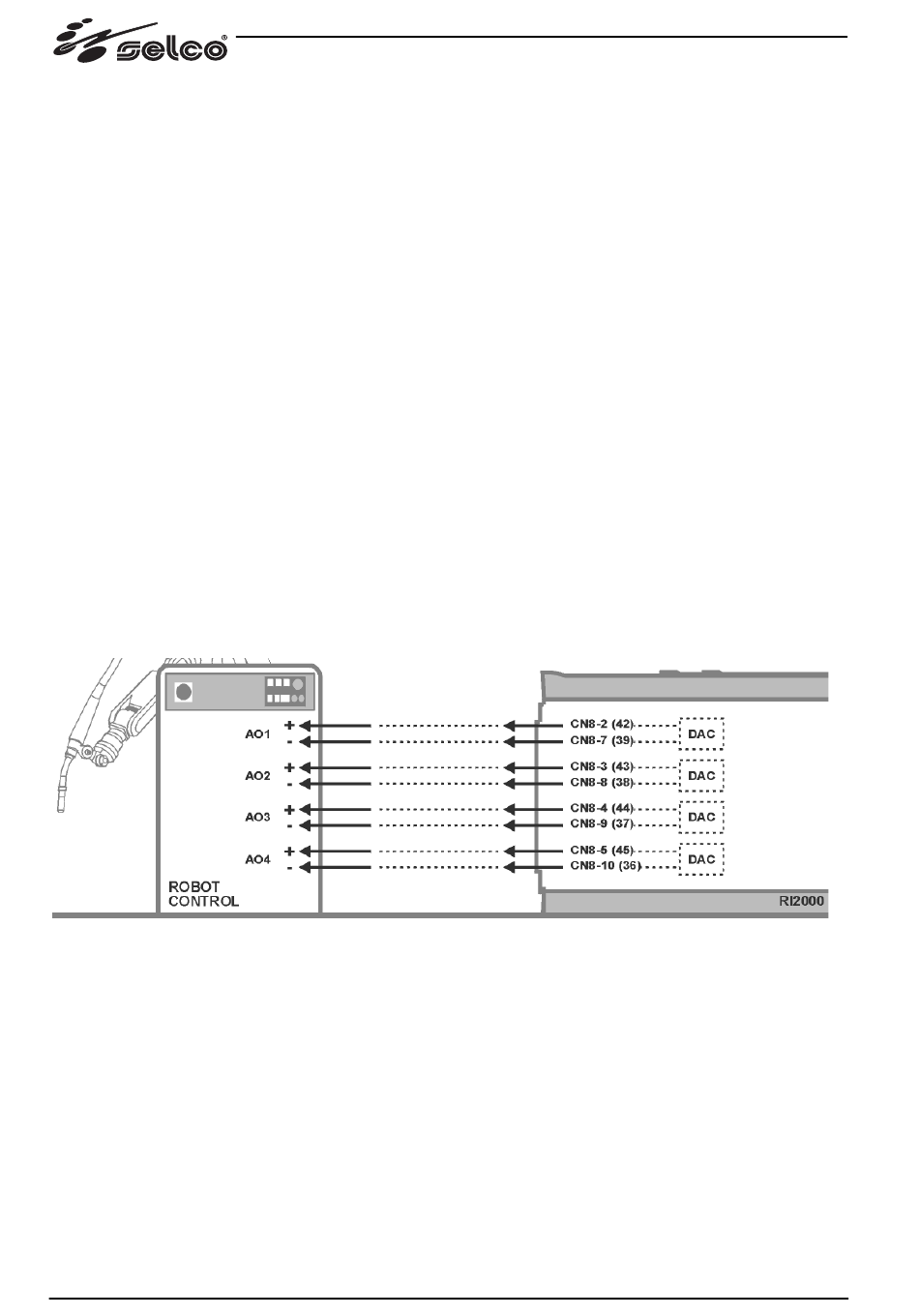

3.10 Analog outputs (connector CN8)

Analog outputs can supply a voltage value in the range 0 to 10V and in proportion to a quantity measured and preset on RC, FP .
CN8-2 Wire 42
CN8-7 Wire 39
CN8-3 Wire 43
CN8-8 Wire 38
CN8-4 Wire 44
CN8-9 Wire 37
CN8-5 Wire 45
CN8-10 Wire 36
46
ANALOG OUTPUT 1 (AO1): positive output (+)
ANALOG OUTPUT 1 (AO1): negative output (-)
Default: the parameter managed by this analog output is welding current.
The parameter managed by this analog input can be selected and programmed by RC, FP .
0V = minimum of selected parameter
10V = maximum of selected parameter
ANALOG OUTPUT 2 (AO2): positive output (+)
ANALOG OUTPUT 2 (AO2): negative output (-)
Default: the parameter managed by this analog output is welding voltage.
The parameter managed by this analog input can be selected and programmed by RC, FP .
0V = minimum of selected parameter
10V = maximum of selected parameter
ANALOG OUTPUT 3 (AO3): positive output (+)
ANALOG OUTPUT 3 (AO3): negative output (-)
Default: the parameter managed by this analog output is gas flow.
The parameter managed by this analog input can be selected and programmed by RC, FP .
0V = minimum of selected parameter
10V = maximum of selected parameter
ANALOG OUTPUT 4 (AO4): positive output (+)
ANALOG OUTPUT 4 (AO4): negative output (-)
Default: the parameter managed by this analog output is wire speed.
The parameter managed by this analog input can be selected and programmed by RC, FP .
0V = minimum of selected parameter
10V = maximum of selected parameter
