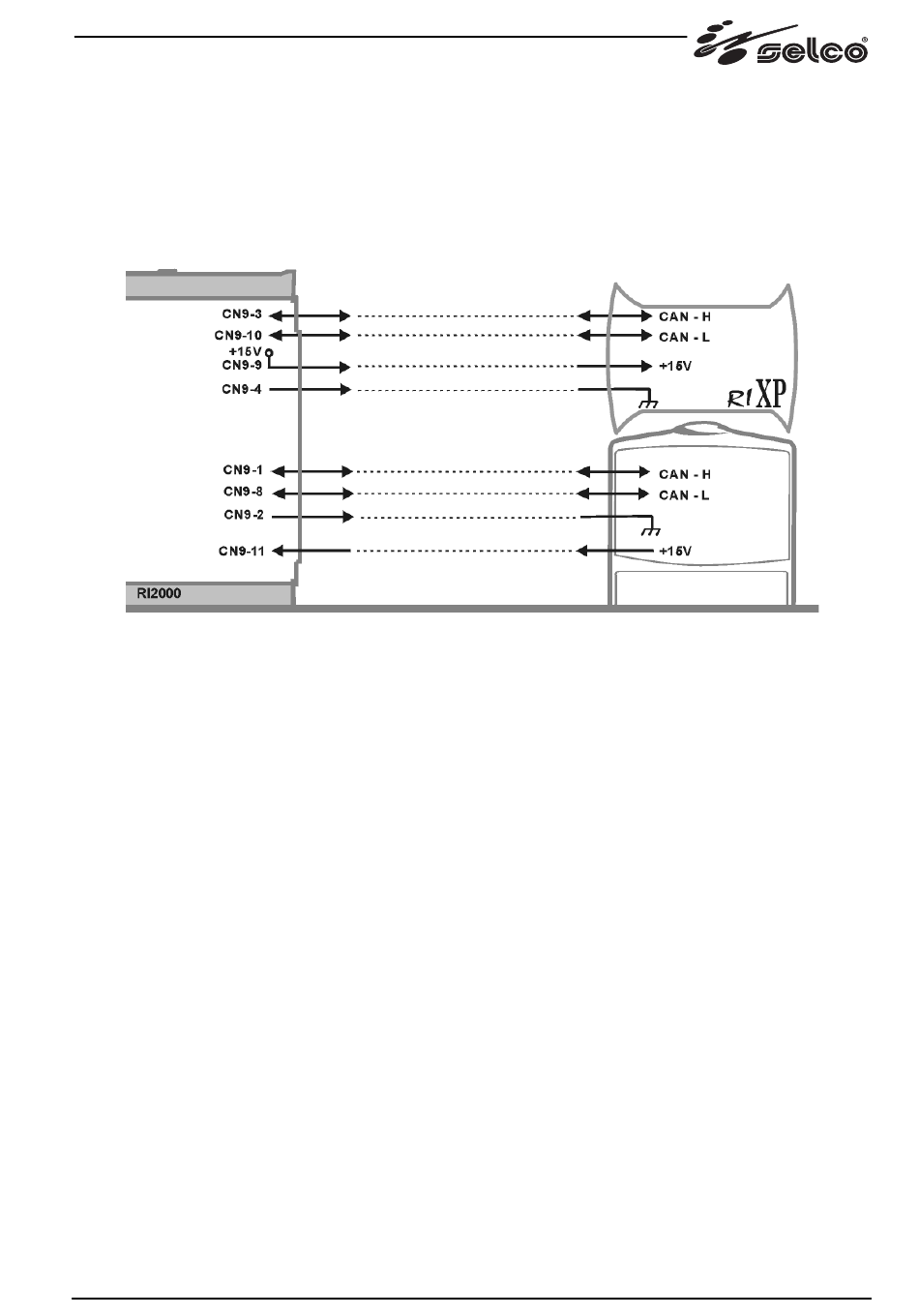

3.3 Communication with generator via CAN BUS (connector CN9)

CN9-1 WHITE wire
CN9-2 BLACK wire
CN9-3
CN9-4
CN9-8 BLUE wire
CN9-9 RED wire
CN9-10
CN9-11
CAN-H signal
Ground contact
CAN-H signal
Ground contact
CAN-L signal
+15V direct Voltage
CAN-L signal
+15V direct Voltage
