Product description
The ORX 1310-00 is an optical 4-way upstream receiver for light wave signals
at 1310 nm. It converts the optical signals into RF with an output frequency
range of 5 ... 204 MHz.
Scope of delivery
1 × optical transmitter OTX 51-00
2 × key for key lock switch
2 × connection cable 230 V
1 × quickstart guide
1 × safety instructions
Note: You can call up the detailed operation instructions for download by
entering the article in the search field at www.axing.com.
Mounting and Installation
Before mounting and installation, pull the mains plug!
Equipotential bonding
The device must be connected to the equipotential bonding according to
EN 60728-11.
Use the equipotential bonding connection attached to the device.
To connect the outer conductor of the coaxial cable to the equipotential
bonding, use e.g. QEW earthing angles at the inputs of the device.
Mounting in a 19" rack
For 19" rack mounting, there must be at least 5 cm clearance in front of and
behind the unit.
Slide the device into the 19" rack.
Fix the device with four screws.
RF installation
Terminate all unused coaxial connections.
Use highly shielded coaxial cables with F connectors. Suitable cables,
connectors and terminating resistors can be found at www.axing.com.
Optical installation
The overall input power of the optical receiver must not exceed 0 dBm.
Otherwise, the photodiode may be damaged.
The receiver has optical SC-APC connectors.
Use e.g. AXING cable OAK xx-03 to make connections between the
components.
Check the optical level of the signal with an optical meter before
connecting it.
If necessary, use optical attenuators (OZU xx-03) to adjust the level.
Power supply
Connect both power supply units to one socket each using the enclosed
cables.
Page 2 of 2 | AXING-QA_ORX-1310-00.pdf | 2024-01-25

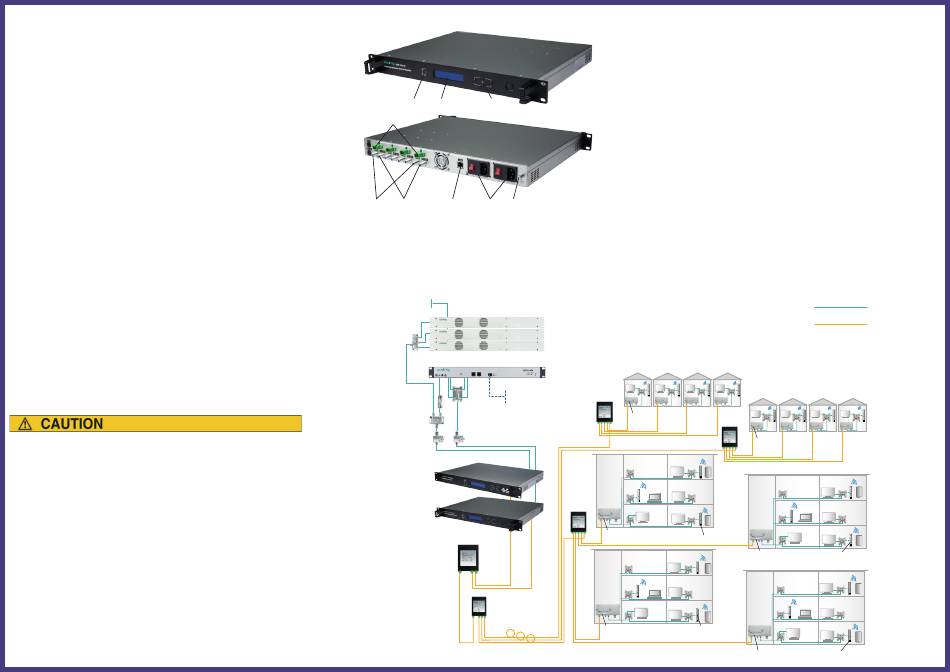

Display elements and connectors
1
2
3
4
5
6
7
8
1 = Status LEDs
7 = Ethernet interface (RJ45)
2 = Display
8 = Mains connections, on/off switch,
3 = Operating buttons
fuses
4 = Optical intputs (SC/APC)
9 = Equipotential bonding connection
5 = Output test ports (F female)
6 = RF inputs (F female)
DVB-S
BVE 3-01P
BZU 91-10
BVE 4-02P
BVE 2-01P
TZU 4-01
TZU 4-01
OTX 1550-10
ORX 1310-00
OMX 1513-01
OVE 3-03
Configuration:
The device is configured via the graphical user interface. To access the
user interface, you need a standard PC/laptop with a network interface, a
commercially available network cable and the actual version of the installed
web browser.
Accessing the configuration interface:
Connect the PC to the RJ-45 Ethernet connector.
Default IP address:
Subnet mask:
The configuration screen is password-protected:
Enter the default user admin and the default password Ramsen8262
(After the first log-in, the password should be changed).
9
3 x MK 16-00I
CMTS 1-00N/CMTS 2-00
TV
TV
TCP/IP
OVE 4-03
ONX 1550-01
TV
TV
OVE 4-03
TV
TV
ONX 1550-01
TV
TV
TV
TV
ONX 1550-01
Koax
Coax
Glasfaser
Fibre
TV
TV
TV
TV
TV
TV
OVE 4-03
ONX 1550-01
TV
TV
Cable modem
TV
TV
ONX 1550-01
Cable modem
TV
TV
Cable modem
TV
TV
Cable modem
ONX 1550-01
192.168.0.152
255.255.255.0
