• The pressure is blinking, press or to adjust the value, press "BARO" to confirm and quit;
if no button pressed, then after 20s it will be auto quit the setting and go to RF search.
Reception of the outdoor values
• The outdoor values of the outdoor transmitter will be transmitted to the receiver. The displays of the outdoor values are
flashing "--.-".
• On the display of the receiver appear the channel number, the outdoor temperature in °C (default).
• If receiver receive the signal,it will display the current temperature and humidity of transmitter in OUT position.
• If the reception of the outdoor values fails within three minutes, "- -"appears on the display. Check the batteries of the
transmitter and try it again. Check if there is any source of interference.
• You can also start the outdoor transmitter search manually later on (for example when the outdoor transmitter is lost or
the batteries are changed).
Hold the "CH" button on the receiver for three seconds, "---" blinking on the display.
• Press the "TX" button in the battery compartment of the outdoor transmitter.
• The device will receive the values from the outdoor transmitter.
• After successful installation close the battery compartment of the outdoor transmitter carefully.
Reception of the DCF frequency signal
• After the reception of the outdoor values, the device will now scan the DCF frequency signal and the DCF symbol will be
flashing on the display.
• Please note the back light will auto-off when scan the DCF signal, and also it will auto-on when after scan DCF signal.
• To avoid interference, the other buttons (except ) will no function during the reception of the radio controlled clock.
• When the time code is received successfully after 2-12 minutes, the radio-controlled time and the DCF symbol are
displayed steadily in the display. The other buttons are activated permanently.
• You can start the initialization manually.
• Press and hold the button for 3 seconds. The DCF symbol will be flashing.
• Interrupt the reception by pressing the button again. The DCF symbol disappears.
• The DCF reception always takes place hourly between 2:00 and 5:00 o'clock in the morning. If the reception is not
successfully received until 5:00 o'clock, the next receive operation is again at 2:00 o'clock in the morning.

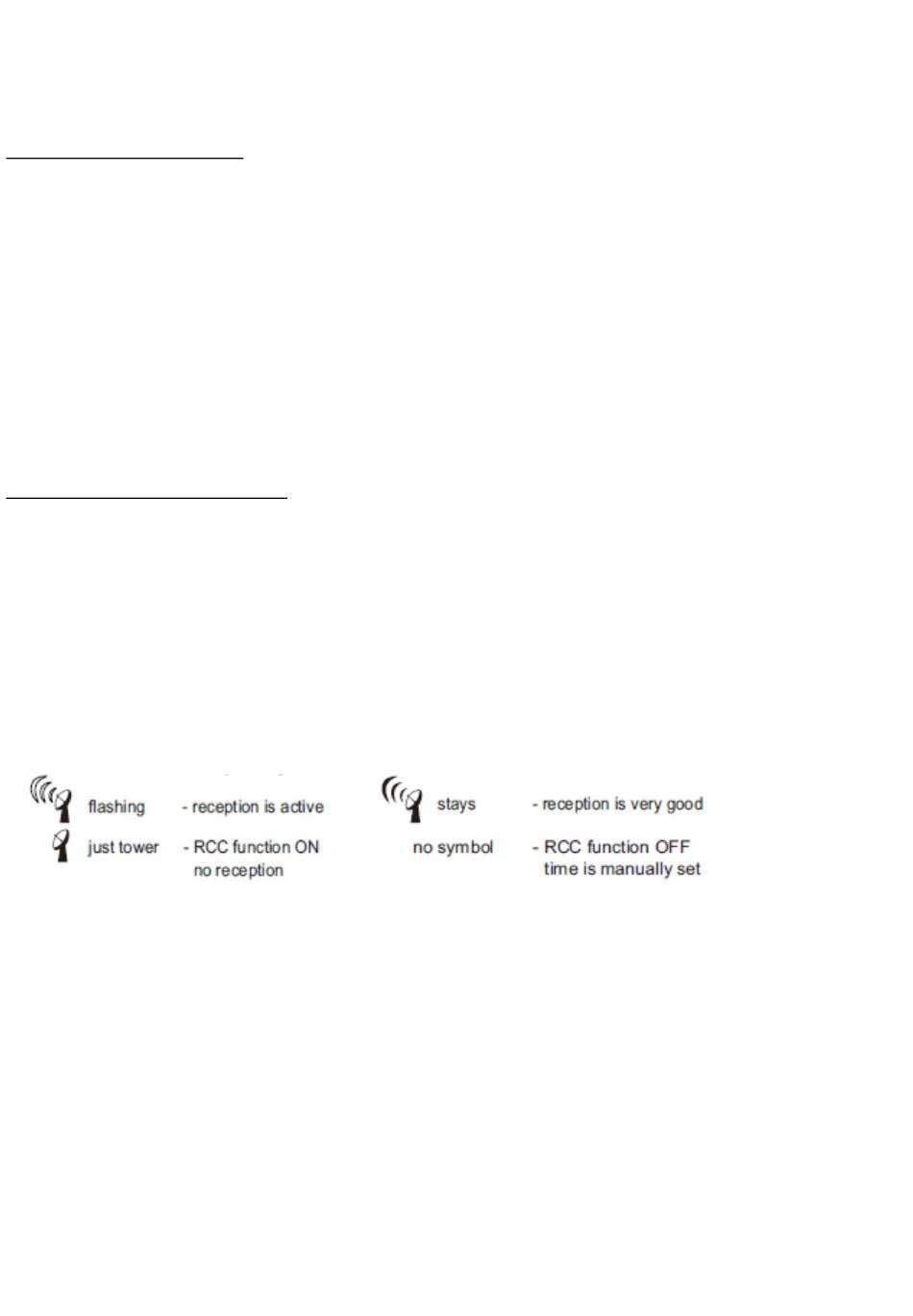

There are four different reception symbols:
If the clock cannot detect the DCF-signal (for example due to disturbances, transmitting distance, etc.),the time can be set
manually. The DCF symbol disappears and the clock will then work as a normal quartz clock.(see: Manual settings).
• If do not need DCF,it can turn off the function.(see:Manual settings).
The time base for the radio-controlled time is a caesium atomic clock operated by the Physikalisch Technische
Bundesanstalt Braunschweig.It has a time deviation of less than one second in one million years. The time is coded and
transmitted from Mainflingen near Frankfurt via frequency signal DCF-77 (77.5 kHz)and has a transmitting range of
approximately 1,500 km.Your radio-controlled clock receives this signal and converts it to show the precise time.
Changeover from summer time or winter time is automatic. In Daylight Saving Time "DST" is shown on the LCD. The quality
of the reception depends mainly on the geographic location. Normally there should be no reception problems within a
1,500 km radius around Frankfurt.
Note for radio-controlled time DCF
Please take note of the following:
• The recommended distance to any interfering sources like computer monitors or TV sets at least 1.5-2 meters.
• Inside ferro-concrete rooms (basements,superstructures),the received signal is naturally weakened.
In extreme cases, please place the unit close to a window to improve the reception.
