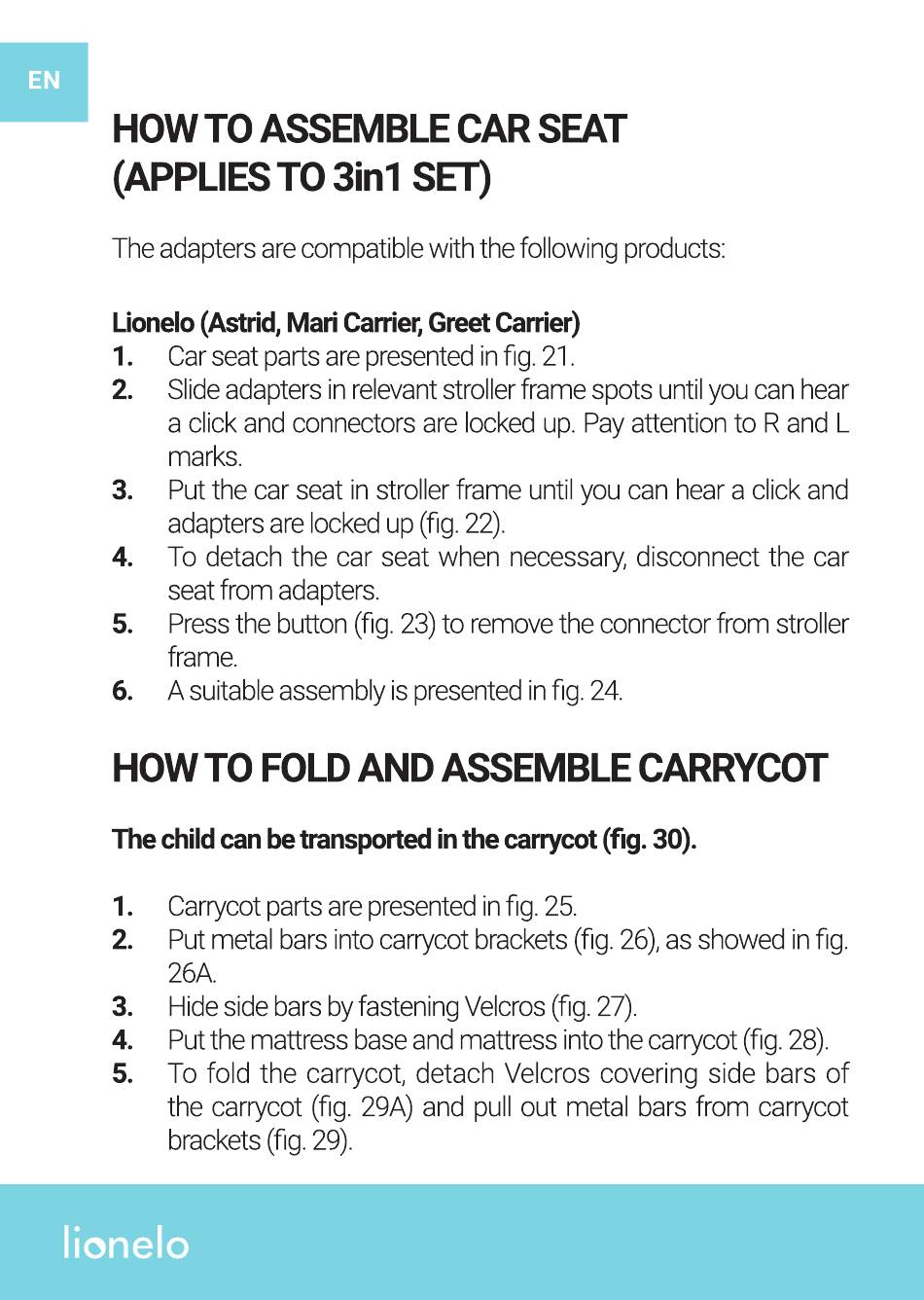

Lionelo Amber Bedienungsanleitung Seite 16

EN
HOW TO ASSEMBLE
(APPLIESTO3in1 SET)
The adapters are compatible with the fol owing products:
Lionelo (Astrid, Mari Carrier,Greet Carrier)
Car seat pans are presentedin fig. 21
1.
2. Slideadapters in relevantstroller frame spots until you can hear
a click and connectors are locked up. Pay attention to R and L
marks.
3. Put the car seat in stro ler frame until you can hear a click and
adapters are ocked up (fig. 22).
4. To detach the car seat when necessary, disconnect the car
seat from adapters.
Pressthe button(fig.23)to removethe connectorfrom stroller
5.
frame.
A suitable assemb y is presentedin fig. 24.
6.
HOW TO FOLD AND ASSEMBLE
The child can betransported in the carrycot (fig. 30).
Carrycot parts are presentedin flg. 25.
I.
Put metalbarsintocarrycotbrackets(fig.26),as showedinfig.
2.
26A.
Hide side bars by fastening Velcros (fig. 27).
3.
Putthe mattressbaseand mattressintothe carrycot(fig.28).
4.
To fold the carrycot, detach Velcros covering side bars of
5.
the carrycot (fig. 29A) and pull out metal bars from carrycot
brackets(fig.29).
