3.3.3. RS-232 TRANSMISSION
1. SETTING RS-232 STARTUP: During the startup procedure, press and hold [MODE] and [TARE]
until a beep sounds.
WARNING: Once the device enters weighing mode, it is not possible to start RS-232 settings.
a) Transmission method
• Press the [SET] button to select the transmission method:
A. "Stb" – when the balance is stabilized,
B. "Etb" – after pressing the [ENTER] button,
C. "Ser" – continuous transmission,
D. "CLOSE" – transmission disabled,

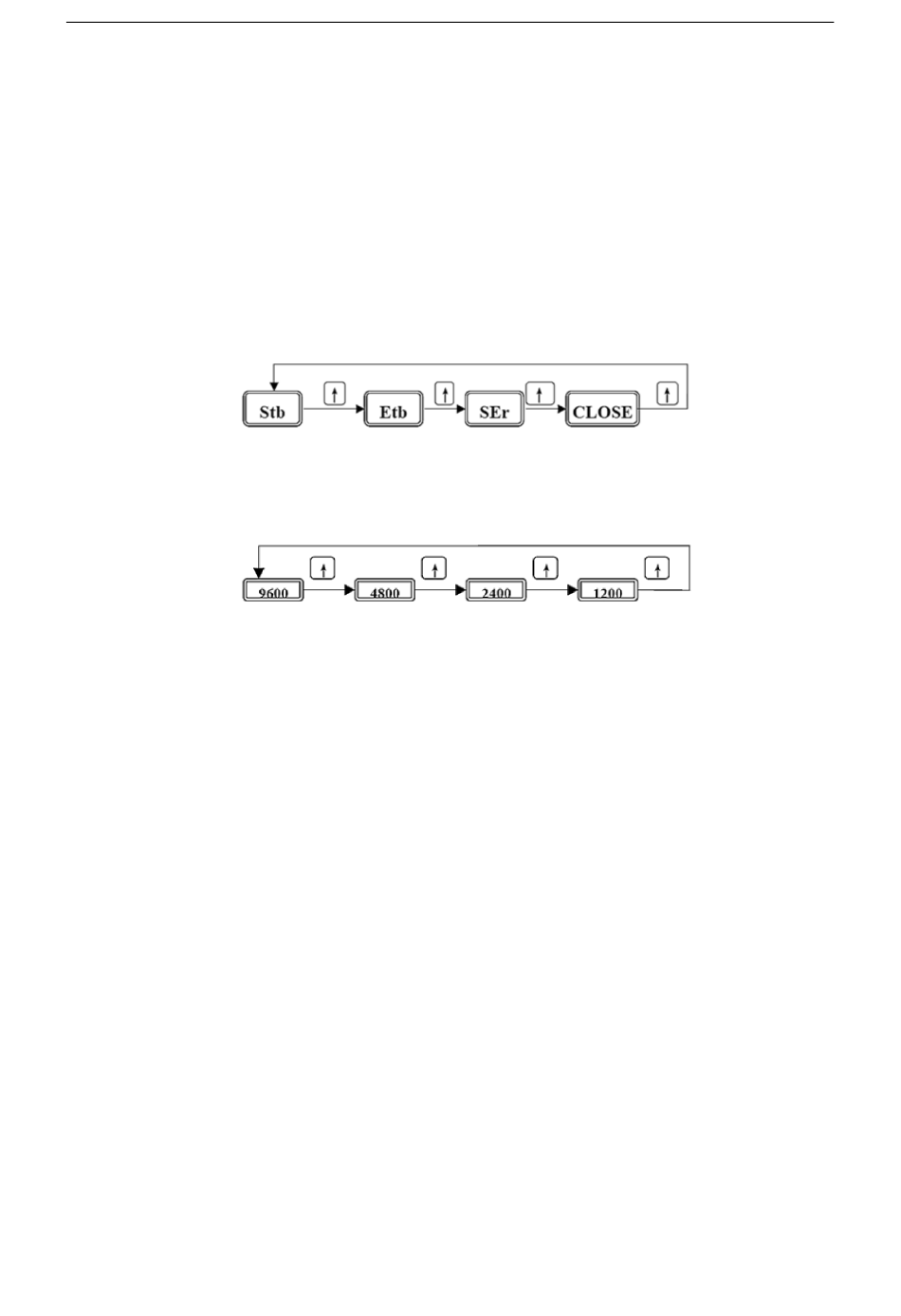

Press the [↑] button to change the current transmission method. The method is
•
selected in the following order:
Press [ENTER] to confirm the selection and move to the next settings menu.
•
b) Transmission speed
Press the [↑] button to select the transmission speed. The selection is made in the
•
following order:
• Press [ENTER] to confirm the selection.
2. RS-232 interface
a) The balance has a standard RS-232 UART signal, 10bit.
b) Data format:
1. D0 ~ D7 - 0FFH
•
• 2. D0 ~ D2 - decimal point
D3 ~ D4 - current mode: 00 (weighing), 01 (counting), 10 (percent)
D5 - 1 (negative weight), other (positive)
D6 - 1 (stable), other (unstable)
D7 - 2 (excessive weight), other (normal)
3. D0 ~ D7 - BCD1 (LSB)
•
4. D0 ~ D7 - BCD2 (MSB)
•
• 5. D0 ~ D7 - BCD3 (HSB)
• 6. D0 ~ D7 - weight units: kg, lb
3.3.4. DEVICE CALIBRATION
1. Starting Up and Self-Check:
• Turn on the device. During the self-check, simultaneously press "Enter" + "Cali."
• Once the display shows "xxxxxx" (indicating full capacity), press "↑" + "Enter" to enter
the password "090316". Then, press "Enter" to proceed.
2. Selecting the Unit:
On card 1, press "↑" (or 8) and then "Enter" to move to the decimal number selection.
•
3. Decimal Number Selection:
• When the display shows a dot followed by X (indicating decimal numbers available: 0,
1, 2, 3, 4), press "↑" to choose your preferred decimal setting and press "Enter" to
confirm.
4. Capacity Selection:
