Instrument Tour

3.1

Front View

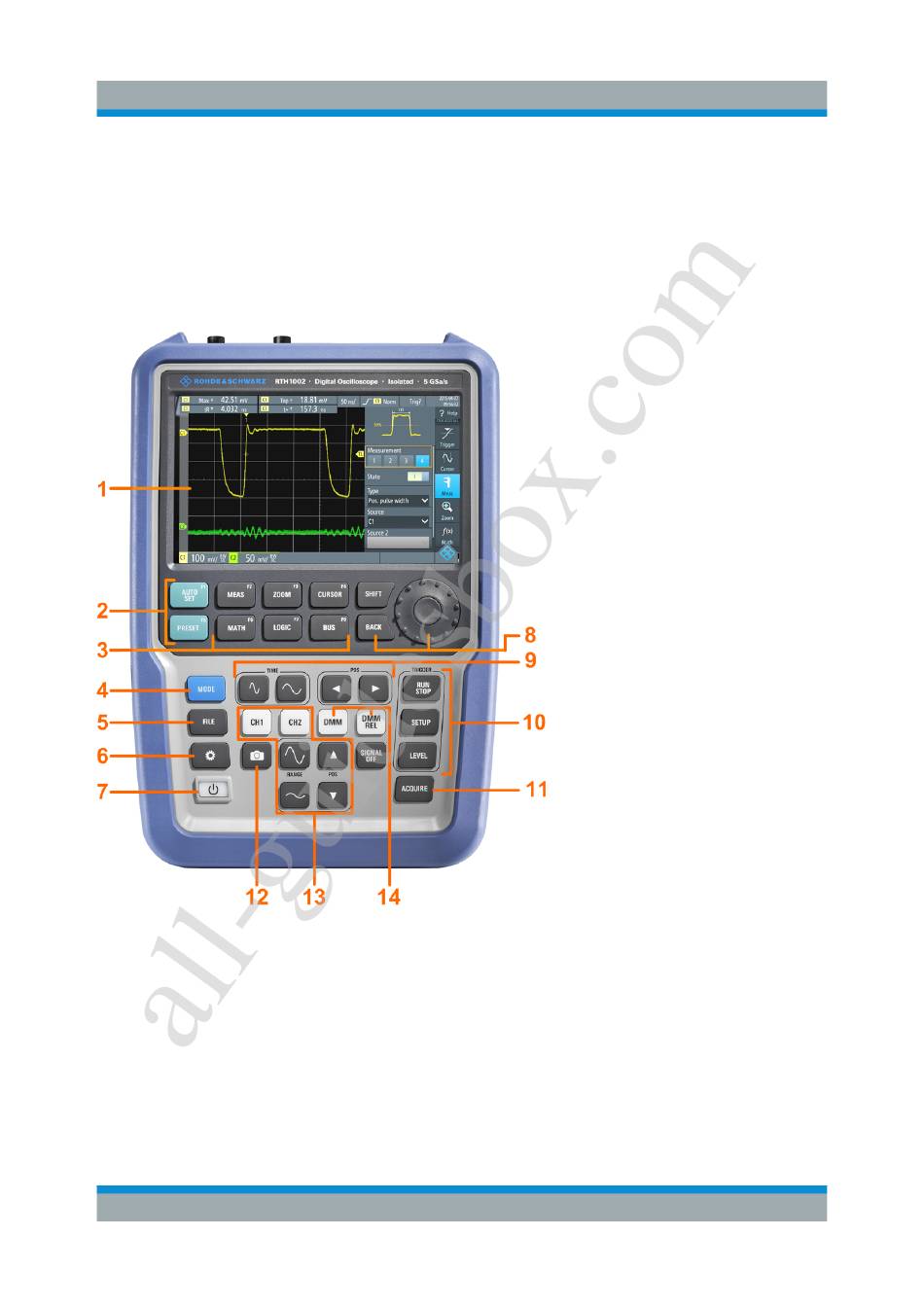

Figure 3-1: Front panel of the R&S RTH1002
1 = Touch display
2 = Waveform setup with AUTOSET, reset to default with PRESET
3 = Analysis functions
4 = Mode selection
5 = Save/Recall
6 = Instrument settings
7 = Power on/off
8 = Navigation controls
9 = Horizontal settings
10 = Run/stop acquisition and trigger settings
