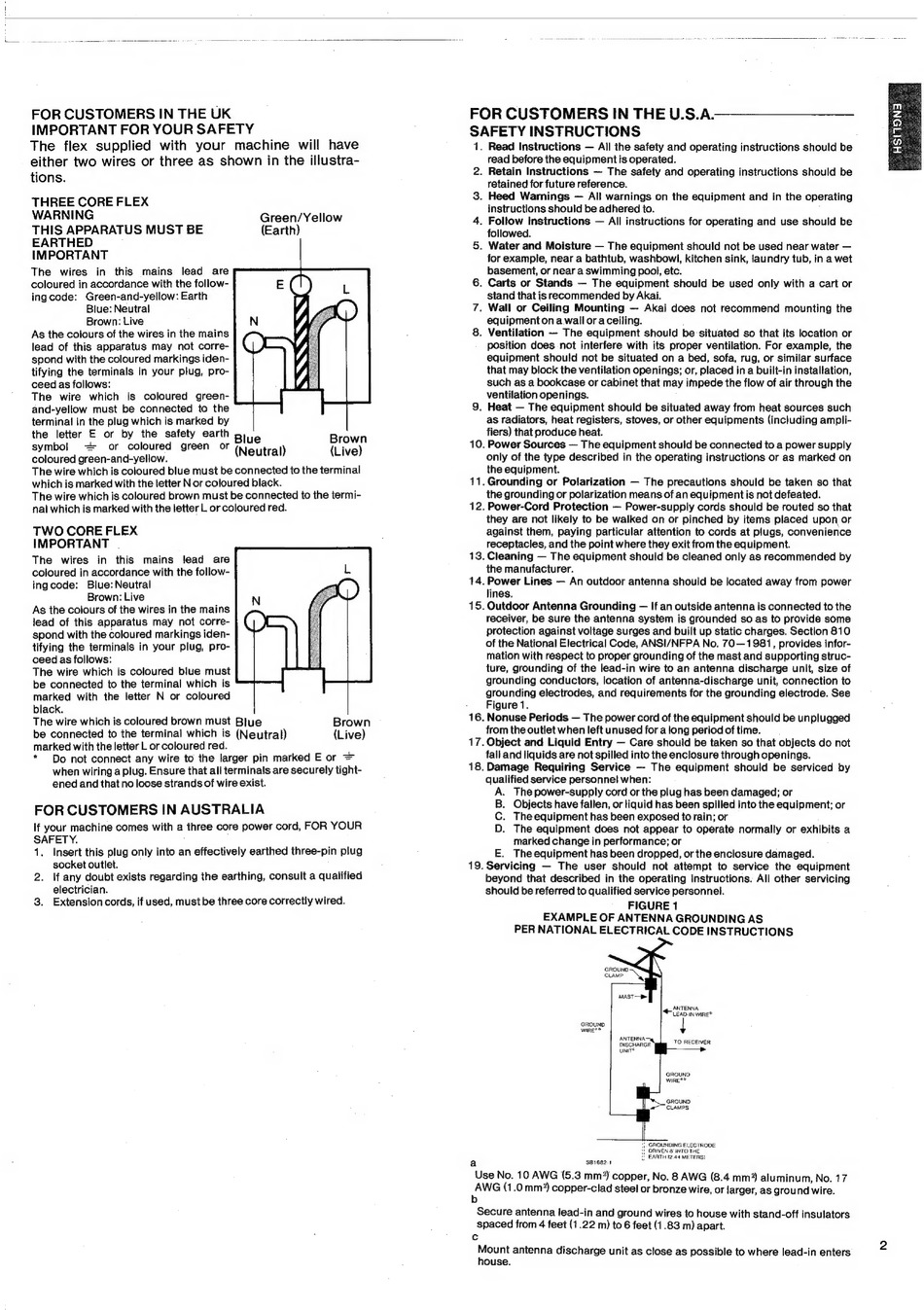

FOR CUSTOMERS IN THE UK
IMPORTANT FOR YOUR SAFETY
The
flex supplied
with
your
machine
will have
either two wires or three as shown in the illustra-
tions.
THREE CORE FLEX
WARNING
THIS APPARATUS MUST BE
EARTHED
IMPORTANT
The
wires
in this
mains
lead
are
coloured in accordance with the follow-
ingcode:
Green-and-yellow: Earth
Blue: Neutral
Brown: Live
As the colours of the wires in the mains
lead of this apparatus may not corre-
spond with the coloured markings iden-
tifying the terminals in your plug, pro-
ceed as follows:
The
wire
which
is coloured
green-
and-yellow
must be connected
to the
terminal in the plug which is marked by
the
letter E or by the
safety
earth
symbol
=
or
coloured
green
or (Neutral)
rbes
coloured green-and-yellow.
The wire which is coloured blue must be connected to the terminal
which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the termi-
nal which is marked with the letter L or coloured red.
TWO CORE FLEX
IMPORTANT
.
The
wires
in this
mains
lead
are
coloured in accordance with the follow-
ingcode:
Blue: Neutral
Brown: Live
As the colours of the wires in the mains
lead of this apparatus may not corre-
spond with the coloured markings iden-
tifying the terminals in your plug, pro-
ceed as follows:
The wire which is coloured blue must
be connected to the terminal which is
marked with the letter N or coloured
black.
The wire which is coloured brown must Blue
be connected to the terminal which is (Neutral)
marked with the letter L or coloured red.
*
Do not connect any wire to the larger pin marked E or a
when wiring a plug. Ensure that all terminals are securely tight-
ened and that no loose strands of wire exist.
FOR CUSTOMERS IN AUSTRALIA
If your machine comes with a three core power cord, FOR YOUR
SAFETY.
1.
Insert this plug only into an effectively earthed three-pin plug
socket outlet.
2.
If any doubt exists regarding the earthing, consult a qualified
electrician.
3.
Extension cords, if used, must be three core correctly wired.
Green/Yellow
(Earth)
Brown
(Live)
FOR CUSTOMERS IN THE U.S.A.
SAFETY INSTRUCTIONS
1. Read Instructions — All the safety and operating instructions should be
read before the equipment is operated.
2. Retain Instructions — The safety and operating instructions should be
retained for future reference.
3. Heed Warnings — All warnings on the equipment and in the operating
instructions should be adhered to.
4. Follow Instructions — All instructions for operating and use should be
followed.
5. Water and Moisture — The equipment should not be used near water —
for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet
basement, or near a swimming pool, etc.
6. Carts or Stands — The equipment should be used only with a cart or
stand that is recommended by Akai.
7. Wall or Ceiling Mounting
— Akai does not recommend
mounting the
equipment on a wall or a ceiling.
8. Ventilation — The equipment should be situated so that its location or
position does not interfere with its proper ventilation. For example, the
equipment should not be situated on a bed, sofa, rug, or similar surface
that may block the ventilation openings; or, placed in a built-in installation,
such as a bookcase or cabinet that may impede the flow of air through the
ventilation openings.
9. Heat — The equipment should be situated away from heat sources such
as radiators, heat registers, stoves, or other equipments (including ampli-
fiers) that produce heat.
10. Power Sources — The equipment should be connected to a power supply
only of the type described in the operating instructions or as marked on
the equipment.
11. Grounding or Polarization — The precautions should be taken so that
the grounding or polarization means of an equipment is not defeated.
12. Power-Cord Protection — Power-supply cords should be routed so that
they are not likely to be walked on or pinched by items placed upon or
against them, paying particular attention to cords at plugs, convenience
receptacles, and the point where they exit from the equipment.
13. Cleaning — The equipment should be cleaned only as recommended by
the manufacturer.
14. Power Lines — An outdoor antenna should be located away from power
lines.
15. Outdoor Antenna Grounding — If an outside antenna is connected to the
receiver, be sure the antenna system is grounded so as to provide some
protection against voltage surges and built up static charges. Section 810
of the National Electrical Code, ANSI/NFPA No. 70—1981,
provides infor-
mation with respect to proper grounding of the mast and supporting struc-
ture, grounding of the lead-in wire to an antenna discharge unit, size of
grounding conductors, location of antenna-discharge unit, connection to
grounding electrodes, and requirements for the grounding electrode. See
Figure 1.
16. Nonuse Periods — The power cord of the equipment should be unplugged
from the outlet when left unused for a long period of time.
17. Object and Liquid Entry — Care should be taken so that objects do not
fall and liquids are not spilled into the enclosure through openings.
18. Damage Requiring Service — The equipment should be serviced by
qualified service personnel when:
A. The power-supply cord or the plug has been damaged; or
B. Objects have fallen, or liquid has been spilled into the equipment; or
C. The equipment has been exposed to rain; or
D. The equipment does not appear to operate normally or exhibits a
marked change in performance; or
E. The equipment has been dropped, or the enclosure damaged.
19. Servicing
—
The
user should
not attempt to service the equipment
beyond that described in the operating instructions. All other servicing
should be referred to qualified service personnel.
FIGURE 1
EXAMPLE OF ANTENNA GROUNDING AS
PER NATIONAL ELECTRICAL CODE INSTRUCTIONS
GROUND
CLAMP
'A,
Les0.N wire?
GROUND
wine??
ANTENNA
DISCHARGE
TO RECEIVER
UNITS
GROUND
WIRE??
GROUND
CLAMPS
+. GROUNDING ELECTRODE
fi ORIVEN 8 INTO TH
EARTH (2.44 METERS)
a
SB1682-1
