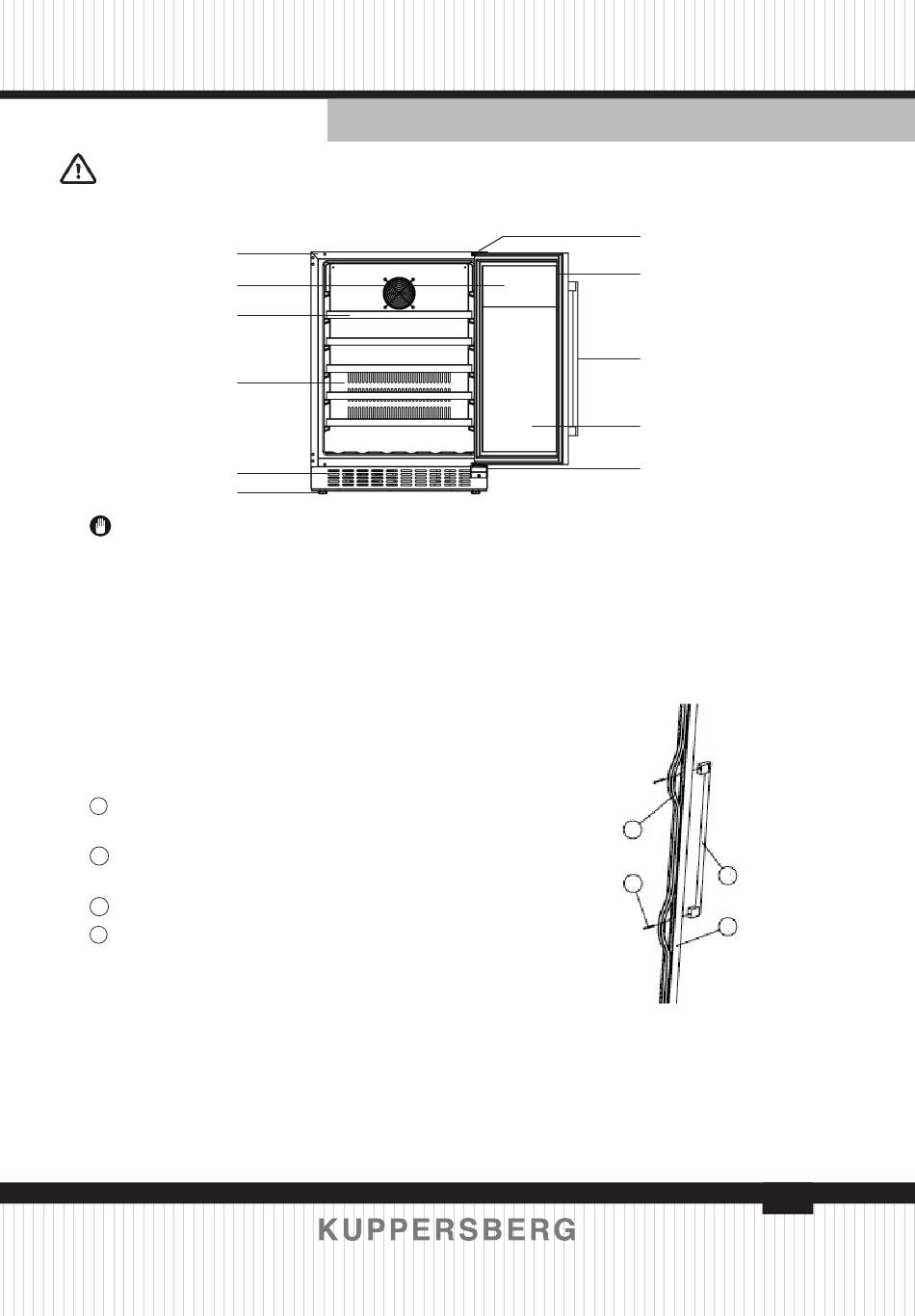

DESCRIPTION OF THE APPLIANCE

ACCESSORIES & NAME
1. Housing
2. Control panel
3. Shelf
4. Cover board
5. Grill
6. Adjustable foot
NOTE: Shelves, door frame, handle
and other accessories could be different
according to different models and config-
uration. All photos in this manual are for
INSTALLING THE HANDLE OF WINE
COOLER
The handle is delivered in a separated package
with screws together inside the carton.
Reveal two small holes on the door frame from
1
inner side by pulling out a bit the door seal.
Aim the handle to the holes and insert the
2
screws from inside.
Screw them up with screw-driver.
3
Put back door seal to cover the screws
4
TECHNICAL PASSPORT
reference. The appliance you buy might
not be exactly the same as shown here.
Please refer to the actual product.
