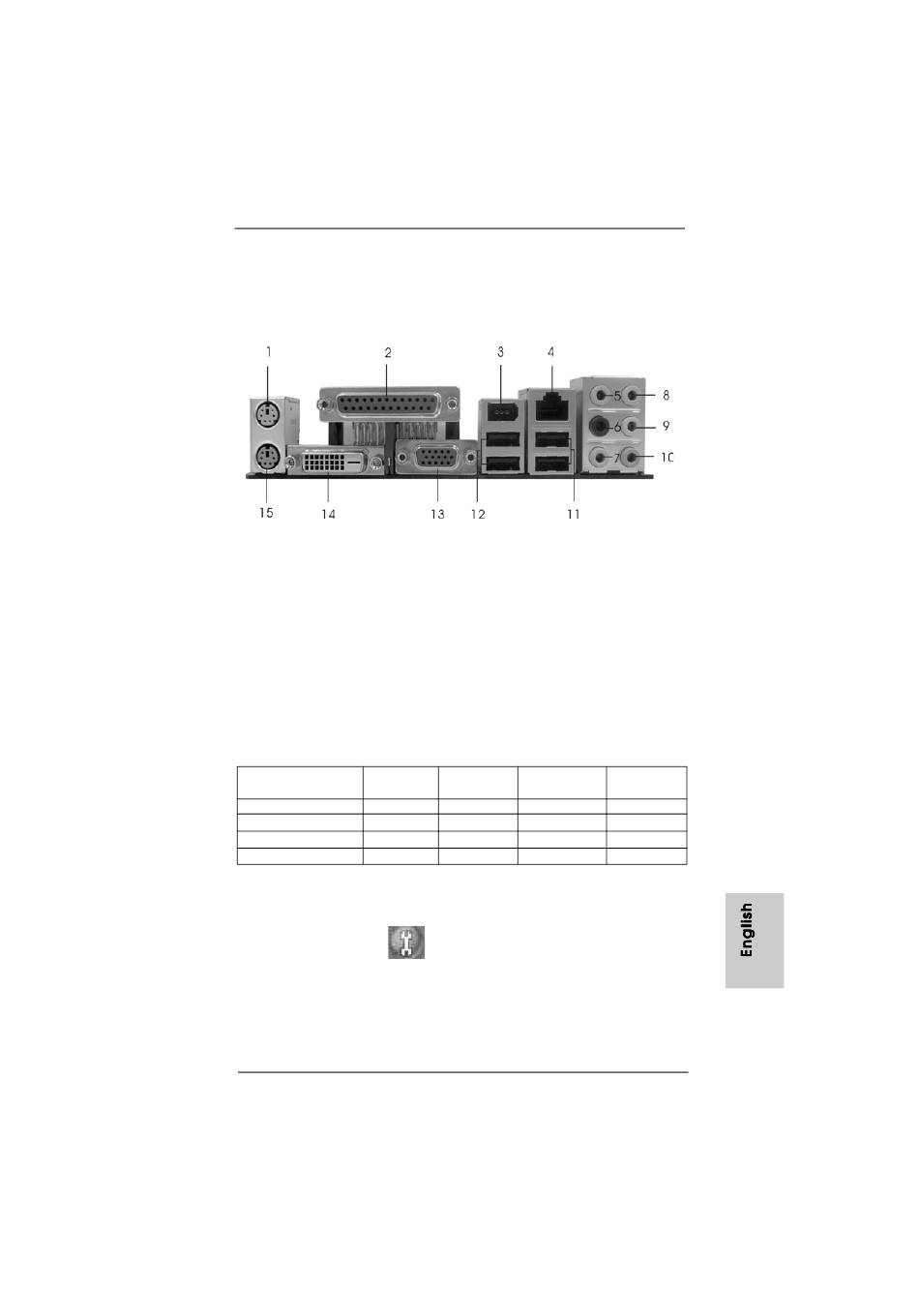

ASRock DVI_1394 I/O ASRock DVI_1394 I/O ASRock DVI_1394 I/O
ASRock DVI_1394 I/O ASRock DVI_1394 I/O
1 PS/2 Mouse Port (Green)
2 Parallel Port
3 IEEE 1394 Port
4 RJ-45 Port
5 Side Speaker (Gray)
6 Rear Speaker (Black)
7 Central / Bass (Orange)
8 Line In (Light Blue)
*
If you use 2-channel speaker, please connect the speaker's plug into "Front Speaker Jack". See
the table below for connection details in accordance with the type of speaker you use.
TABLE for Audio Output Connection
Audio Output Channels Front Speaker Rear Speaker
(No. 9)
2 V
4 V
6 V
8 V
*
To enable Multi-Streaming function, you need to connect a front panel audio cable to the front
panel audio header. After restarting your computer, you will find "Mixer" tool on your system.
Please select "Mixer ToolBox"
"ok". Choose "2CH", "4CH", "6CH", or "8CH" and then you are allowed to select "Realtek HDA
Primary output" to use Rear Speaker, Central/Bass, and Front Speaker, or select "Realtek HDA
Audio 2nd output" to use front panel audio.
ASRock ALiveNF7G-HDready
* 9 Front Speaker (Lime)
10 Microphone (Pink)
11 USB 2.0 Ports (USB01)
12 USB 2.0 Ports (USB23)
13 VGA/D-Sub Port
14 VGA/DVI-D Port
15 PS/2 Keyboard Port (Purple)
Central / Bass
(No. 6) (No. 7)
-- --
V --
V V
V V
, click "Enable playback multi-streaming", and click
Motherboard
Side Speaker
(No. 5)
--
--
--
V
