Amy 1 RS100 io
▪ By fixing it with double-sided tape (provided with the product).
▪ By fixing it with screws (on the wall or in a flush-mounted box).

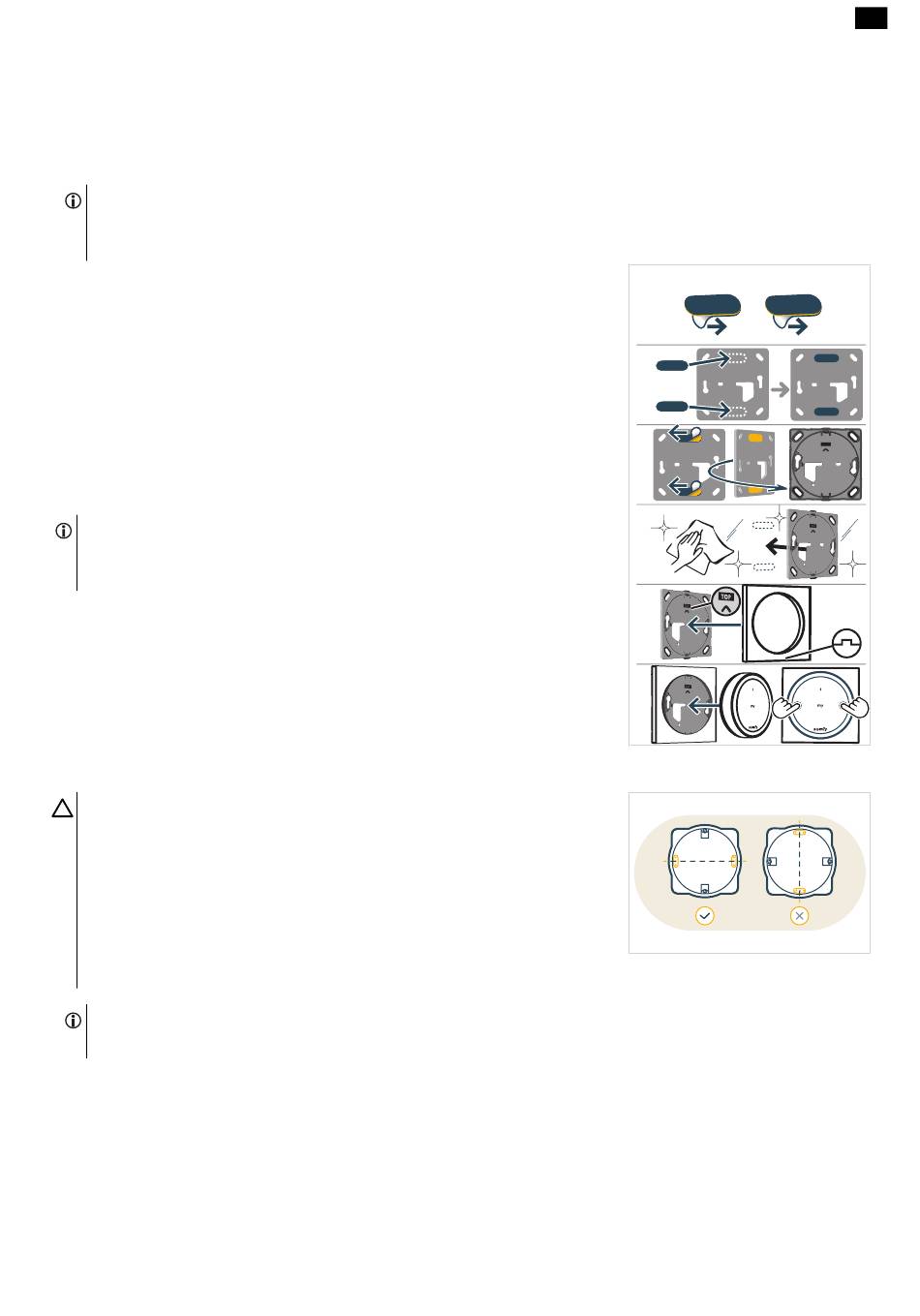

2.5.1.Wall mounting with mounting plate and square frame
2.5.1.1. Using double-sided tape
NOTICE
The product is designed to be fixed to most wall surfaces, such as paint, wallpaper, earthenware, wood, varnished
wood, primer/coating. However the walls must be flat and clean.
1] Remove the protective films from the double-sided tapes.
2] Take the provided black mounting plate and stick the double-sided tape on its
back.
3] Remove the second protective films from the double-sided tapes already
sticked.
4] Following the orientation indicated on the front part of the black mounting
plate, press it on a flat, clean, and dry surface. Make sure it is firmly fastened
to the surface.
5] First clip the square frame onto the black mounting plate.
NOTICE
Make sure Amy 1 RS100 io is switched on before clipping the module (refer to
Switching on Amy 1 RS100 io).
6] Clip the Amy 1 RS100 io module onto the black mounting plate. Press firmly
on the front of the module, on the right and left near the my button as close
as possible to the translucent circle without pressing on the edges of the
module (to avoid unwanted radio transmission), until it clicks into place.
2.5.1.2. Using screws
CAUTION
• Do not use an electric screwdriver.
• The order of assembly must be followed to ensure that the parts fit together
correctly and don't get damaged.
• To fix the black mounting plate on a flush-mounted box, the 2 screw holes of
the flush-mounted box must be horizontal and not vertical.
• In case of wrong mounting, use a cover plate to hide the box and fix with
double tape.
NOTICE
To fix the black mounting plate directly on the wall, use either the 2 horizontal holes, or the 4 holes in each corner.
©
