EDIFIER QR30 Bedienungsanleitung

EN EN
1. EDIFIER ConneX app 1. Mobile app and computer app
EDIFIER ConneX app
https://www.edifier.com/PC.html
●
With the mobile app or the computer app, you can
•Switch EQs,
•Select or customize light effects,
•Upgrade the firmware, and
•More functions.
●
EDIFIER ConneX mobile app
1. With your smart device, scan the QR code on the quick start guide or the packaging.
•You can also search for "EDIFIER ConneX" in Apple App Store (iOS devices) or
Google Play (Android devices).
2. Download and install the app.
3. Connect your smart device with the speaker via Bluetooth.
4. In Bluetooth mode, open EDIFIER ConneX App on your smart device.
5. Tap the menu for settings and playback control.
Note: The BLE connection between your smart device and the speaker remains
active when the speaker is switched to USB/AUX mode.
●
EDIFIER TempoHub computer application
1. Access the link below to open the download page.
https://www.edifier.com/PC.html
2. Download and install the application on your computer.
Note: The following operating systems are supported: Windows 11, Windows 10,
and MacOS 10.15 or later versions.
2. What's in the box?
Quick start guide
Note:
•Images are for illustrative purpose only and may differ from the actual product.
•The bundled USB connecting cable is for audio streaming only. Do not use it
for device charging.
•For the need of technical improvement and system upgrade, information and
specifications contained herein may be slightly different from actual product.
If any difference is found, the actual product prevails.
3. Cable connection
*
Note:
* Power input: 100-240 V~ 50/60 Hz 300 mA
* This plug type is meant for illustration purpose only.
•When using the included USB cable, connect the USB connector near the
ferrite bead to the USB port on the speaker.
4. Power on/off
Press and hold the "
5. Source selection
Input
Indicator
6. Bluetooth connection
Note:
•Pin code for connection is "0000" if needed.
•To enjoy all Bluetooth functions of this product, make sure that your audio
source device supports A2DP and AVRCP profiles.
•If no device is connected in 10 minutes, the speaker will switch to Bluetooth
hidden mode. The blue indicator will blink slowly. In this mode, (1) new devices
cannot find the speaker, but (2) for a device that exists in the pairing record of
this speaker, you can select "EDIFIER QR30" from its Bluetooth device list to
reconnect. To exit from Bluetooth hidden mode, press any button or knob on
the speaker.
•To disconnect from the current Bluetooth device, press and hold the "
button for 1.5 seconds.
7. USB connection
Note:
The following operating systems support USB audio streaming: Windows 11,
Windows 10, Windows 8, and Windows 7.
8. Play control
MODE
Note:
In AUX and USB modes, volume sync is not supported. To adjust the volume,
adjust on the speaker and your device separately.
9. Light effects
Note:
12 preset light effects are optional. You can assign the "
speaker with 2 to 6 light effects in EDIFIER ConneX mobile app or EDIFIER
TempoHub computer application.
10. Specifications
Total output power (RMS): 15 W + 15 W
Frequency response: 63 Hz-20 kHz
Declaration for EU
Frequency Band: 2.402GHz ~ 2.480GHz
RF Power Output: ≤ 10 dBm (EIRP)
There is no restriction of use.
11. Troubleshooting
Cannot connect to your Bluetooth device
• Make sure that the distance between this product and your Bluetooth device
is less than 10 meters and there are no obstacles between them.
• Make sure that no device is connected to this product via Bluetooth.
• Make sure that this product is in Bluetooth pairing mode. If not, manually
switch it to this mode.
• Restart this product, enable Bluetooth function on your Bluetooth device,
and then try again.
No power
• Make sure that the power cable is properly connected.
• Make sure that the power supply is not disconnected.
No sound
• Make sure that this product is powered on.
• Make sure that this product and your device is properly connected.
• Make sure that the playback is not paused.
• Make sure that this product and your device are not muted.
• Increase the volume of this product and your device.
Noise coming from speakers
• EDIFIER speakers generate little noise, while the background noise of some
audio devices are too high. Please unplug audio cables and turn the volume
up. If no sound can be heard at 1 meter away from the speaker, there is no
problem with this product.
To learn more about EDIFIER, please visit www.edifier.com
For EDIFIER warranty queries, please visit the relevant country page on
www.edifier.com and review the section titled Warranty Terms.
USA and Canada: service@edifier.ca
South America: Please visit www.edifier.com (English) or
www.edifierla.com (Spanish/Portuguese) for local contact information.

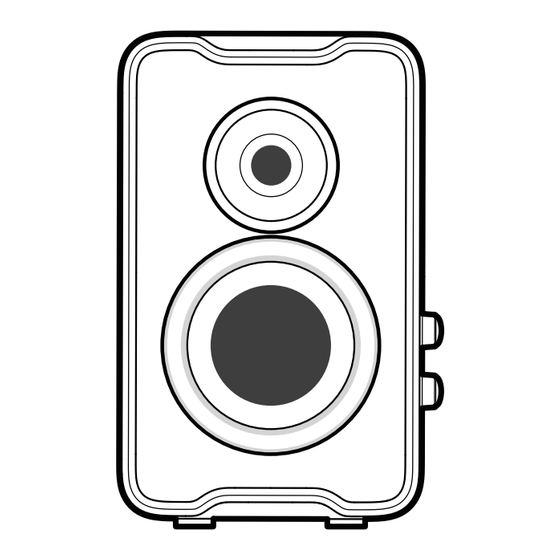

Q R3 0
Multimedia Speaker
EDIFIER TempoHub
Passive speaker
USB connecting cable
" button for 1.5 seconds to power on/off the product.
USB
Blue Red
Settings
Bluetooth
DEVICES
EDIFIER QR30
Manual
Power cable
Important safety instructions
USB
AUX
AUX
Green
2:12
Bluetooth
USB
AUX
USB AUX
Active speaker
ON
MODE
EDIFIER QR30
" button on the
1.5s
OFF
1.5s
x1
"
x1
x1
