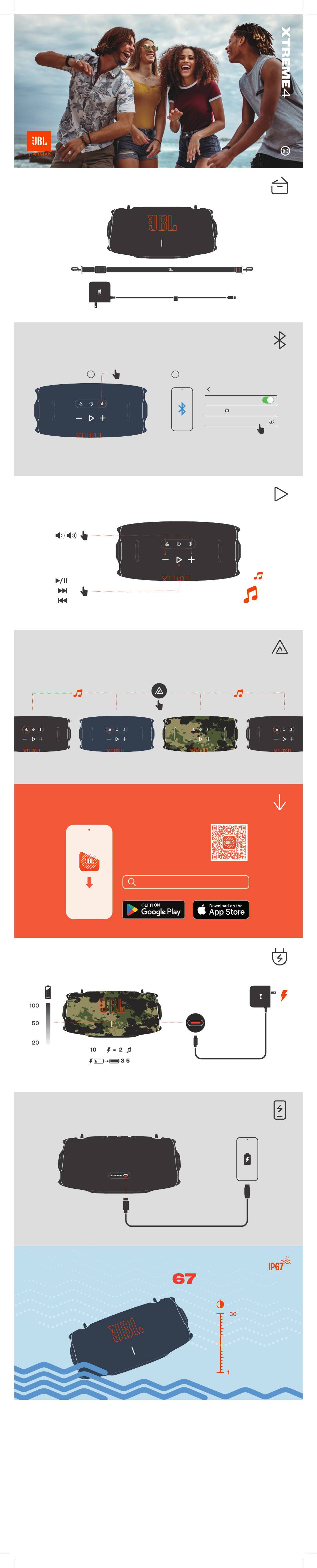

Harman JBL XTREME 4 Schnellstartanleitung

QUICK
START
GUIDE

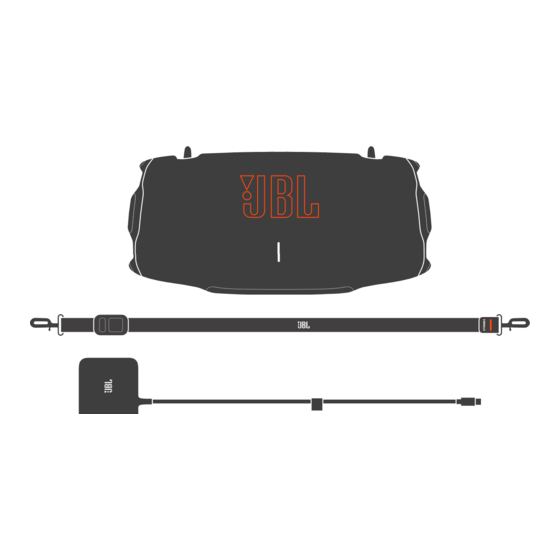

WHAT'S IN THE BOX
BLUETOOTH PAIRING
PLA Y
x1
x2
x3
MULTI-SPEAKER
CONNECTION
APP
CHARGING
%
%
%
POWERBANK
WATERPROOF
DUSTPROOF IP
TECH SPEC
Transducers: 2 x 70 mm woofer / 2 x 2.75'' ,
2 x 20 mm tweeter/ 2 x 0.75"
2 x 30 W RMS woofer +
Output power:
2 x 20 W RMS tweeter (AC power mode)
2 x 20 W RMS woofer +
2 x 15W RMS tweeter (Battery mode)
5 V / 9 V / 12 V / 15 V / 20 V, 3 A
Power input:
Frequency response: 45 Hz - 20 kHz
> 80 dB
Signal-to-noise ratio:
Battery type: Li-ion polymer 68 Wh (equivalent to 7.2 V / 9444 mAh)
3.5 hours (20 V / 3 A)
Battery charge time:
up to 24 hours (dependent on volume level
Music play time:
and audio content)
USB-C (in / out)
Connection ports:
PD adaptor (plug type varies by region)
Cable type:
PA_JBL_Xtreme 4_QSG_Global_SOP_V10.indd 1 PA_JBL_Xtreme 4_QSG_Global_SOP_V10.indd 1
* Plug types vary by regions.
* Plug types vary by regions.
1
x1
Use the JBL PORTABLE app for
speaker configuration and
software upgrade.
JBL PORTABLE
MIN H
.
H
2
Settings
Bluetooth
DEVICES
JBL Xtreme 4
ON
Now Discoverable
Cable length:
USB-C charge out:
Bluetooth® version:
Bluetooth® profile:
Bluetooth® transmitter modulation:
Bluetooth® transmitter frequency range: 2400 MHz - 2483.5 MHz
Bluetooth® transmitter power:
2.4GHz SRD frequency range:
SRD transmitter power:
Product dimensions (W x H x D):
Net weight:
Packaging dimensions (W x H x D):
Gross weight:
Maximum operation temperature:
Bluetooth
Connected
MINS
M
1500mm / 59"
5V / 3A, 9V / 2A, 11V / 2A
5.3
A2DP 1.4, AVRCP 1.6
GFSK, π/4 DQPSK, 8DPSK
< 15 dBm (EIRP)
2407 MHz ~ 2475 MHz
< 15 dBm (EIRP)
297 x 149 x 141 mm / 11.69" x 5.87" x 5.55"
2.1 kg / 4.63 lbs
325 x 218 x 173 mm / 12.8" x 8.6" x 6.9"
3.27 kg / 7.2 lbs
45 °C
