The RLWS8AL V2 is a micro controller based airflow monitor which watches gaseous flows from 0.5m/s to
10/30m/s. It provides a 4-20mA as well as a 0-10V-DC output. Also it provides a 0-10V-DC output based on the
temperature.
Technical Data:
Type RLSW8AL V2 LCD
Art. No.
supply voltage
supply voltage tolerance
surge category
supply voltage signal
power consumption
ambient temperature
flow voltage output 0..10V (Ra=10kOhm), linear
flow current output 4..20mA (Ra=0.2kOhm), linear
flow temperature output 0..10V (Ra=10kOhm), linear
measurement error +-5% of measuerment range
relays output break contact, opens at flow
function at flow switch point set with potentiometer switch point set with potentiometer
transistor output open collector, isolator at flow
reproduceablity of measurement
values
media temperature
temperature gradient
switch point set by potentiometer
measurement range standard
measurement range max
volume flow max
volume flow max
sensor type
immersion deptch*
process connection
sensor material MS58, nickel plated
pressure resistance
protection class, case
protection calss, sensor
pollution class
electrical connection 9/10 clamp, max 1.5mm²
case dimensions L=56mm; W=84mm; H=82mm
compliance
Accessory
Reference terms and conditions: Inlet way > 10xDN, outlet way > 5DN laminar flow: ait at 0°C and 1.013bar.
Cable length with separate sensor is 2.5m.
*Different immersions depths are available (50/130/165mm). High temperature sensors (up to 350°C) are also
available.
RLSW8AL V2 LCD M8
81530 81530M8
24VDC 24VDC
+-5% +-5%
|| ||
green LED green LED
4AV 4VA
-20..+60°C -20..+60°C
0..10V (Ra=10kOhm), linear
4..20mA (Ra=0.2kOhm), linear
0..10V (Ra=10kOhm), linear
+-5% of measuerment range
break contact, opens at flow
open collector, isolator at flow
+-2% +-2%
-50..80°C -25..+80°C, optional +250°C
30K/min 30K/min
set by potentiometer
0.1 .. 10m/s 0.1 .. 10m/s
0.1 .. 30m/s 0.1 .. 25m/s
49100m³/h 49100m³/h
49100l/min 49100l/min
mounted seperate
approx. 130mm approx. 130mm
M16x1.5; flange M16x1.5; flange
MS58, nickel plated
10bar 10bar
IP65 IP65
IP54 IP54
|| ||
9/10 clamp, max 1.5mm²
L=56mm; W=84mm; H=82mm
- -
flange flange
Terms of installation:
To avoid malfunction you need to follow these facts:
- the sensors tip need to be mounted in the middle of the duct
- the sensor elements need to be fully circulated around by the media
- the mark on the sensor needs to be exactly fronted to the flow
- in vertical tube the flow directions might be upwards
- maintain 5xD of free inlet way and 3xD of outlet way
- the sensor is to be mounted only with its hexagonal bolt
- the flow monitor is independent of its mounting position
Attention:
Sensor and monitoring device are calibrated to each other! Change of one part leads to
malfunction! The cable's length may not be changed. If you need longer or shorter cable lengths
feel free to ask our consultant.
Cleaning the sensor:
The airflow sensor contains a sensor element which is sensitivity to mechanical loading and which must not be
touched with hard and pointed objects. Any cleaning that may be necessary is possible in water (also with addition of
detergents). Let the unit drip off and dry renewed start-up.
Electrical connection:
1 2 3 4
| | | |
24V DC 10V Temp -20mA Flow
Ground 10V Flow

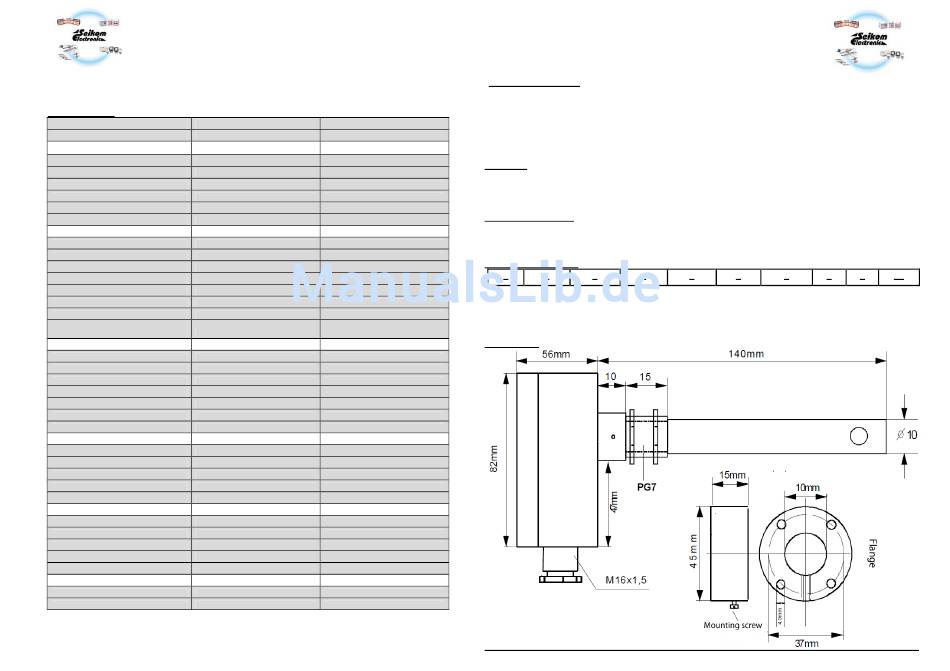

Dimensions:
5 6 7 8 9
| | | | |
Alarm OC Relay
+20mA Flow Relay
10
|
Relay
