Connection and commissioning must be performed by properly authorized and qualified personnel!
Connection to mains supply (L, N) must be made by means of a protected isolating switch with the usual
fuses. As a matter of principle, the General VDE Regulations must be complied with (VDE 0100, VDE 0113,
VDE 0160).
Commissioning of RLSW8AL V2 LCD and RLSW8AL V2 M8
Installing and setting up the unit pay attention to the following points:
•
Install the unit mechanically and electrically as described in this manual
•
Turn on supply voltage; green LED enlightens; wait for the delay time being elapsed (time is shown on
the display); yellow LED enlightens; turn on air flow
•
Output current and –voltage are set automatically relative to the airflow
•
For LCD-models: Set up the parameters suiting to your installation (refer to "programming the RLSW8AL
V2 LCD)
•
Set potentiometer "Alarm Set" to work flow
•
The relays-outputs 8/9 and the transistor output 7 are opened at work flow
•
Turn of the work flow
work flow >= switching point
signal output switched
work flow < switching point
signal output not swtiched
•
Output signal drops, relays output releases
•
Turn on work flow
•
Air flow monitor is now operational
What to do if flow monitor does not operate properly:
Problem
Cause
green LED darkened
wrong or wrongly connected suply voltage
no recognition of flow
wrong or wrongly installed sensor
sensor show abnormal sensitivity
sensor is polluted
Accessories:
Reducers:
Atr.-No.: 80399 – G1/2" to PG7
Art.-No.: 80402 – M20x1.5 to PG7
Art.-No.: 80403 – M15x1.5 to PG7
Plastic flange:
Art.-No.: 79781 – 10mm
Attention!!
red LED right of blinking red LED of the LED-chain
glows
●●●●☼●○○○○
red LED left of blinking red LED is darkened
●●●○☼○○○○○
Sollution
check supply voltage
check sensor installation and
sensor number
clean sensor (refer to "cleaning the
sensor"!)

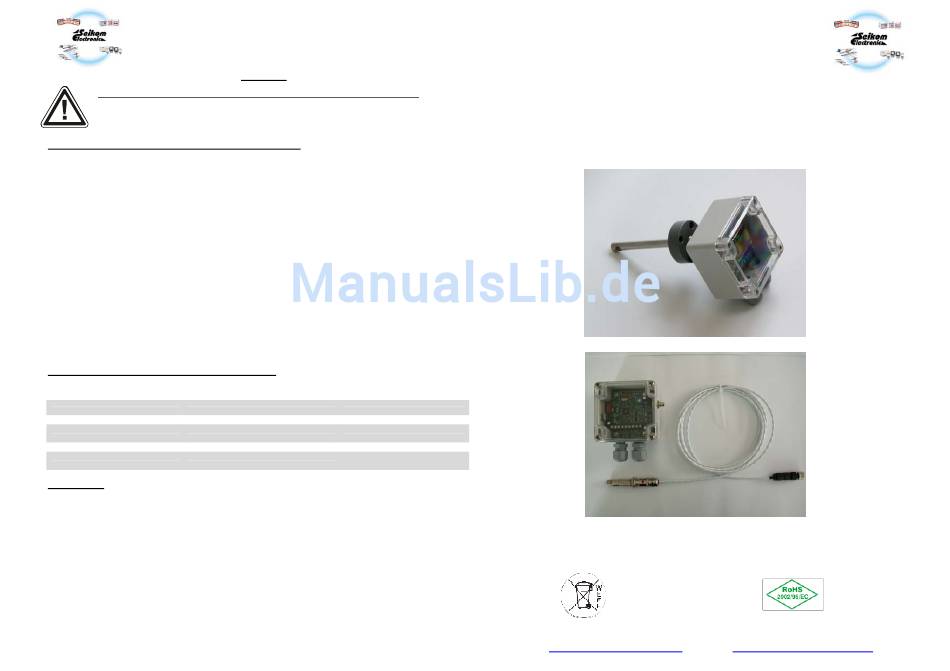

Airflow monitor
Airflow monitor/Volume flow monitor
RLSW8AL V2 LCD + RLSW8AL V2 M8
Our products correspond to the requirements of the European guidelines.
WEE Electrical and electronics of old devices2002/96/EG
Of 01.08.2005
SEIKOM-Electronic GmbH & Co. KG♦Fortunastr. 20♦D-42489 Wülfrath♦
♦Telefon: +49(0) 20 58/20 44 o. 20 45 ♦ Fax: +49(0) 20 58 / 79 111♦
♦E-Mail:
Seikom-Electronic@t-online.de
Manual
RoHS 2002/95/EG
of 01.07.2006
♦ Internet:
http://www.Seikom-Electronic.de
