KSIX Explorer Benutzerhandbuch

ENGLISH - USER MANUAL
KSIX Explorer Smartwatch - BXSW26N
1. Characteristics
1.1 Technical specifications
Display: 1,43" AMOLED multi-touch 466 x 466
Battery: 450 mAh
Voltage frequency: 5V/ 500KHZ
Frequency range: 2400-2500 GHz
Maximum transmitted power in frequency ranges: +9 dBm
Compatibility: Android 6.0 / iOS 9.0 and later versions
App: Smart time PRO & KSIX app
Housing material: Zinc alloy + PC+ABS
Display material: Tempered glass
Strap material: Silicone
Protection rating: 5ATM
Watch dimensions: 5.5 x 5.670 x 1.6 cm
Strap width: 22 mm
Wrist closure diameter: 20 to 25.5 cm
Weight: 42.3 g
Autonomy: Up to 8-9 days in normal use.
Charging time: 4 hours
Languages: English; Spanish; Chinese; Arabic; Portuguese;
German; French; Dutch; Polish; Czech; Hungarian; Slovak;
Danish; Norwegian; Finnish; Swedish; Greek; Ukrainian;
Russian; Romanian.
1.2 In the box
1 x Smartwatch
1 x USB-A magnetic charging base (80 cm)
1 x User manual

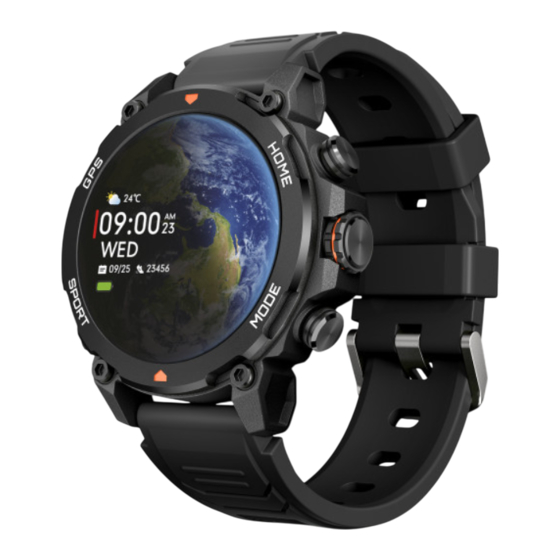

1.3 Product details
1. Home button
2. Dial button
3. Mode button
1.4 How to attach and remove the straps
The straps of the Explorer are interchangeable. The shorter
strap must be placed in the display's top slot, while the
longer strap must be placed in the display's bottom slot.
Otherwise, the insertion system may be irreparably
damaged.
1. To remove a strap: Hold the strap, slide the small metal
piece and carefully pull out the strap.
2. To attach a strap: Hold the strap and insert the metal piece
on one end. Then, slide the metal piece on the other end and
insert the end of the strap so that when you let go of the
metal piece it fits into the hole.
4. Strap slot
5. Sensor
