Operation instructions
Turn the main switch on. This will initiate the
electronics. Four dots will sequentially blink to in-
dicate the start-up. Next the top display will show
1P (1-phase). The lower display shows the supply
frequency 50 or 60 Hz.
When the start-up sequence is over, the displays
show the active curing times in minutes. Flash-off
at the upper and full bake at the lower.
Use the + and - buttons below the displays to
change the settings. Pressing the buttons conti-
nously will rapidly increase the setting. Each timer
can be set between 0 and 30 min. The settings will
remain even after power-off and serve as default
for the next curing operation.
Start the curing by pressing the On/Off button.
The active timer will flash and the heater will
switch off automatically when the set times have
elapsed. The cassette fan will run for another 3
minutes for cooling down.
After idling for 30 minutes, the unit enters stand-
by mode when a dot in each display flashes.
Pressing any button will activate the unit again.
NOTES:
- The FLASH OFF timer controls the duration of the
half power output of the emitters. The FULL BAKE
timer controls the duration of the full power out-
put of the emitters. If both FLASH OFF and FULL
BAKE timers are used, the FLASH OFF timer will
count down first and upon switching off it will
engage the FULL BAKE timer automatically.
- To stop the unit before the time is out, press the
On/Off button.
- Altering timers is possible even during curing.
- If the temperature inside the control unit rises
over 65°C (149°F) , the unit switches off. The up-
per display will show Ot (over temperature) and
the lower one the actual temperature. Automatic
reset when the temperature falls below 55°C
(131°F) and the unit is ready for operation again.

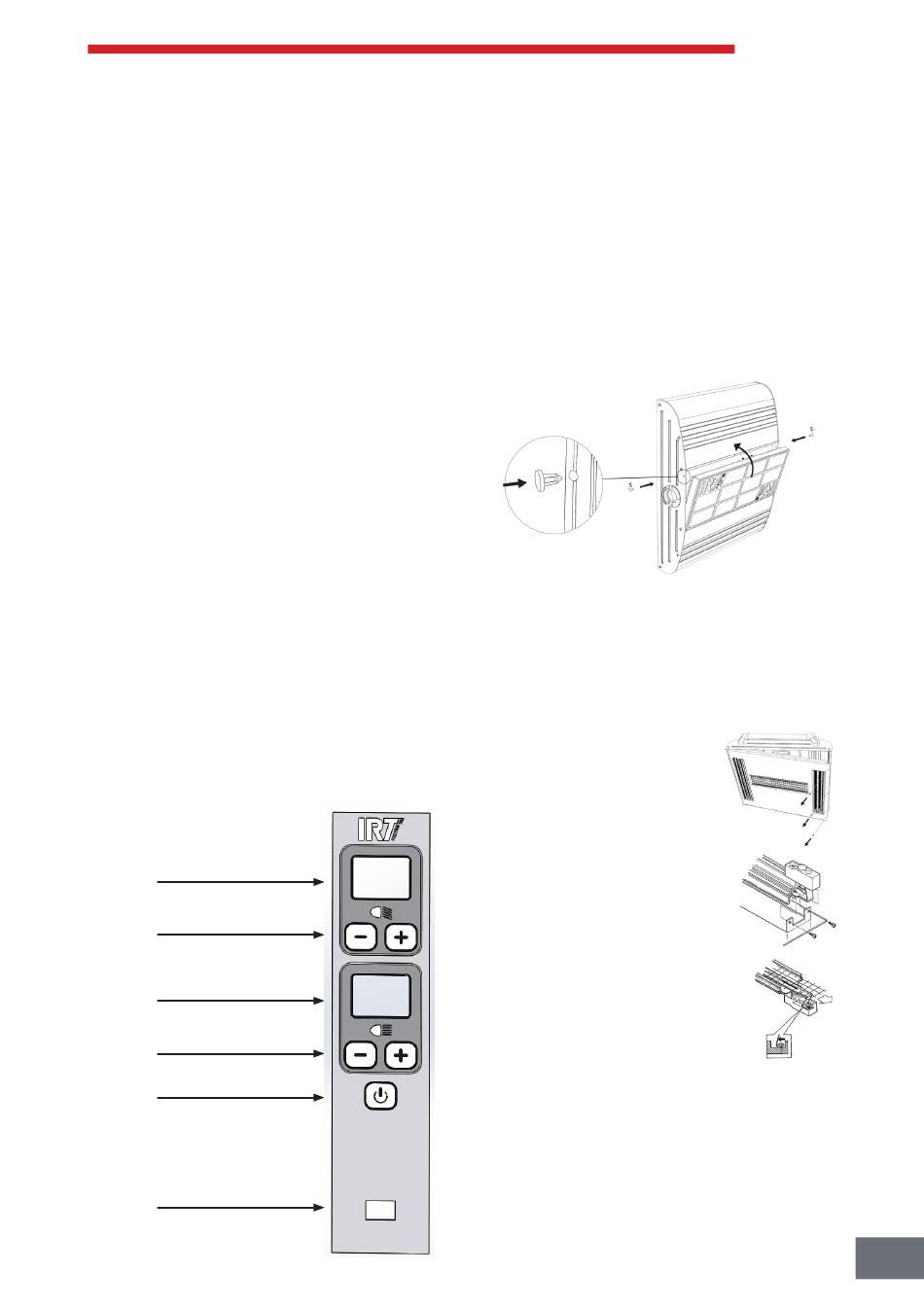

FLASH OFF TIMER
FLASH OFF SETTINGS
FULL BAKE TIMER
FULL BAKE SETTINGS
ON/OFF BUTTON
MAIN SWITCH
714377 rev 4
7.
Maintenance
7.1 Filter replacement
Attention: The filters are disposable and should
not be reused.
1. Loosen the two plugs at the cassette side
plates.
2. Remove the used filter.
3. Place the long edge of the new filter into the
cassette groove opposite to the two plugs.
4. Push in the filter until the two plugs can be
reattached.
7.2 IR lamp replacement
Note!
Only use original IR lamps with the correct power
rating.
1. Disconnect power supply.
2. Loosen the 3 screws on the
front plate in accordance
with picture.
3. Disconnect the cable connec-
tor.
4. Loosen the 4 screws on the
ends of the reflector and
remove the reflector from the
plate.
5. Remove the mesh and un-
screw the lamp from the end.
6. Install new lamps in reverse
order.
Attention!
Do not touch the gold-coated
reflector or the new IR lamp with your fingers.
Remove the protective paper on the IR lamp after
you have installed it.
IRT 3 PrepCure
