3 Installation
3.1 Wall mounting

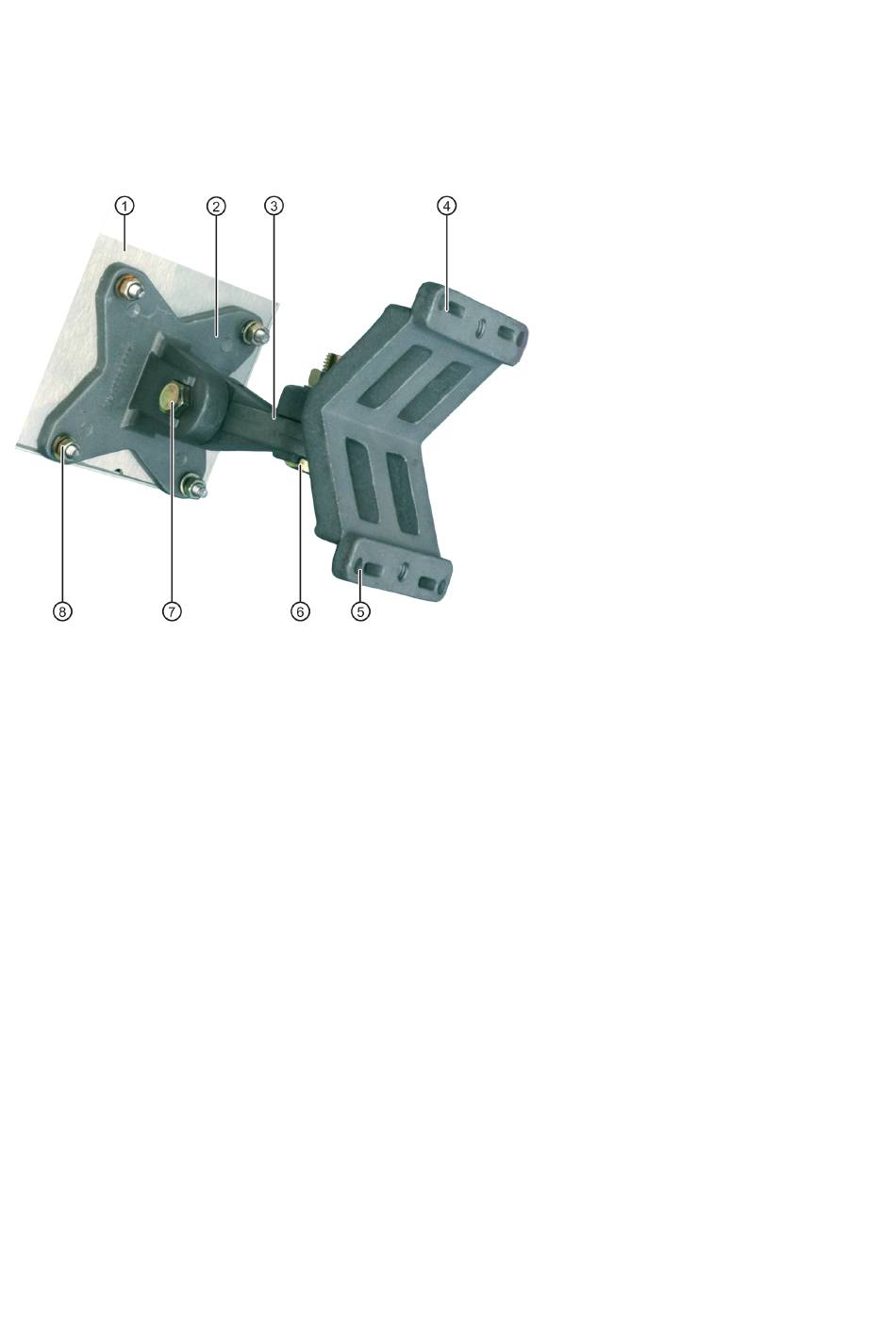

① Antenna
② Holding plate for securing the antenna
③ Intermediate hinge
④ Support
⑤ Bore holes for securing to the wall (pack of 4)
⑥⑦ Threaded bolts for the intermediate hinge
⑧ Threaded bolts for securing the antenna (pack of 4)
Procedure
1. Secure the holding plate ② to the back of the antenna ① with four threaded bolts M5 ⑧. Use spring washers and normal
washers. The tightening torque is 5.7 Nm.
2. Secure the intermediate hinge ③ to the holding plate ② using the threaded bolt M8x40 ⑦ and the nut. Use a spring washer
and normal washer. The tightening torque is 24 Nm.
3. Secure the support ④ on the intermediate hinge ③ using the threaded bolt M8x40 ⑥ and the nut. Use a spring washer and
normal washer. The tightening torque is 24 Nm.
4. Secure the support ④ to the wall with 4 screws via the bore holes ⑤.
5. Align the antenna. To do this loosen the threaded bolts ⑥ und ⑦. Position the antenna and then tighten the threaded bolts
⑥ und ⑦ again.
