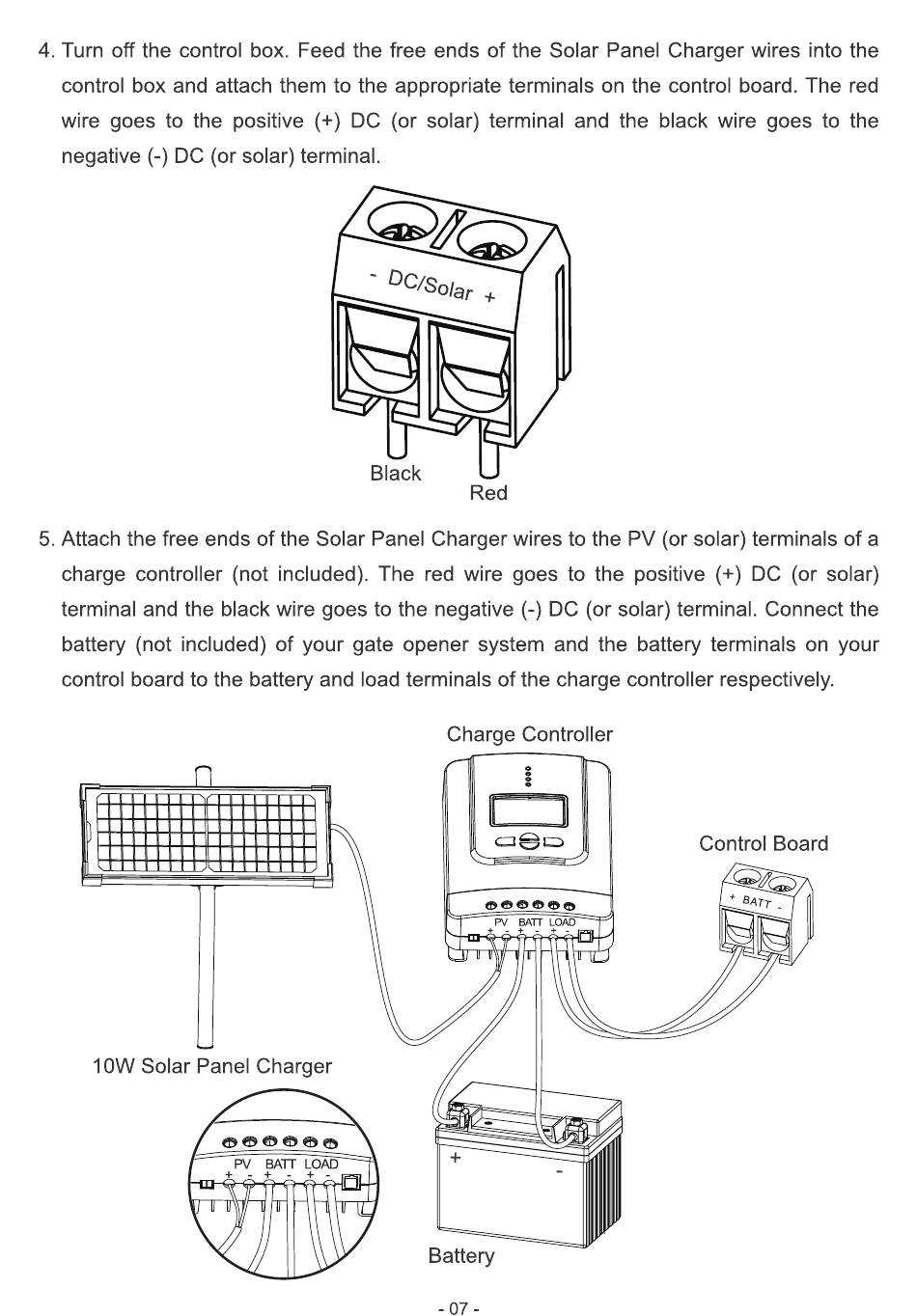

4. Turn off the control box. Feed the free ends of the Solar Panel Charger wires into the
control box and attach them to the appropriate terminals On the control board The red
wire goes to the positive (+) DC (or solar) terminal and the black wire goes to the
negative (-) DC (or solar) terminal.
5. Attach the free ends of the Solar Panel Charger wires to the PV (or solar) terminals Of a
charge controller (not included). The red wire goes to the positive (+) DC (or solar)
terminal and the black wire goes to the negative (-) DC (or solar) terminal Connect the
battery (not included) of your gate opener system and the battery terminals on your
control board to the battery and load terminals of the charge controller respectively.
IOW Solar Panel Charger
DC/S01ar
Black
600000
BAIT
LOAD
+
Red
Charge Controller
Battery
- 07
Control
Board
