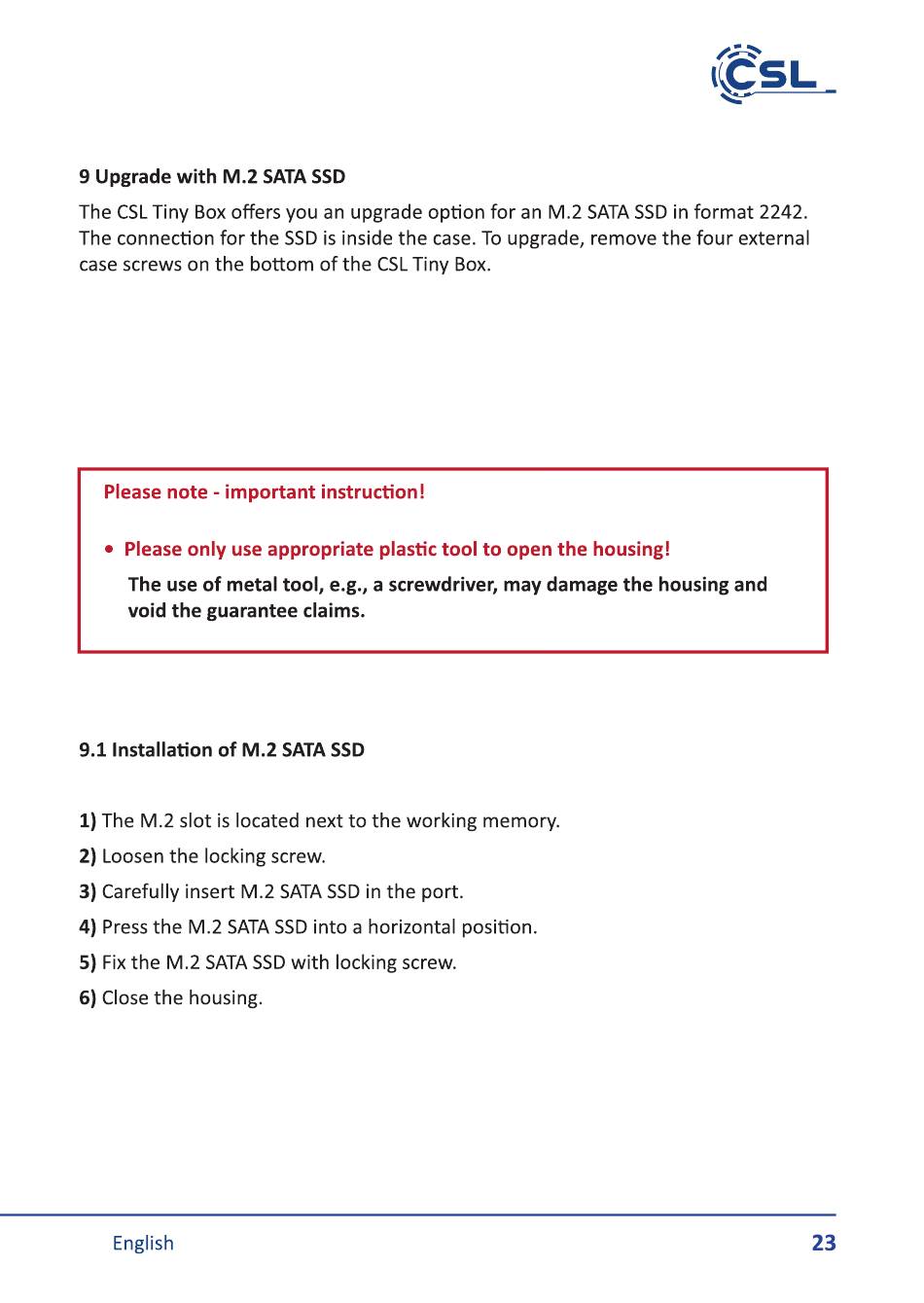

9 Upgrade with M.2 SATASSD
The CSL Tiny Box offers you an upgrade option for an M.2 SATA SSD in format
The connection for the SSDis inside the case. TOupgrade, remove the four external
case screws on the bottom
Please note - important instruction!
• Please only use appropriate plastic tool to open the housing!
The use of metal tool, e.g., a screwdriver,
void the guarantee claims.
9.1 Installation of M.2
1) The M.2 slot is located next to the working memory.
2) Loosen the locking screw.
3) Carefully insert M.2 SATASSDin the port.
4) Pressthe M.2 SATASSDinto a horizontal position.
5) Fix the M.2 SATASSDwith locking screw.
6) Close the housing.
English
of the CSLTiny Box.
SATA SSD
may damage the housing
esu-
2242.
and
