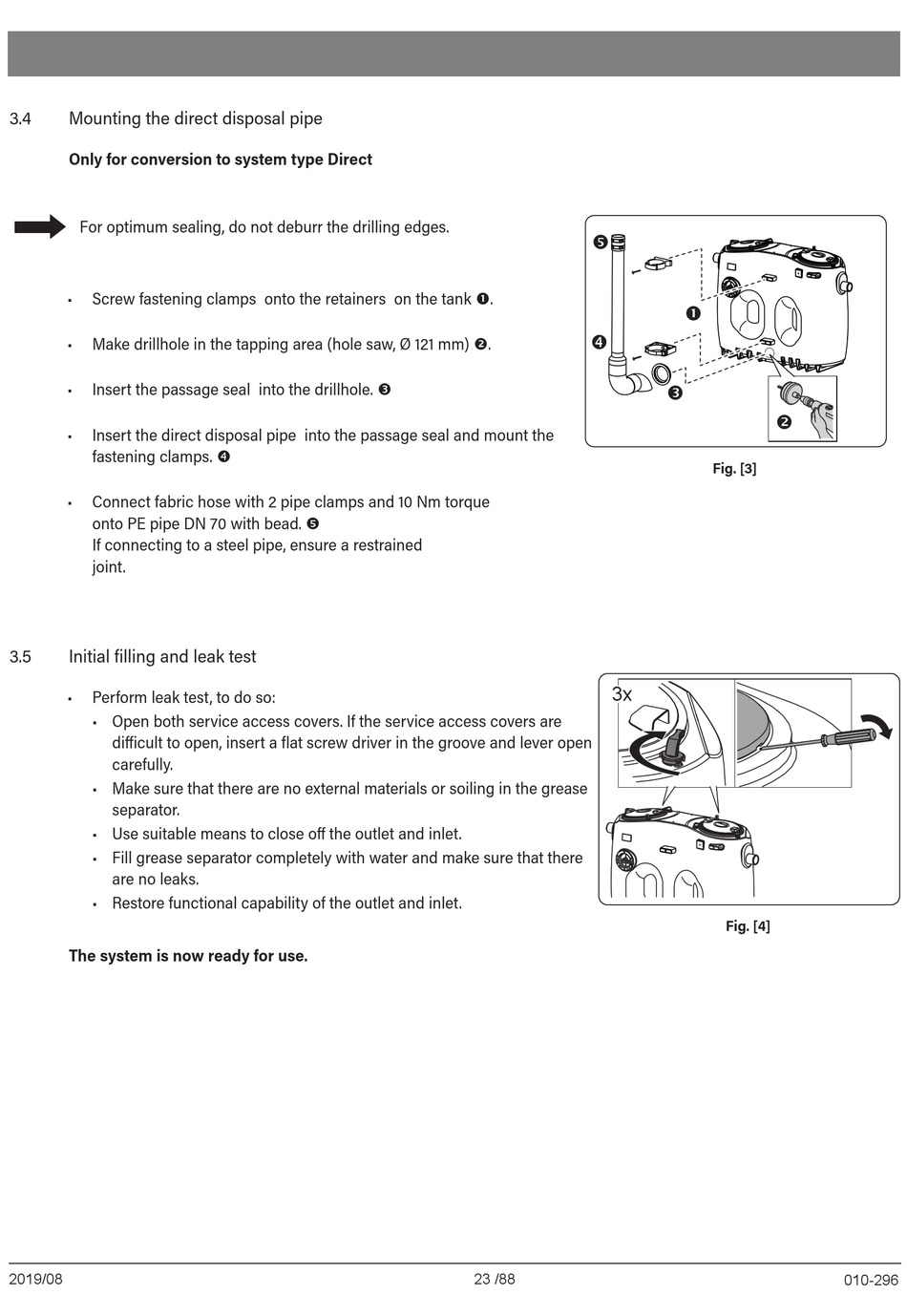

3.4
Mounting the direct disposal pipe
Only for conversion to system type Direct
For optimum sealing, do not deburr the drilling edges.
•
Screw fastening clamps onto the retainers on the tank .
•
Make drillhole in the tapping area (hole saw, Ø 121 mm) .
•
Insert the passage seal into the drillhole.
•
Insert the direct disposal pipe into the passage seal and mount the
fastening clamps.
•
Connect fabric hose with 2 pipe clamps and 10 Nm torque
onto PE pipe DN 70 with bead.
If connecting to a steel pipe, ensure a restrained
joint.
3.5
Initial filling and leak test
•
Perform leak test, to do so:
• Open both service access covers. If the service access covers are
difficult to open, insert a flat screw driver in the groove and lever open
carefully.
• Make sure that there are no external materials or soiling in the grease
separator.
• Use suitable means to close off the outlet and inlet.
• Fill grease separator completely with water and make sure that there
are no leaks.
• Restore functional capability of the outlet and inlet.
The system is now ready for use.
2019/08
3x
3x
23 /88
Fig. [3]
Fig. [4]
010-296
