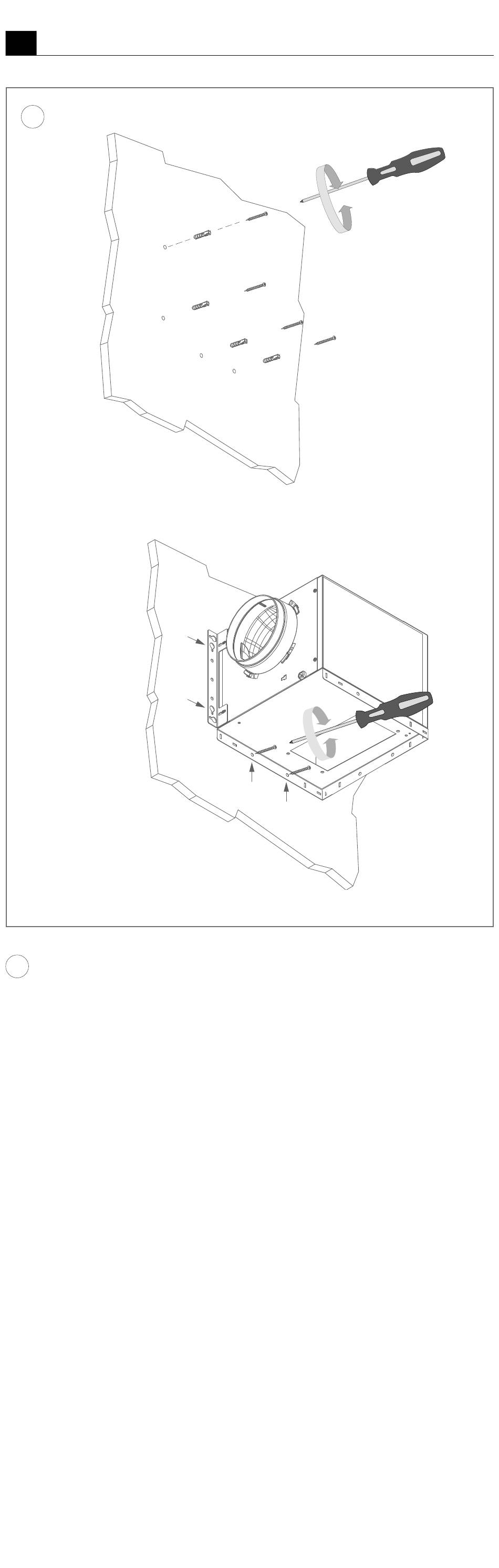

To mount onto a stone wall
8
use the screws 906143 and the plugs 906155.
• Drill the 4 marked-out points and place the
plugs into the holes.
• Partly screw in 2 screws in position 1 and
position 2.
• Suspend the motor unit over these 2 screws.
Next, tighten the screws.
• Now screw in the screws in position 3 and
position 4.
To mount onto a wooden wall
use the screws 906192.
• Partly screw in 2 screws in position 1 and
position 2.
• Suspend the motor unit over these 2 screws.
Next, tighten the screws.
• Now screw in the screws in position 3 and
position 4.
1
2
3
