Tank 121
1.1
239/1
1.2
236/1
Tank 151
2
237/2
Lid, filter and seal
3
235/1
Motor
and circuit
board
4
237/4
Li-lon battery
On/Off Switch
5
237/5
Printed
circu it board
6
237/6
Tank connection
tube
7
237/7
8
237/8
Plastic cover
—o
fiD
18
Art. 235 / Art.
236

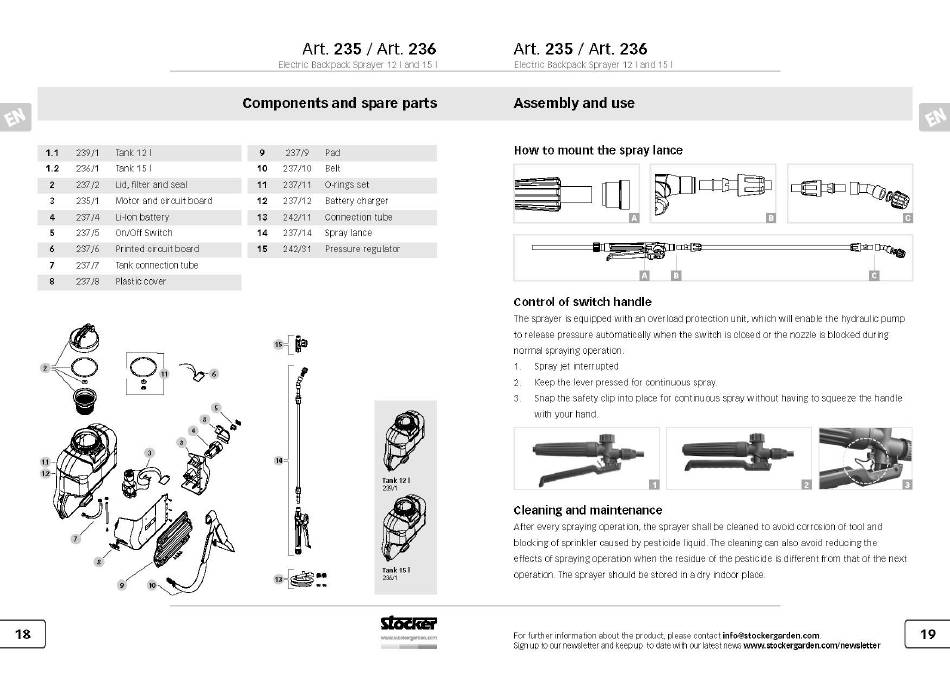

Electric Backpack sprayer 12 1and 15 1
Components
and spare pans
Pad
9
237/9
10
237/10
Belt
11
237/11
O-rings set
12
237/12
Battery char ger
13
242/11
Connection
tube
Spray lance
14
237/14
Pressure regulator
15
242/31
Tank 12 1
20/1
Tank IS I
Art.
235 / Art. 236
Electric Backpack sprayer 12 1and 15 1
Assembly
and use
How to mount the spray lance
control
of switch
handle
The sprayer is equipped with an over load protection unit, which will enable the hydraulic pump
to release pressure automatically when the switch is closed or the nozzle is blocked during
normal spraying operation
Spray jet interrupted
2.
Keep the lever pressed for continuous spray.
3.
Snap the safety clip into place for continuous spray without having to squeeze the handle
with your hand
Cleaning and maintenance
After every spraying operation, the sprayer shall be cleaned to avoid corrosion of tool and
blocking of sprinkler caused by pesticide liquid. The cleaning can also avoid reducing the
effects of spraying operation when the residue of the pesticide is different from that of the next
operation. The sprayer should be stored in a dry indoor place.
For further information about the product, please contact info@stockergarden.com
