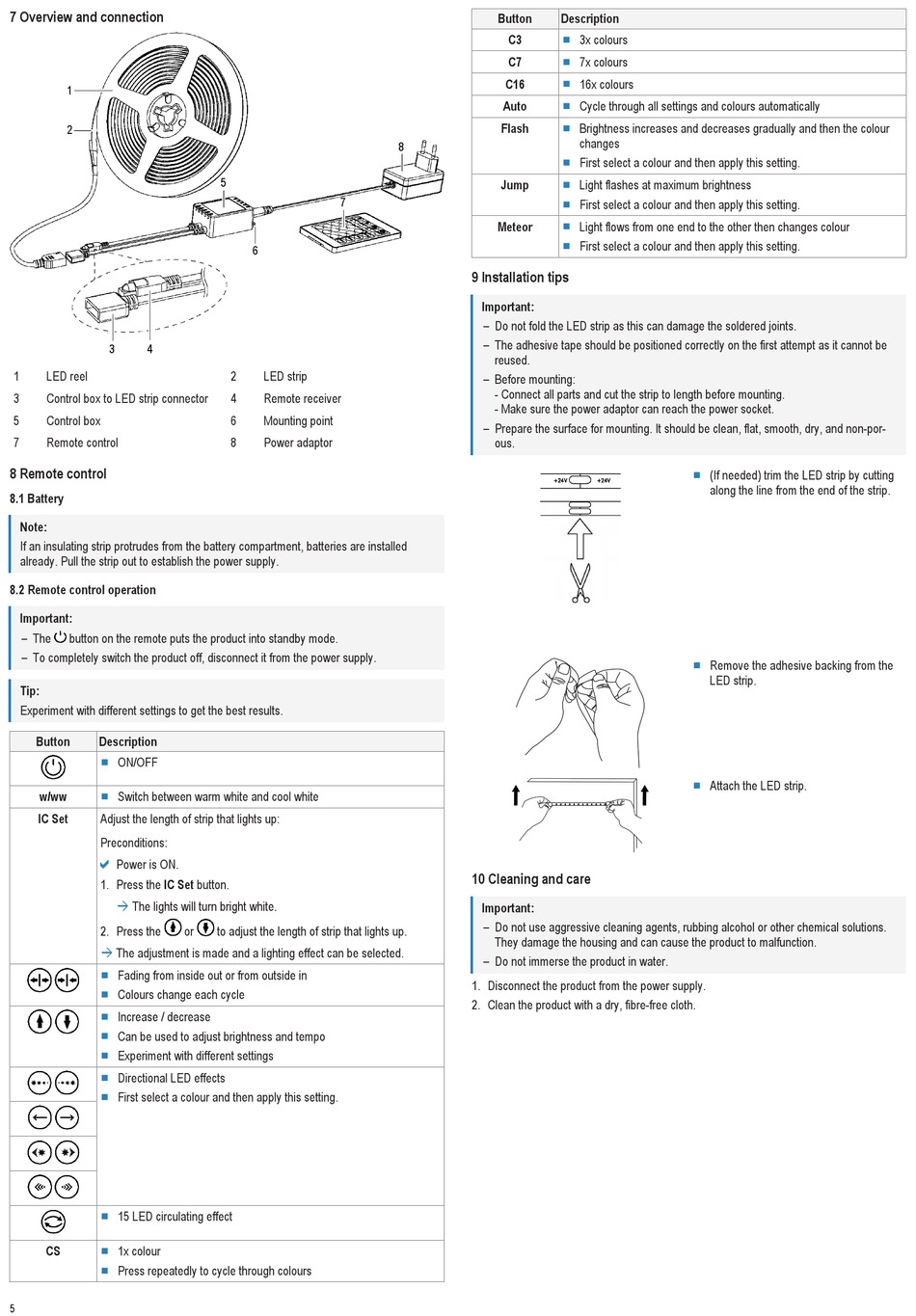

7 Overview and connection
1
2
3
4
1
LED reel
3
Control box to LED strip connector
5
Control box
7
Remote control
8 Remote control
8.1 Battery
Note:
If an insulating strip protrudes from the battery compartment, batteries are installed
already. Pull the strip out to establish the power supply.
8.2 Remote control operation
Important:
– The
button on the remote puts the product into standby mode.
– To completely switch the product off, disconnect it from the power supply.
Tip:
Experiment with different settings to get the best results.
Button
Description
■
ON/OFF
■
w/ww
Switch between warm white and cool white
IC Set
Adjust the length of strip that lights up:
Preconditions:
a
Power is ON.
1. Press the IC Set button.
à
The lights will turn bright white.
2. Press the
à
The adjustment is made and a lighting effect can be selected.
■
Fading from inside out or from outside in
■
Colours change each cycle
■
Increase / decrease
■
Can be used to adjust brightness and tempo
■
Experiment with different settings
■
Directional LED effects
■
First select a colour and then apply this setting.
■
15 LED circulating effect
■
CS
1x colour
■
Press repeatedly to cycle through colours
5
5
7
6
2
LED strip
4
Remote receiver
6
Mounting point
8
Power adaptor
or
to adjust the length of strip that lights up.
Button
Description
■
C3
■
C7
■
C16
■
Auto
■
Flash
8
■
■
Jump
■
■
Meteor
■
9 Installation tips
Important:
– Do not fold the LED strip as this can damage the soldered joints.
– The adhesive tape should be positioned correctly on the first attempt as it cannot be
reused.
– Before mounting:
- Connect all parts and cut the strip to length before mounting.
- Make sure the power adaptor can reach the power socket.
– Prepare the surface for mounting. It should be clean, flat, smooth, dry, and non-por-
ous.
10 Cleaning and care
Important:
– Do not use aggressive cleaning agents, rubbing alcohol or other chemical solutions.
They damage the housing and can cause the product to malfunction.
– Do not immerse the product in water.
1. Disconnect the product from the power supply.
2. Clean the product with a dry, fibre-free cloth.
3x colours
7x colours
16x colours
Cycle through all settings and colours automatically
Brightness increases and decreases gradually and then the colour
changes
First select a colour and then apply this setting.
Light flashes at maximum brightness
First select a colour and then apply this setting.
Light flows from one end to the other then changes colour
First select a colour and then apply this setting.
■
(If needed) trim the LED strip by cutting
along the line from the end of the strip.
■
Remove the adhesive backing from the
LED strip.
■
Attach the LED strip.
