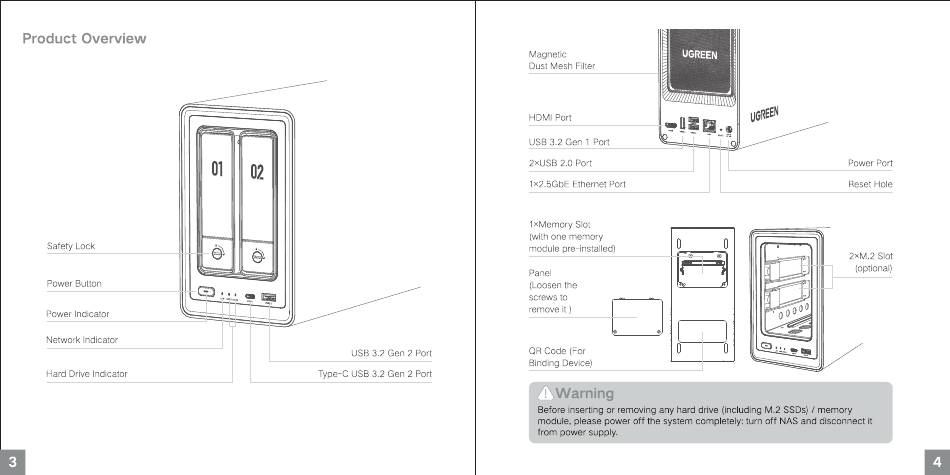

Product Overview
Safety Lock
Power Button
Power Indicator
Network Indicator
Hard Drive Indicator
01
02
USB 3 2 Gen 2 Port
Type C USB 3 2 Gen 2 Port
UGREEN
Magnetic
Dust Mesh Filter
HDMI Port
USB 3.2 Gen 1 Port
2.0 Port
5GbE Ethernet Port
1><Memory Slot
(with one memory
o
module pre installed)
Pane
(Loosen the
screws to
remove it )
QR Code (For
Binding Device)
AWarning
Before inserting or removing any hard drive (including M.2 SSDs) / memory
module, please power off the system completely: turn off NAS and disconnect
from power supply.
UGREEN
O
Power Port
Reset Hole
o
2xVl 2 Slot
(optional)
