Tighten the clamping screw (3) of the operating unit (1).
1× M3 3 mm in-
ternal
hexagon
– 3 mm hex key
– Torque spanner
Tighten the clamping screws of the brake lever according to
the specifications of the brake manufacturer.
Connecting the Operating Unit

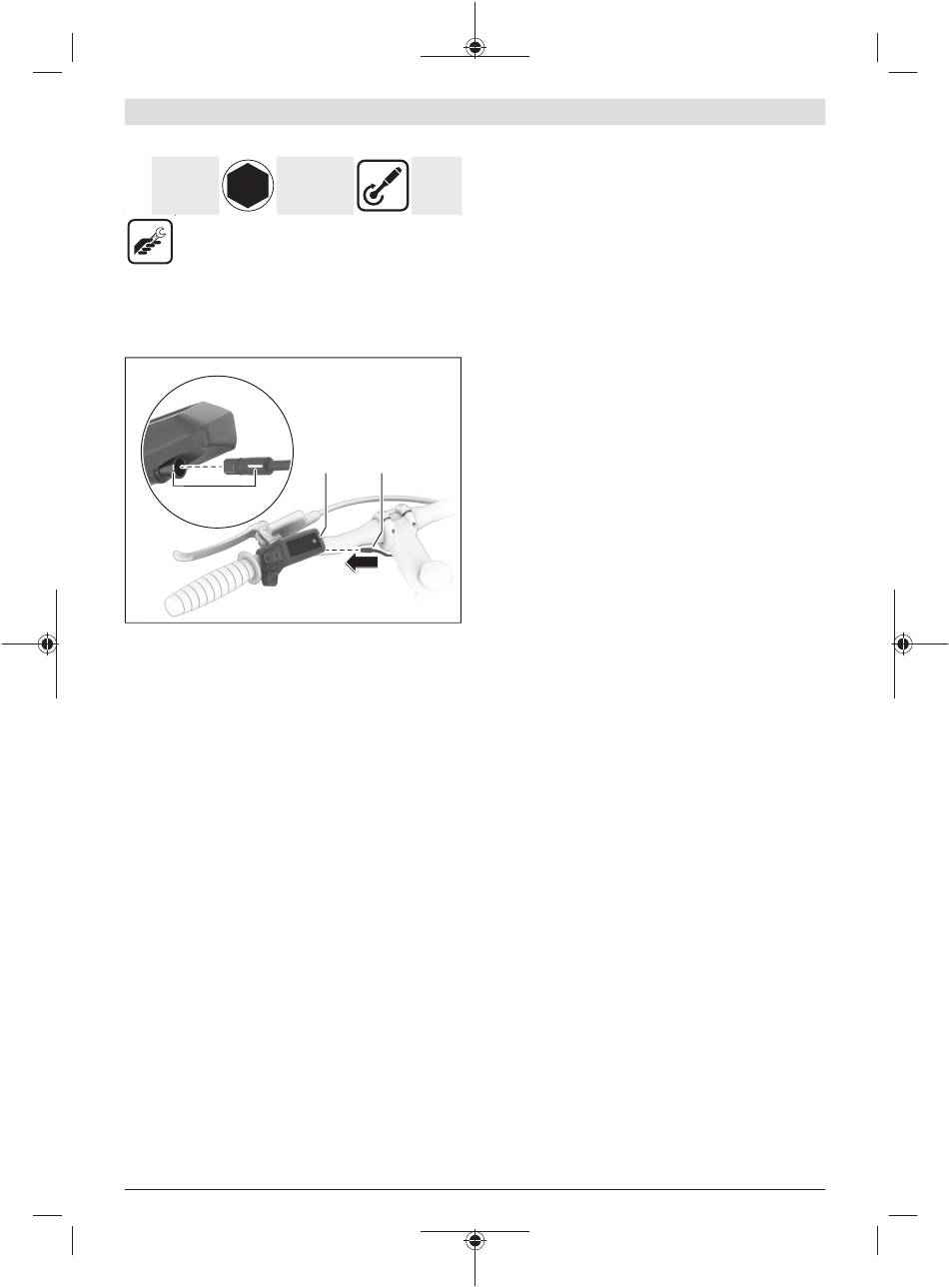

Connect the connection cable (2) to the operating unit (1).
Note: Observe the colour coding and alignment of the plug
when inserting the cables.
Note: Depending on the design of the handlebars, it is easier
to connect the connection cable (2) when the operating
unit (1) is released.
