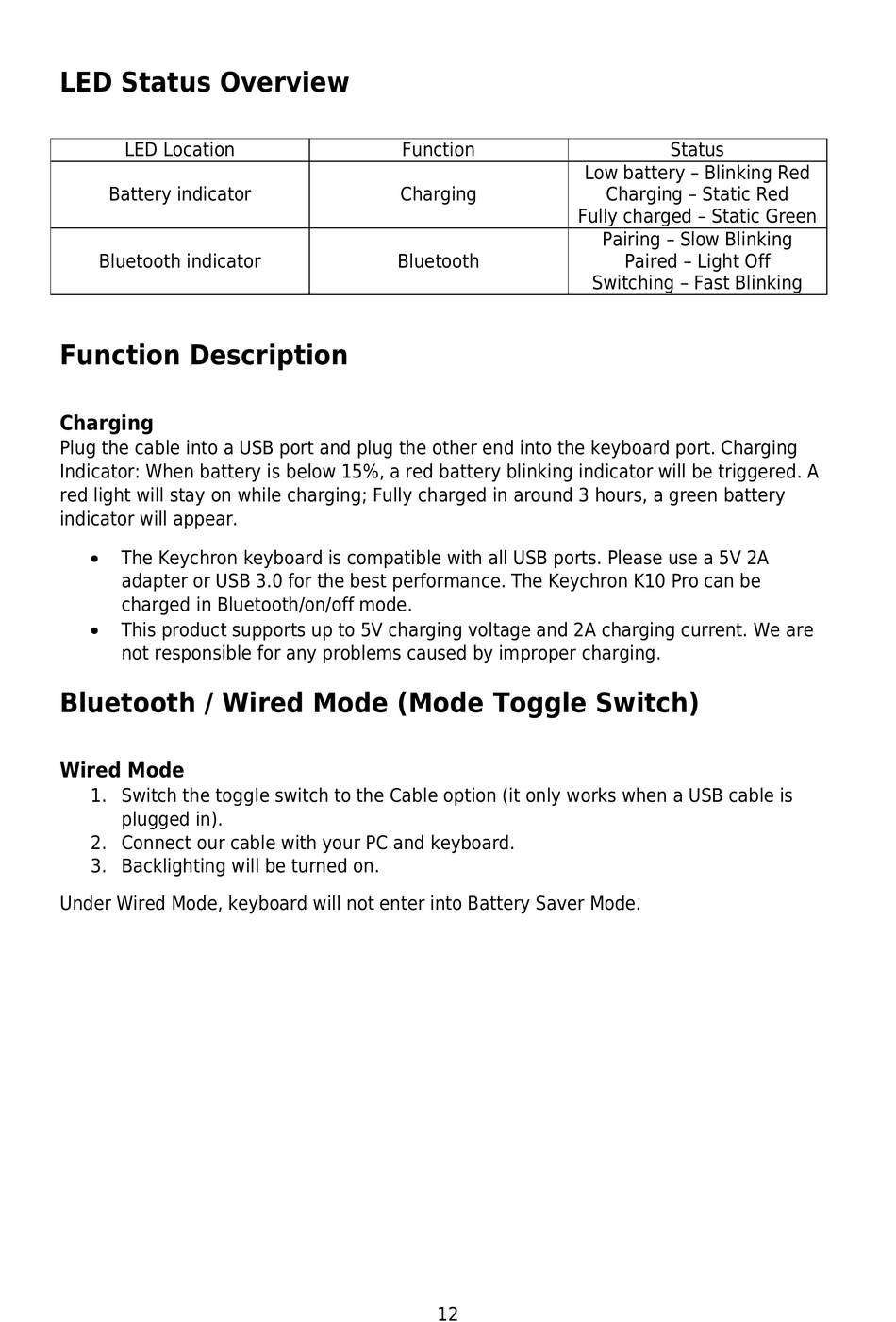

Keychron K10 Pro Benutzerhandbuch Seite 12

LED Status Overview
LED Location
Battery indicator
Bluetooth indicator
Function Description
Charging
Plug the cable into a USB port and plug the other end into the keyboard port. Charging
Indicator: When battery is below 15%, a red battery blinking indicator will be triggered. A
red light will stay on while charging; Fully charged in around 3 hours, a green battery
indicator will appear.

The Keychron keyboard is compatible with all USB ports. Please use a 5V 2A
adapter or USB 3.0 for the best performance. The Keychron K10 Pro can be
charged in Bluetooth/on/off mode.

This product supports up to 5V charging voltage and 2A charging current. We are
not responsible for any problems caused by improper charging.
Bluetooth / Wired Mode (Mode Toggle Switch)
Wired Mode
1. Switch the toggle switch to the Cable option (it only works when a USB cable is
plugged in).
2. Connect our cable with your PC and keyboard.
3. Backlighting will be turned on.
Under Wired Mode, keyboard will not enter into Battery Saver Mode.
Function
Charging
Bluetooth
12
Status
Low battery – Blinking Red
Charging – Static Red
Fully charged – Static Green
Pairing – Slow Blinking
Paired – Light Off
Switching – Fast Blinking
