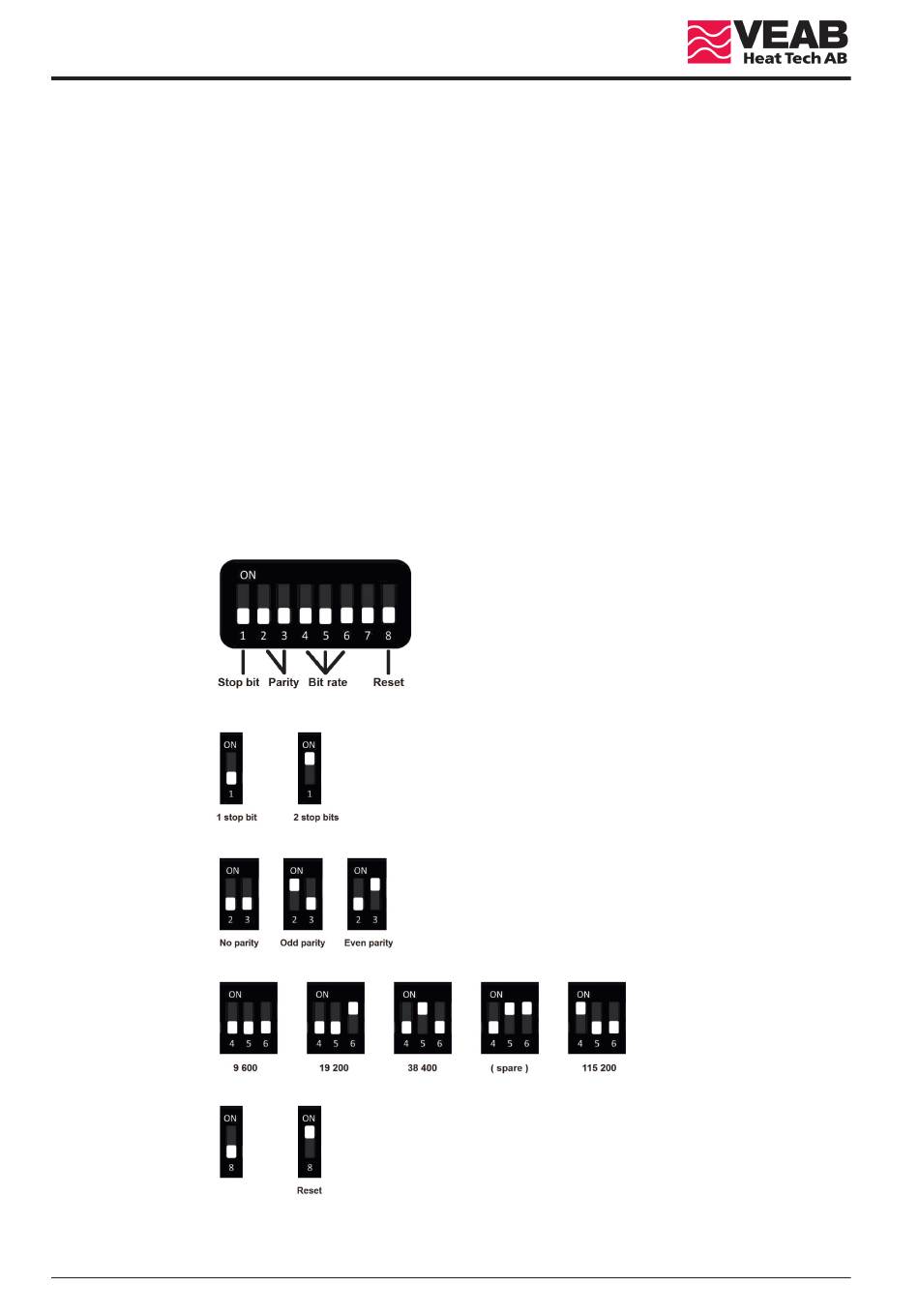

VEAB Heat Tech CV MODBUS Serie Handbuch Seite 15

CV ..-..-..MODBUS
I/O type Characteristics
AI1 P 1000, -10...+50°C, tolerance ±0.5K.
Used for temperature sensing.
AI2 P 1000, -10...+50°C, tolerance ±0.5K.
Used for temperature sensing.
DI1 5VDC nominal open circuit voltage.
Used for detection of tripped manual reset thermal protection.
DI2 5VDC nominal open circuit voltage.
Used for detection of tripped
DO1 Relay contact, max 230V~ 5A.
Used for interlock of the control voltage, or to interlock the Pulser or the TTC.
DO2 15VDC, MOSFET, max 15mA.
Used for PWM pulse/pause (PP) control of the Pulser or the TTC.
t
t
automatic reset thermal protection.
15
