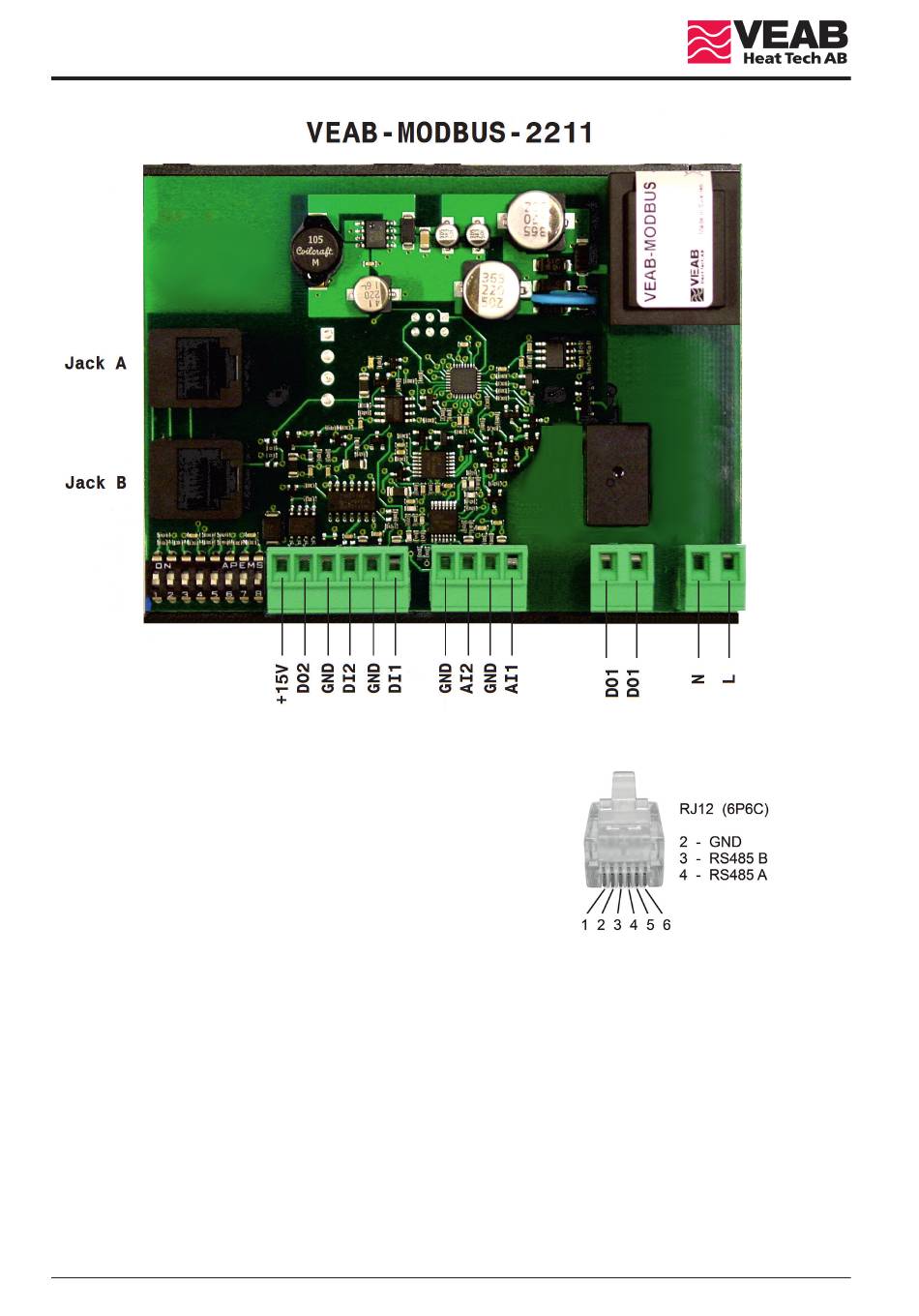

CV ..-..-..MODBUS
Overview
DIN-rail mounting
Supply voltage: 220...240V~ 50/60Hz
Dimensions: 96 x 85 x 33 mm
I/O type
Analog input (AI)
Digital input (DI)
Digital output (DO)
Digital output (DO)
M ODBUS communication protocol RS485
Two parallel connected 6P6C modular jacks
Number of I/O
2 ( P 1000, -10...+50°C, tolerance ±0.5K ) t
2 ( 5VDC nominal open circuit voltage )
1 ( 15VDC, MOSFET max 15mA )
1 ( Relay contact, max 230V~ 5A )
( Bit rate 115200, 38400, 19200 or 9600 selectable )
14
