Gamma instabus
Binäreingabegerät
N 263E01
Binary input device N 263E01
8x AC / DC 12...230 V
5WG1 263-1EB01
Bedien- und Montageanleitung
Operating and Mounting Instructions
Stand: August 2013
As at: August 2013
A
N
B
N
C
N
D
N
E
N
G
N
H
N
N 263E01
230 V AC

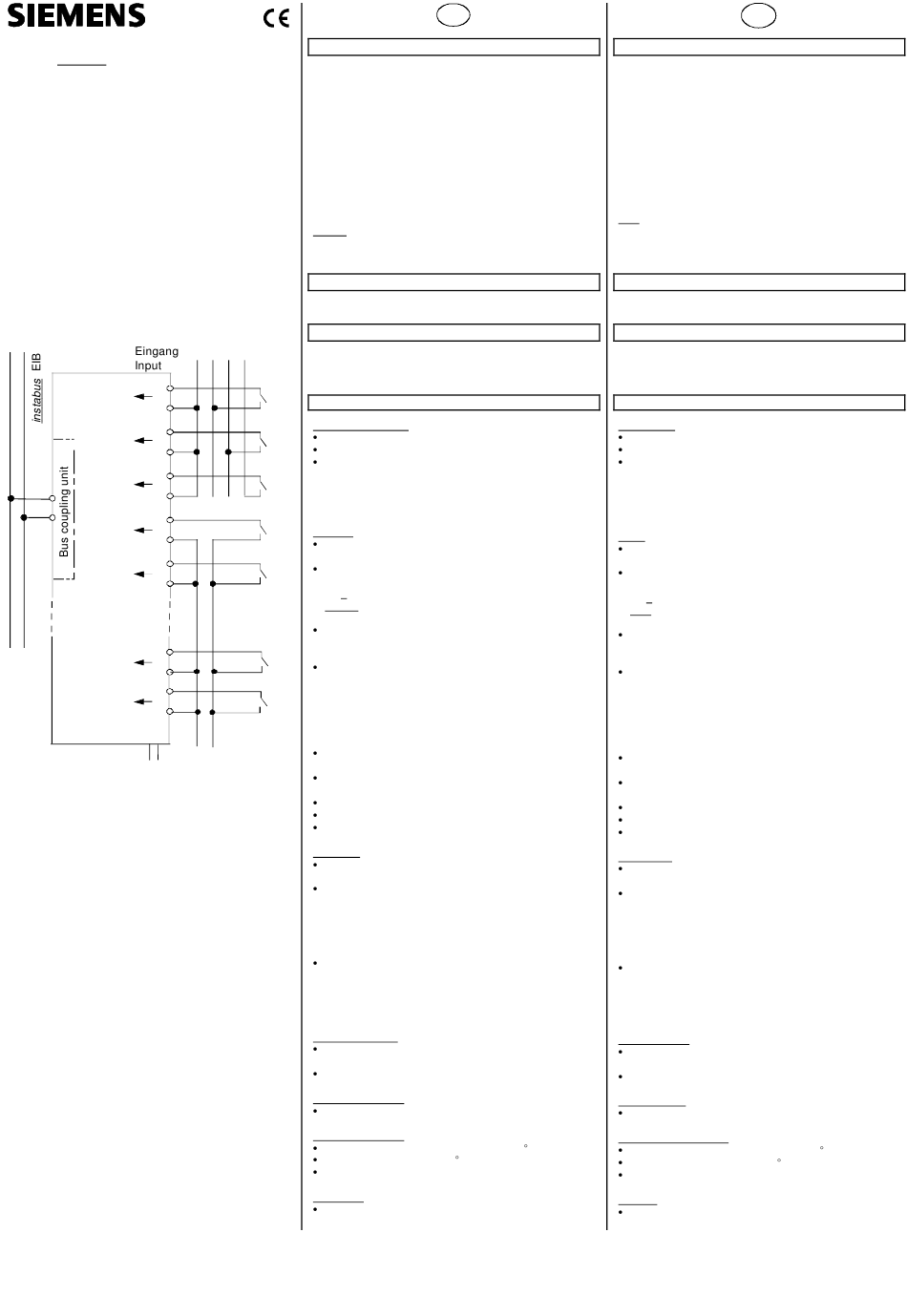

Bild / Figure 1
A5E00464589A
DS07
Produkt- und Funktionsbeschreibung
Das Binäreingabegerät N 263E01 ist ein Reiheneinbaugerät im N-
Maß mit 8 Eingängen für Gleich- oder Wechselspannung im Be-
reich von 12...230 V. Es ermöglicht sowohl das Erfassen von Zu-
ständen (Spannung liegt an oder nicht) als auch von Zustands-
wechseln (Spannung kommt oder geht) und Spannungs-
Impulsen (z.B. zum Zählen). Das ab der ETS3.0f ladbare Applika-
tionsprogramm unterstützt eine Vielzahl von Anwendungen und
ermöglicht, jedem Eingang ggf. eine andere Funktion zuzuwei-
sen.
Das N 263E01 besitzt ein integriertes Netzgerät für AC 230 V zur
Stromversorgung der Elektronik. Dieses Netzgerät ermöglicht ein
Anzeigen der Signalzustände an den Eingängen auch dann, wenn
keine Busspannung vorhanden ist.
Hinweis: Nach einem „Entladen" des Applikationsprogramms mit
der ETS ist das Gerät ohne Funktion. Auch der Status der Eingänge
wird dann nicht mehr angezeigt.
Weitere Informationen
http://www.siemens.de/gamma
Anschlussbeispiel
N L1 L2 L3
siehe Bild 1 (Bild 1 zeigt das Erfassen der Schaltzustände von Kon-
takten, die entweder an einen Außenleiter der Netzspannung
oder an eine Gleichspannungsquelle angeschlossen sind)
Technische Daten
Spannungsversorgung
Busspannung: erfolgt über die Buslinie
Busstrom: 5 mA (nur halbe Standard-Buslast ! )
Elektronik:
- integriertes Netzgerät für AC 230 V, +10% / -15%,
50 / 60 Hz
- Netzanschluss: 2-polig (N, L)
- Leistungsaufnahme: max. 1,6 W
Eingänge
8 Eingänge (mit Basisisolation 250V gegeneinander und ver-
stärkter Isolation zum Bus)
Eingangsspannung: AC/DC 12 V ... 230 V
(U
= 0...2 V: = Spannung nicht vorhanden = log. 0;
in
U
> 9 V:
in
Hinweis: Bei Gleichspannung ist der Minuspol jeweils an die
mit „N" gekennzeichnete Klemme anzuschließen.
Eingangsstrom:
bei max. AC 253 V: typisch 1,5 mA (RMS)
bei max. DC 253 V: typisch 3,0 mA
Eingangssignalverzögerung:
- bei steigender Eingangssignalflanke:
max. 60 ms bei DC
max. 100 ms bei AC
- bei fallender Eingangssignalflanke:
max. 140 ms bei DC
max. 100 ms bei AC
Eingangssignal-Einschaltdauer: min. 60 ms bei DC
-
+
DC 24 V
Eingangssignal-Ausschaltdauer: min. 140 ms bei DC
Max. erfassbare Schaltfrequenz: 5 Hz
Eingangsfunktion: parametrierbar
Max. Länge der Anschlussleitungen: 100 m
Anschlüsse
Netzanschluss und Eingänge:
- Steckklemmen, Abisolierlänge 9...10 mm
Es sind folgende Leiterquerschnitte zulässig:
- 0,5 ... 2,5 mm² eindrähtig
- 0,5... 2,5 mm² feindrähtig mit Stiftkabelschuh,
gasdicht aufgecrimpt
- 0,5 ... 1,5 mm² feindrähtig, mit Aderendhülse
- 1,0 und 1,5 mm² feindrähtig, unbehandelt
KNX-Buslinie:
- Druckkontakte auf Datenschiene,
- Busklemme schraubenlos,
0,6 ... 0,8 mm Ø eindrähtig,
Abisolierlänge 5 mm
Mechanische Daten
Abmessungen: Reiheneinbaugerät in N-Maß,
Breite 6 TE (1 TE = 18 mm)
Gewicht: ca. 280 g
Elektrische Sicherheit
Schutzart (nach EN 60529): IP 20
Umweltbedingungen
Umgebungstemperatur im Betrieb: - 5 ... + 45 C
Lagertemperatur: - 25 ... + 70 C
rel. Feuchte (nicht kondensierend): 5 % bis 93 %
Prüfzeichen
KNX EIB
D
= Spannung vorhanden = log. 1)
min. 100 ms bei AC
min. 100 ms bei AC
Seite 1 von 2
GB
Product and Applications Description
The binary input device N 263E01 is a N-system DIN-rail mounted
device with 8 inputs for AC or DC voltages in the range from
12...230 V. It supports the monitoring of the input status (volt-
age applied or not), the detection of changes of status (voltage
coming or going) and of voltage pulses (e.g. for counting). The
application program, which can be loaded in ETS3.0f and higher
versions, supports numerous applications and allows, if neces-
sary, to assign to each input a different function.
The N 263E01 has an integrated power supply unit for AC 230 V
in order to supply power to the electronics. This power supply
unit enables the display of the signal status of all input signals
even if no bus voltage is available.
Note: After an "unload" of the application program with the ETS
the device will be without any function. Even the status of the
inputs will not be displayed.
Additional Information
http://www.siemens.com/gamma
Example of Operation
see figure 1 (figure 1 shows the capturing of the switching status
of contacts which are either connected to the mains voltage or to
a DC voltage source)
Technical Specifications
Power supply
Bus voltage: carried out via the bus line
Bus current: 5 mA (only half a standard bus load ! )
Electronics:
- integrated power supply for AC 230 V + 10 % / - 15 % ,
50 / 60 Hz
- Mains connection: 2-pole (N, L)
- Power consumption: max. 1.6 W
Inputs
8 inputs (with basic insulation 250V against each other and
enhanced insulation against the bus)
Input voltage: AC / DC 12 V ... 230 V
(U
= 0...2 V: = no voltage applied = log. 0;
in
U
> 9 V:
= voltage applied = log. 1)
in
Note: In case of a DC voltage the negative pole has to be con-
nected to the terminal marked with "N".
Input current:
at max. AC 253 V: typically 1.5 mA (RMS)
at max. DC 253 V: typically 3.0 mA
Input signal delay:
- at leading input signal edge:
max. 60 ms at DC
max. 100 ms at AC
- at trailing input signal edge:
max. 140 ms at DC
max. 100 ms at AC
Input signal ON-time: min. 60 ms at DC
min. 100 ms at AC
Input signal OFF-time: min. 140 ms at DC
min. 100 ms at AC
Max. detectable switching frequency: 5 Hz
Input function: to be set in the parameter list
Signal line length: max. 100 m
Connections
Mains and input circuits:
- Plug-in terminals, insulation strip length 9 ... 10 mm
The following conductor cross-sections are permitted:
- 0.5 ... 2.5 mm² single-core
- 0.5... 2.5 mm² finely stranded with plug connector, sealed
crimp connection
- 0.5 ... 1.5 mm² finely stranded, with connector sleeve
- 1.0 and 1.5 mm² finely stranded, untreated
KNX bus line:
- pressure contacts on data rail,
- screw-less bus connection block,
Ø 0.6 ... 0.8 mm single core,
insulation strip length 5 mm
Mechanical data
Dimensions: DIN rail mounted device in N-system dimensions,
width: 6 module units (1 module unit = 18 mm)
Weight: approx. 280 g
Electrical safety
Protection type (in accordance with EN 60529): IP 20
Environmental conditions
Ambient operating temperature: - 5 ... + 45 C
Storage temperature: - 25 ... + 70 C
Relative humidity (not condensing): 5 % to 93 %
Markings
KNX EIB
page 1 of 2
