4.3. Mounting the front panel (→ fig. C)
1.
Plug the flat cable [7] of the front panel [6] into the appropriate socket on the
connection field in the pattress [2].
2.
Place the front panel [6] onto the top of the pattress [2] creating a hinge [8].
3.
Press the front panel downwards onto the pattress with low pressure (risk of glass
breakage for ComTerminal 77 0510 00!) until the catch [9] engages. Make sure that
the flat cable [7] is not pinched.
4.
For improved security the security screw [10] can be fitted into the hole below the
yellow presence button.
Finally, the ComTerminal has to be configured according to Section 6: "Configuration"
(page 18).
4.4. Dismantling (→ fig. D)
1.
If a security screw [1] is fitted into the base of the ComTerminal remove it.
2.
Use a slotted screwdriver to push the catch [9] upwards until the front panel [6]
loosens.
3.
Remove the front panel [6].
4.
Disconnect the flat cable [7] from the pattress [2].
5.
Lay down the front panel [6] carefully. CAUTION! Electrostatic sensitive compo-
nents! Caution: Glass!

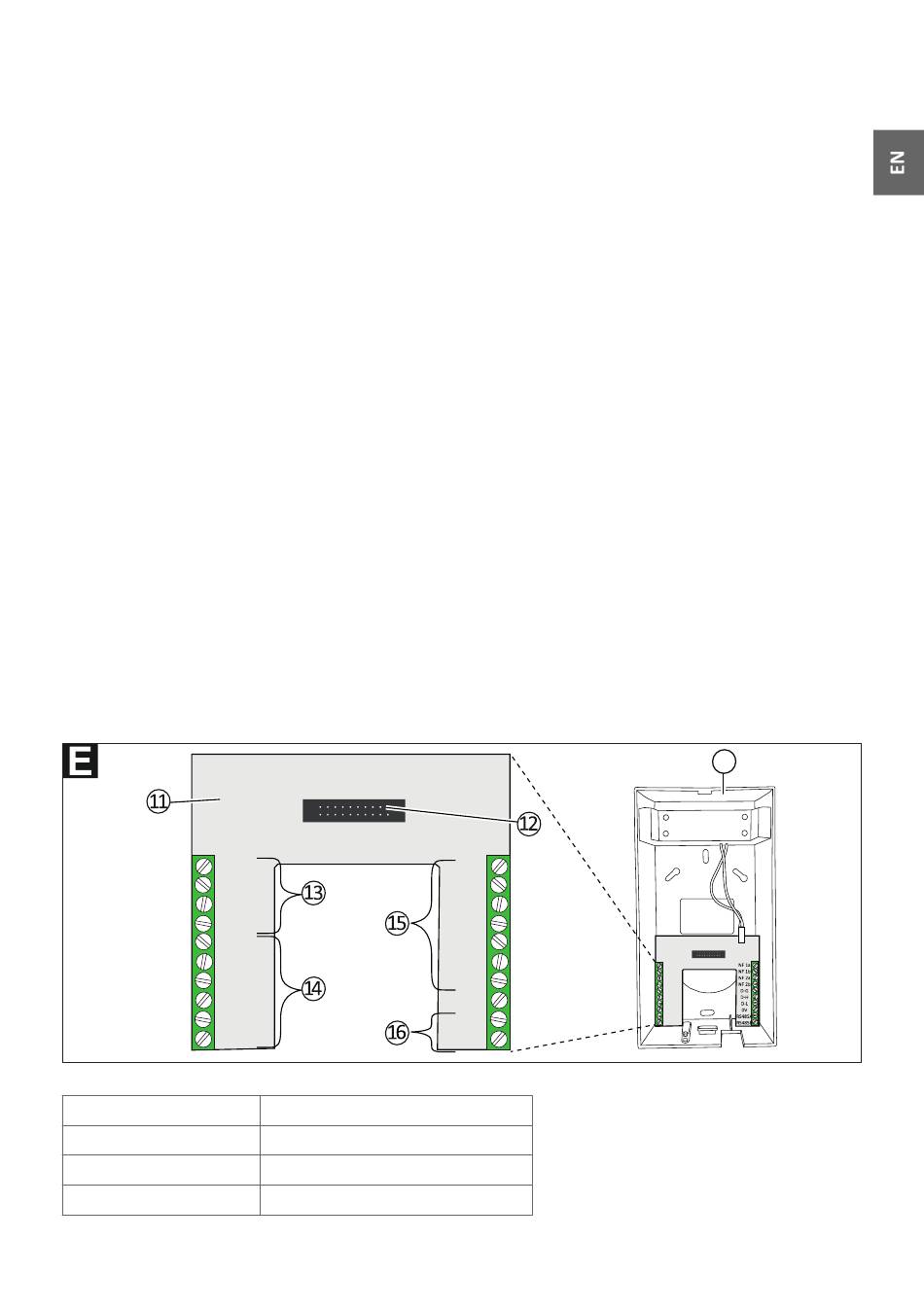

5. Connecting to the connection field (→ fig. E, F)
+24V
+24V
MIC
SCH-B
RAN
+24V-Si
Connectors
Screw
Wire stripping length 6 mm
Connection capacity 0.20 – 2.50 mm²
00 8802 97, 03/23 (Rev. 7.0)
0V
0V
LS
0V
Two screw terminals, 10-pole
M3
NF 1a
NF 1b
NF 2a
NF 2b
D-G
D-H
D-L
0V
RS485A
RS485B
2
15
