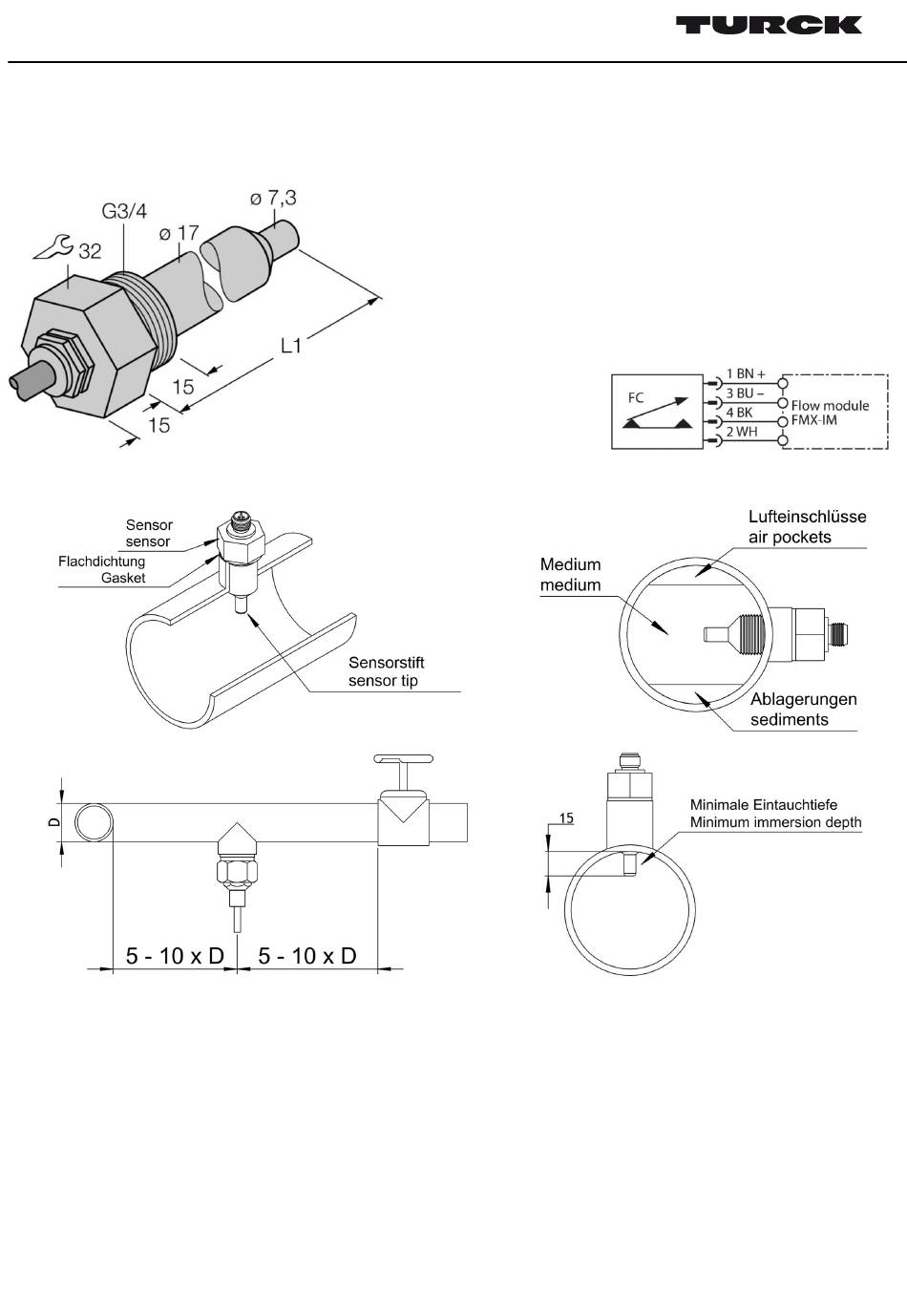

Dimensions/Electrical connection
Installation instructions
• Check smooth running of the thread, if necessary repair the intake thread.
• Observe the sensor's immersion depth - maintain distance to opposite pipe wall.
• Use suitable sealing procedure. Check resistance before use.
• AFM 34 flat seals can be used for up to 30 bar.
• For frequent medium temperature changes, align the Turck logo on the spanner flat in a right angle to the line.
• For low flow speeds: align the Turck logo opposite to the flow direction.
• For open systems, install the sensor in risers.
• Maintain the line distances before and after the sensor.
• Settings for the detection range and switching point are found in the operation instructions of the electronic analysis
device.
Hans Turck GmbH & Co. KG | Witzlebenstraße 7 | 45472 Mülheim an der Ruhr | Germany | T +49 208 4952-0 | www.turck.com
L = 200 mm
D = 15 mm
Thread size: G3/4
Wrench size: SW 32
Colour code:
BN: brown
WH: white
BU: blue
BK: black
3
