| JC-786H(R)
© © ©

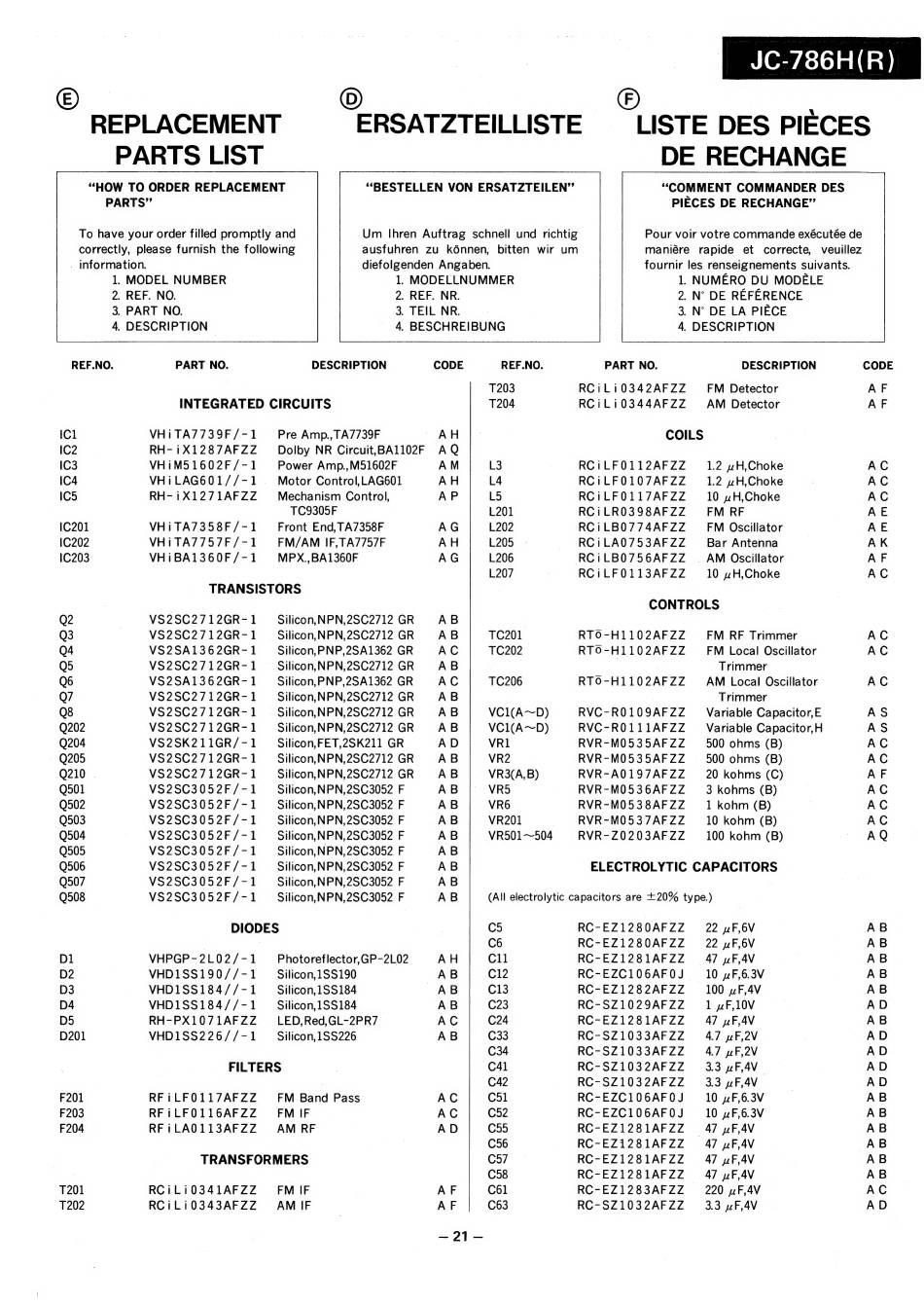

REPLACEMENT ERSATZTEILLISTE LISTE DES PIECES
PARTS LIST __DE RECHANGE
"COMMENT COMMANDER DES
PIECES DE RECHANGE"'
"HOW TO ORDER REPLACEMENT
PARTS"
"BESTELLEN VON ERSATZTEILEN"'
Pour voir votre commande exécutée de
maniére rapide et correcte, veuillez
fournir les renseignements suivants.
1. NUMERO DU MODELE
2. N° DE REFERENCE
3. N° DE LA PIECE
4. DESCRIPTION
Um Ihren Auftrag schnell und richtig
ausfuhren zu kénnen, bitten wir um
To have your order filled promptly and
correctly, please furnish the following
diefolgenden Angaben.
1. MODELLNUMMER
2. REF. NR.
3. TEIL NR.
4. BESCHREIBUNG
. information.
1. MODEL NUMBER
2. REF. NO.
3. PART NO.
4. DESCRIPTION
REF.NO. PART NO. DESCRIPTION CODE REF.NO. PART NO. DESCRIPTION CODE
T203 RCiLiQ342AFZZ FM Detector AF
INTEGRATED CIRCUITS T204 RCiLi0344AFZZ AM Detector AF
IC1 VHiTA7739F/-1 Pre Amp.,TA7739F AH | COILS
IC2 RH-iX1287AFZZ Dolby NR Circuit,BA1102F AQ
IC3 VHiM51602F/-1 Power Amp.,M51602F AM L3 RCiLFO0112AFZZ 1.2 wH,Choke AC
IC4 VHiLAG601//-1 Motor Control,_LAG601 AH L4 RCiLFO1O07AFZZ 1.2 ~wH,Choke AC
IC5 RH-iX1271AFZZ Mechanism Control, AP L5 RCiLFO0117AFZZ 10 wH,Choke AC
TC9305F L201 RCiLRO398AFZZ FM RF AE
10201 VHiTA7358F/-1 Front End, TA7358F AG L202 RCiLB0774AFZZ FM Oscillator AE
IC202 VHiTA7757F/-1 FM/AM IF,TA7757F AH L205 ~ RCiLAQ753AFZZ ~~ Bar Antenna AK
IC203 VHiBA1360F/-1 MPX.,BA1360F AG L206 RCiLBO756AFZZ — . AM Oscillator AF
L207 3 RCiLFO113AFZZ 10 wH,Choke AC
TRANSISTORS
| CONTROLS
Q2 VS2SC2712GR-1 = Silicon,NPN,2SC2712 GR AB
Q3 VS2SC2712GR-1 — SiliconJNPN,2SC2712 GR AB TC201 RTO-H1102AFZZ FM RF Trimmer AC
Q4 VS2SA1362GR-1 Silicon, PNP,2SA1362 GR AC TC202 RTO-H1102AFZZ FM Local Oscillator AC
Q5 VS2SC2712GR-1 — SiliconJNPN,2SC2712 GR AB | Trimmer
Q6 VS2SA1362GR-1 — Silicon,PNP,2SA1362 GR AC TC206 RTO-H1102AFZZ AM Local Oscillator AC
Q7 VS2SC2712GR-1 = SiliconJNPN,2SC2712 GR AB Trimmer
Q8 VS2SC2712GR-1 = SiliconJNPN,2SC2712 GR AB VC1(A~D) RVC-ROLO9AFZZ = Variable Capacitor,E AS
Q202 VS2SC2712GR-1 — SiliconJNPN,2SC2712 GR AB VC1(A~D) RVC-ROI1LIAFZZ _ Variable Capacitor,H AS
Q204 VS2SK211GR/-1 — Silicon,FET,2SK211 GR AD VR1 RVR-M0535AFZZ 500 ohms (B) AC
Q205 VS2SC2712GR-1 = SiliconJNPN,2SC2712 GR AB VR2 RVR-M0535AFZZ 500 ohms (B) AC
Q210 | VS2SC2712GR-1 Silicon,NPN,2SC2712 GR AB VR3(A,B) RVR-A0197AFZZ 20 kohms (C) AF
Q501 VS2SC3052F/-1 Silicon,NPN,2SC3052 F AB VR5 RVR-M0536AFZZ 3 kohms (B) | AC
Q502 VS2SC3052F/-1 Silicon, NPN,2SC3052 F AB VR6 RVR-M0538AFZZ 1 kohm (B) | AC
Q503 VS2SC3052F/-1 Silicon,NPN,2SC3052 F AB VR201 | RVR-M0537AFZZ 10 kohm (B) AC
Q504 VS2SC3052F/-1 — Silicon NPN,2SC3052 F AB VR501~504 RVR-Z0203AFZZ 100 kohm (B) AQ
Q505 VS2SC3052F/-1 — SiliconNPN,2SC3052 F AB
Q506 VS2SC3052F/-1 SiliconJNPN,2SC3052 F AB ELECTROLYTIC CAPACITORS
Q507 VS2SC3052F/-1 — SiliconNPN,2SC3052 F AB
Q508 VS2SC3052F/-1 — SiliconJNPN,2SC3052 F AB (All electrolytic capacitors are 20% type.)
DIODES C5 RC-EZ1280AFZZ 22 yu F,6V AB
| : C6 RC-EZ1280AFZZ 22 wF,6V AB
D1 VHPGP-2L02/-1 Photoreflector,GP-2L02 AH Cll RC-EZ1281AFZZ 47 uwF,4V AB
D2 VHD1SS190//-1 — Silicon,1SS190 AB C12 RC-EZC106AFOJ 10 uwF,6.3V AB
D3 VHD1SS184//-1 — Silicon,1S$184 AB C13 RC-EZ1282AFZZ 100 uF,4V AB
D4 VHD1SS184//-1 Silicon, 1SS184 AB C23 RC-SZ1029AFZZ 1 «F,10V | AD
D5 RH-PX10/71AFZZ LED,Red,GL-2PR/ AC C24 RC-EZ1281AFZZ 47 uF,4V AB
D201 VHD1SS226//-1 Silicon,1SS226 AB C33 RC-SZ1033AFZZ 4.7 wF,2V | AD
C34 RC-SZ1033AFZZ 4.7 uF,2V AD
FILTERS . C41 RC-SZ1032AFZZ 3.3 uF, 4V © AD
| C42 RC-SZ1032AFZZ 3.3 uF,4V | AD
F201 RFiLFQ117AFZZ = FM Band Pass AC C51 RC-EZC10O6AFOJ 10 uF,6.3V AB
F203 RFiLFOL1L6AFZZ -FMIF AC C52 RC-EZC1O6AFOJ 10 uF,6.3V AB
F204 RFiLAQ1I3AFZZ AMRF AD C55 RC-EZ1281AFZZ 47 uF,4V AB
| C56 RC-EZ1281AFZZ 47 uF,4V AB
TRANSFORMERS C57 RC-EZ1281AFZZ 47 uF,4V AB
| C58 RC-EZ1281AFZZ 47 uwF,4V AB
T201 RCiLiQ341AFZZ FMIF AF C61 RC-EZ1283AFZZ 220 uF,4V AC
T202 RCiLi0343AFZZ AMIF AF C63 RC-SZ1032AFZZ 3.3 uF,4V AD
=.
