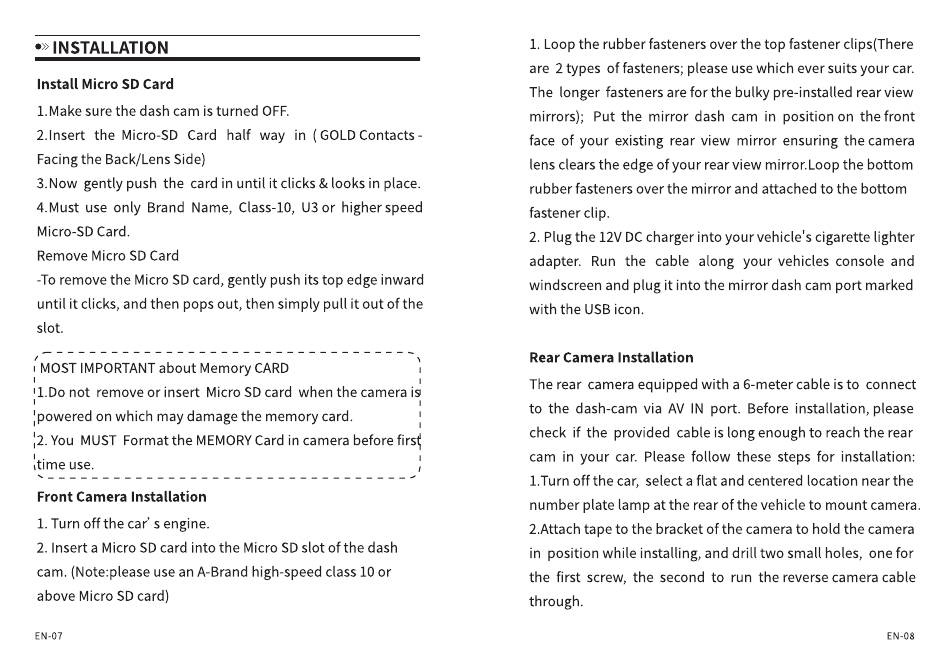

• INSTALLATION
Install Micro SD Card
1. Make sure the dash cam is turned
2. Insert the Micro-SD Card half way in (GOLD Contacts
Facing the Back/Lens Side)
3. Now gently push the card in until it clicks & looks in place.
4.Must use only Brand Name, Class-10, U30r higher speed
Micro-SD Card.
Remove Micro SD Card
-To remove the Micro SD card, gently push its top edge inward
until it clicks, and then pops out, then simply pull it out of the
slot.
I MOST IMPORTANTabout Memory CARD
ll.Do not remove or insert Micro
:poweredonwhich maydamagethe memorycard.
You MUSTFormatthe MEMORY C ardin camerabeforefirs!
Itime use.
Front Camera Installation
1.Turn off the car' s engine.
2. Insert a Micro SD card into the Micro
cam. (Note:please use an A-Brand high-speed class 10 or
above Micro SD card)
EN-07
OFF.
SD card when the camera is
SD slot of the dash
1. Loop the rubber fasteners over the top fastener clips(There
are 2 types of fasteners; please use which ever suits your car.
The longer fasteners are for the bulky pre-installed rear view
mirrors); Put the mirror dash cam in position on the front
face of your existing rear view mirror ensuring the camera
lensclears the edge of your rear view mirror.Loop the bottom
rubber fasteners over the mirror
fastener clip.
2. Plugthe 12VDCcharger into your vehicle's cigarette lighter
adapter. Run the cable along your vehicles console and
windscreen and plug it into the mirror dash cam port marked
with the USB icon.
Rear Camera Installation
The rear camera equipped with a 6-meter cable is to connect
to the dash-cam via AV IN port. Before installation, please
check if the provided cable is long enough to reach the rear
cam in your car. Please follow these steps for installation:
I. Turn off the car, select a flat and centered location near the
number plate lamp at the rear of the vehicle to mount camera.
2.Attach tape to the bracket of the camera to hold the camera
in position while installing, and drill two small holes, one for
the first screw, the second to run the reverse camera cable
through.
and attached to the bottom
EN-08
