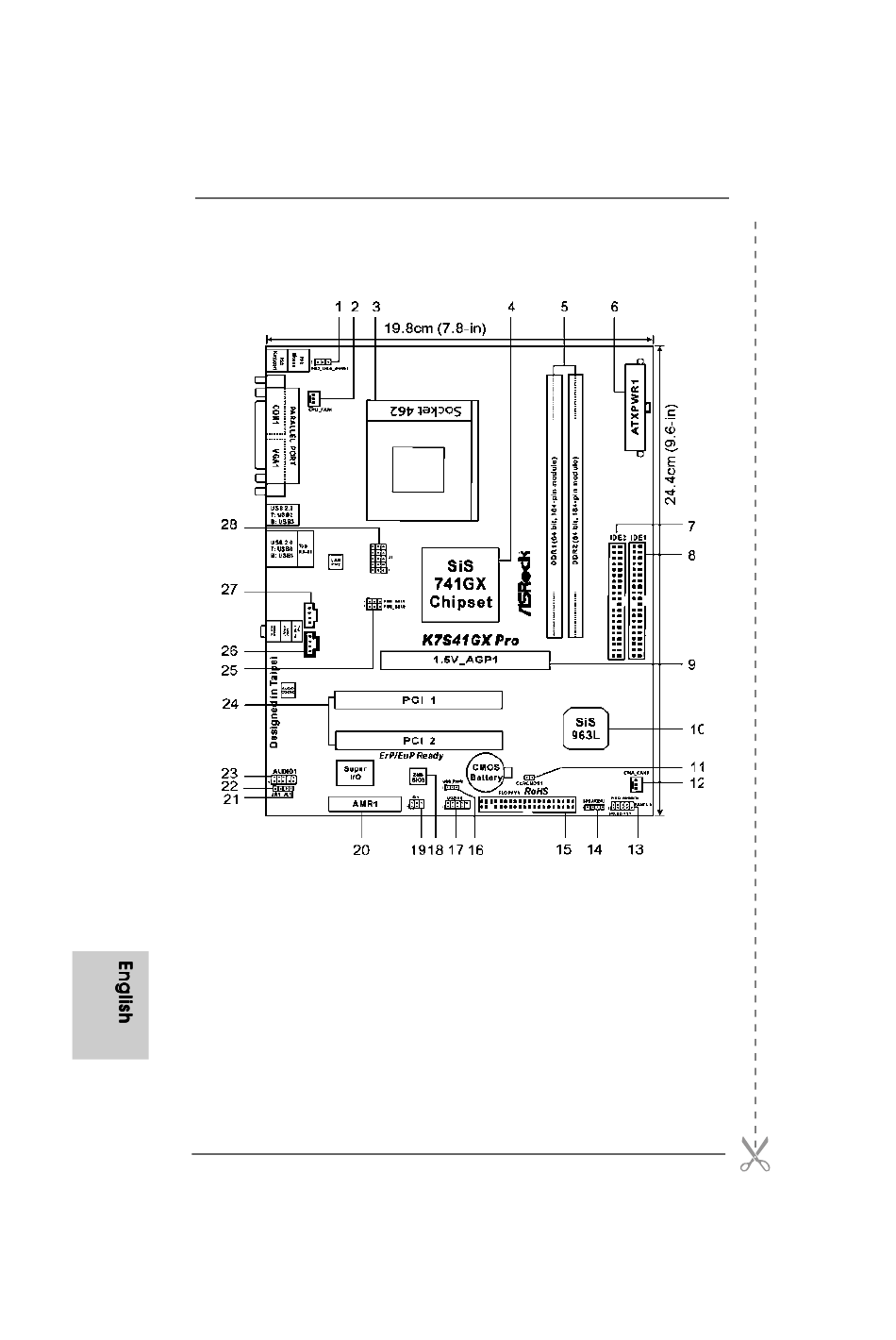

Motherboard Layout
Motherboard Layout
Motherboard Layout
Motherboard Layout
Motherboard Layout
1
PS2_USB_PWR1 Jumper
2
CPU Fan Connector (CPU_FAN1)
3
CPU Socket
4
North Bridge Controller
5
184-pin DDR DIMM Slots (DDR 1- 2)
6
ATX Power Connector (ATXPWR1)
7
Secondary IDE Connector (IDE2, Black)
8
Primary IDE Connector (IDE1, Blue)
9
AGP Slot (1.5V_AGP1)
10
South Bridge Controller
11
Clear CMOS (CLRCMOS1)
12
Chassis Fan Connector (CHA_FAN1)
13
System Panel Connector (PANEL1)
14
Chassis Speaker Connector (SPEAKER 1)
2 2 2 2 2
ASRock K7S41GX Pro Motherboard
15
Floppy Connector (FLOPPY1)
16
USB_PWR1 Jumper
17
USB 2.0 Connector (USB45, Blue)
18
Flash Memory
19
Infrared Module Connector (IR1)
20
AMR Slot (AMR1)
21
JL1 Jumper
22
JR1 Jumper
23
Front Panel Audio Connector (AUDIO1)
24
PCI Slots (PCI 1- 2)
25
FSB Select Jumpers (FSB_SEL0/FSB_SEL1)
26
Internal Audio Connector: CD1 (Black)
27
Internal Audio Connector: AUX1 (White)
28
J1 Jumpers
