''DATA LOGGER''level (menu screen 5.0). See Fig 49.
• Screen 5.1: Indicates the inverter runtime from the first start
up. This counter accumulates the total inverter running time
from the beginning and it's not possible to reset it.
• Screen 5.2: This screen indicates that the data logger is
empty. This happen only if authorised personnel resets this file.
• If the buffer is not empty, the following screen will inform about
the data logger registers.
Using the ()-() keys, you can move through the different
registers of this data logger file. The data logger file can save up
to 100 historic registers.
Using the ()-() three different type screens of screen can
be observed per register with the information described below.
• Screen 5.3: This screen shows the same information described
above in the alarm screens except the three first characters
where there is a register counter from 00) to 99).
• Screen 5.4: This screen is divided in two rows. In the first row
shows the information about time and date of alarm activation:
ˆ hh: hour of alarm activation
ˆ mm: minutes of alarm activation
ˆ ss: seconds of alarm activation
ˆ dd: day of alarm activation
ˆ mm: month of alarm activation
ˆ aa: year of alarm activation
In the second row there is information about time and date of
cleared alarm.
ˆ hh: hour of cleared alarm
ˆ mm: minutes of cleared alarm
ˆ ss: seconds of cleared alarm
ˆ dd: day of cleared alarm
ˆ mm: month of cleared alarm
ˆ aa: year of cleared alarm
• Screen 5.5: This is a screen for technical service only, in order
to know the state of the different parts of the UPS at the mo-
ment the registered alarm was triggered.
()
RATED VALUES
()
(*1)
screen 7.0
()
()

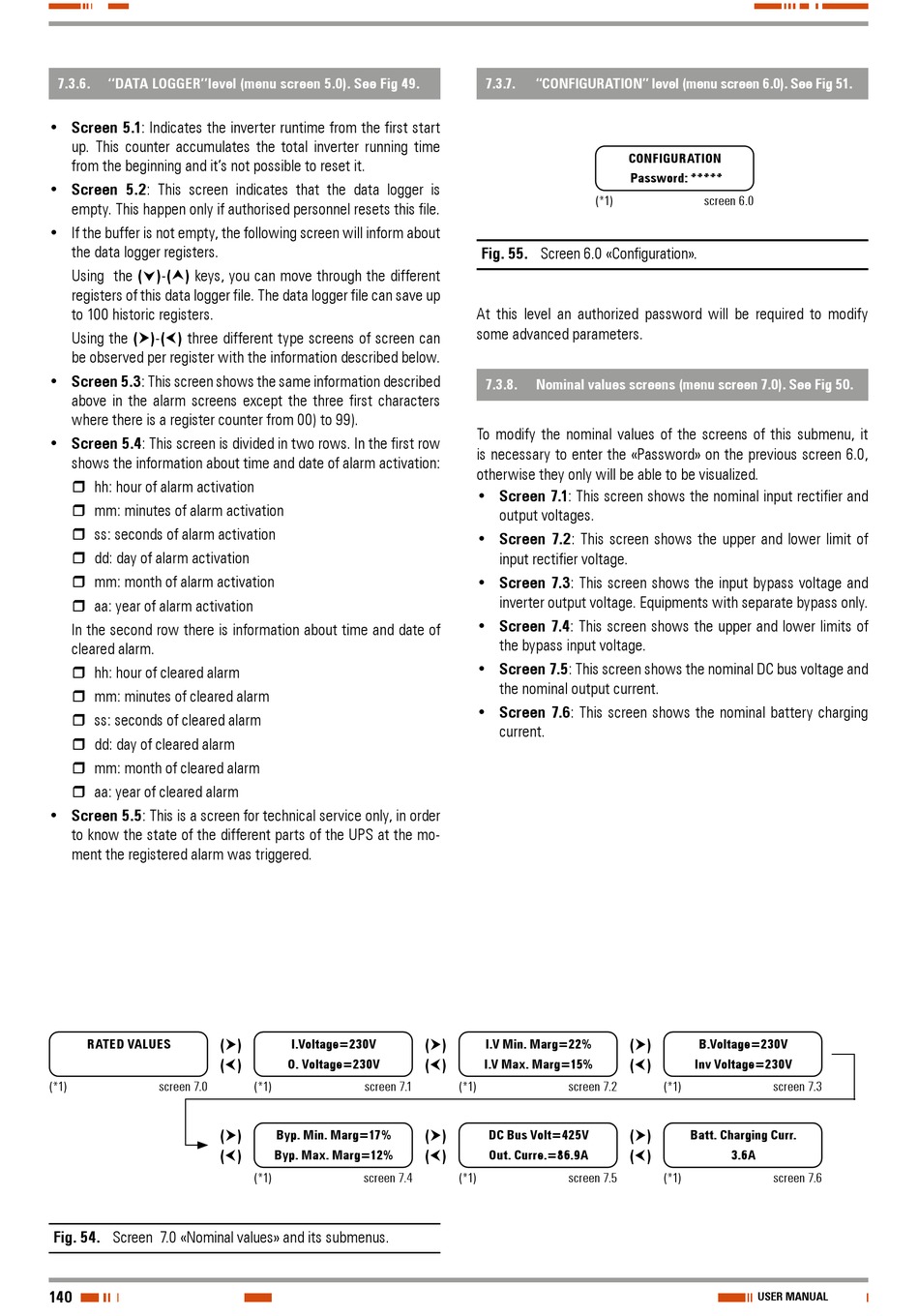

Fig. 54. Screen 7.0 «Nominal values» and its submenus.
140
()
I.Voltage=230V
()
O. Voltage=230V
(*1)
screen 7.1
()
Byp. Min. Marg=17%
()
Byp. Max. Marg=12%
(*1)
screen 7.4
7.3.7.
''CONFIGURATION'' level (menu screen 6.0). See Fig 51.
CONFIGURATION
Password: *****
(*1)
Fig. 55. Screen 6.0 «Configuration».
At this level an authorized password will be required to modify
some advanced parameters.
7.3.8.
Nominal values screens (menu screen 7.0). See Fig 50.
To modify the nominal values of the screens of this submenu, it
is necessary to enter the «Password» on the previous screen 6.0,
otherwise they only will be able to be visualized.
• Screen 7.1: This screen shows the nominal input rectifier and
output voltages.
• Screen 7.2: This screen shows the upper and lower limit of
input rectifier voltage.
• Screen 7.3: This screen shows the input bypass voltage and
inverter output voltage. Equipments with separate bypass only.
• Screen 7.4: This screen shows the upper and lower limits of
the bypass input voltage.
• Screen 7.5: This screen shows the nominal DC bus voltage and
the nominal output current.
• Screen 7.6: This screen shows the nominal battery charging
current.
()
I.V Min. Marg=22%
()
I.V Max. Marg=15%
(*1)
screen 7.2
()
DC Bus Volt=425V
()
Out. Curre.=86.9A
(*1)
screen 7.5
screen 6.0
B.Voltage=230V
Inv Voltage=230V
(*1)
screen 7.3
Batt. Charging Curr.
3.6A
(*1)
screen 7.6
