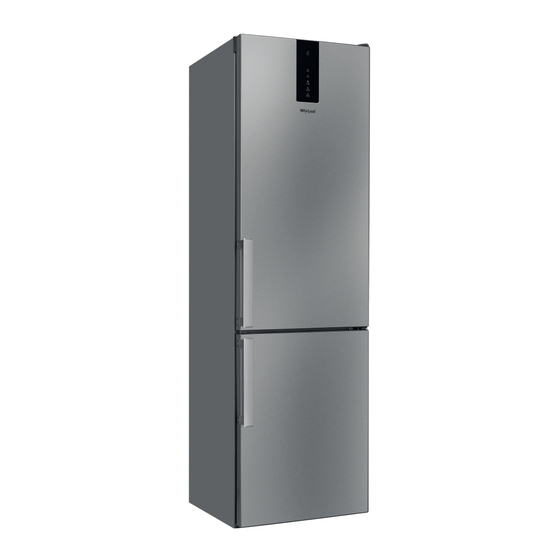

Whirlpool W9 941A IX H Kurzanleitung

Quick guide
THANK YOU FOR BUYING A WHIRLPOOL PRODUCT
In order to receive a more complete assistance, please
register your product on
FIRST TIME USE
After installation, wait at least two hours before connecting the
appliance to the power supply. Once connected, it will start working
automatically. The ideal temperature settings are preset from the factory.
CONTROL PANEL
ON/STANDBY
To put the product in Standby, press and hold the On/Standby button
for 3 seconds. All the indicators turn off except On/Standby indicator.
In Standby mode the light in the refrigerator compartment does not
turn on.
Press again to reactivate the appliance.
FRIDGE TEMPERATURE
To adjust the fridge temperature, press the Fridge °C button. The fridge
temperature can be adjusted between +2°C and + 8°C, as shown by
the fridge/freezer temperature display. Recommended setting for the
refrigerator compartment is +4°C
FREEZER TEMPERATURE
To adjust the freezer temperature, press the Freezer °C button.
The freezer temperature can be adjusted between -16°C and -24°C, as
shown by the the fridge/freezer temperature display.
Recommended setting for the freezer compartment is -18°C.
FAST COOL
Using Fast Cool function it is possible to increase the cooling
capacity in the refrigerator compartment. The use of this function
is recommended when placing a very high quantity of food in the
refrigerator compartment.
Press the fridge temperature button/ Fast Cool button for 3 sec to
activate Fast Cool function. When activated, the Fast Cool indicator
turns on. The function is automatically disabled after 6 hours, or can be
manually disabled by pressing the fridge temperature button button/
Fast Cool button again for 3 sec.
FAST FREEZE
The use of this function is recommended when placing a very high
quantity of food to be frozen in the freezer compartment.
24 hours before freezing fresh food, press the freezer temperature
button /Fast Freeze button for 3 sec to activate the Fast Freeze
function. When activated, the Fast Freeze indicator turns on. After
24 hours place the food to be frozen in the bottom freezing zone
of freezer compartment. The function is automatically disabled
after 48 hours, or can be manually disabled by pressing the freezer
temperature button / Fast Freeze button again for 3 sec.
PARTY MODE
Press the Party Mode button to activate the Party Mode function. The
Party Mode icon turns on.
* Available only on certain models
www . whirlpool . eu/ register
Before using the appliance carefully read the Safety
Instruction.
After turning the appliance on, wait 4-6 hours for it to reach the correct
food storage temperature.
1. Smart display indicator
2.
Door open indicator
3.
Black-out alarm indicator
4.
Fast Cool indicator
5. Fridge temperature display (°C)
6. Vacation Mode indicator
7.
Precision control indicator
8.
Fast Freeze indicator
9.
Freezer temperature display (°C)
10. On/Standby button
11. Stop Alarm button
12.
Fridge temperature button (°C) / Fast Cool button
13.
Party Mode button / Vacation Mode button
14.
Freezer temperature button (°C) / Fast Freeze button
Use this function to chill drinks inside the freezer compartment.
Important: do not leave the bottle inside the freezer compartment
longer than the function is active (30 minutes).
The function can be manually disabled by pressing the Party Mode
button, before the acoustical alarm turns on.
After 30 min since it has been engaged, the acoustical alarm is
activated, the party mode icon and the alarm indicator blink Press the
Stop Alarm button to exit party mode.
VACATION
You can use this function in the event of a prolonged absence from
home. Press the Vacation button for 3 sec to engage Vacation Mode.
The display will show the temperature of the refrigerator compartment
(+12°C) and the Vacation mode icon will light up. After activating
this function, remove the food from the refrigerator compartment
and keep both doors closed - the refrigerator will maintain a suitable
temperature to prevent odours from forming. The freezer, however,
remains at the temperature originally set. A deep clean (of both
refrigeration and freezer compartment) is recommended before
activating this function in order to prevent the spread of bacteria.
Press again the same button for 3 sec to deactivate Vacation.
Changing the setpoint will automatically deactivate the function.
SMART DISPLAY
This function is active by default and turns off the LEDs on the user
interface 15 sec after the last interaction with the user interface and/or
with the door.
When activated, other buttons and the displays are switched off except
the smart display icon The function can be manually deactivated by
pressing the Stop Alarm button for 5 sec.
To reactivate this function repeat the same procedure. Remember
that this function does not disconnect the appliance from the power
supply, but only reduce the power consumed by external display Every
time you want to use the control panel and see all the functions, you
just need to touch any button to wake up the panel.
PRECISION CONTROL FUNCTION
This is an advanced technology that reduces temperature fluctuations
in the whole freezer compartment. Freezer burns are reduced and food
preserves its original quality and color. This function is automatically
engaged when the freezer temperature set-point is between -22°C and
-24°C. This is signaled by Precision control indicator.
If the function is engaged and the user modifies the freezer
temperature out of the working range, the function is automatically
switched off.
EN
