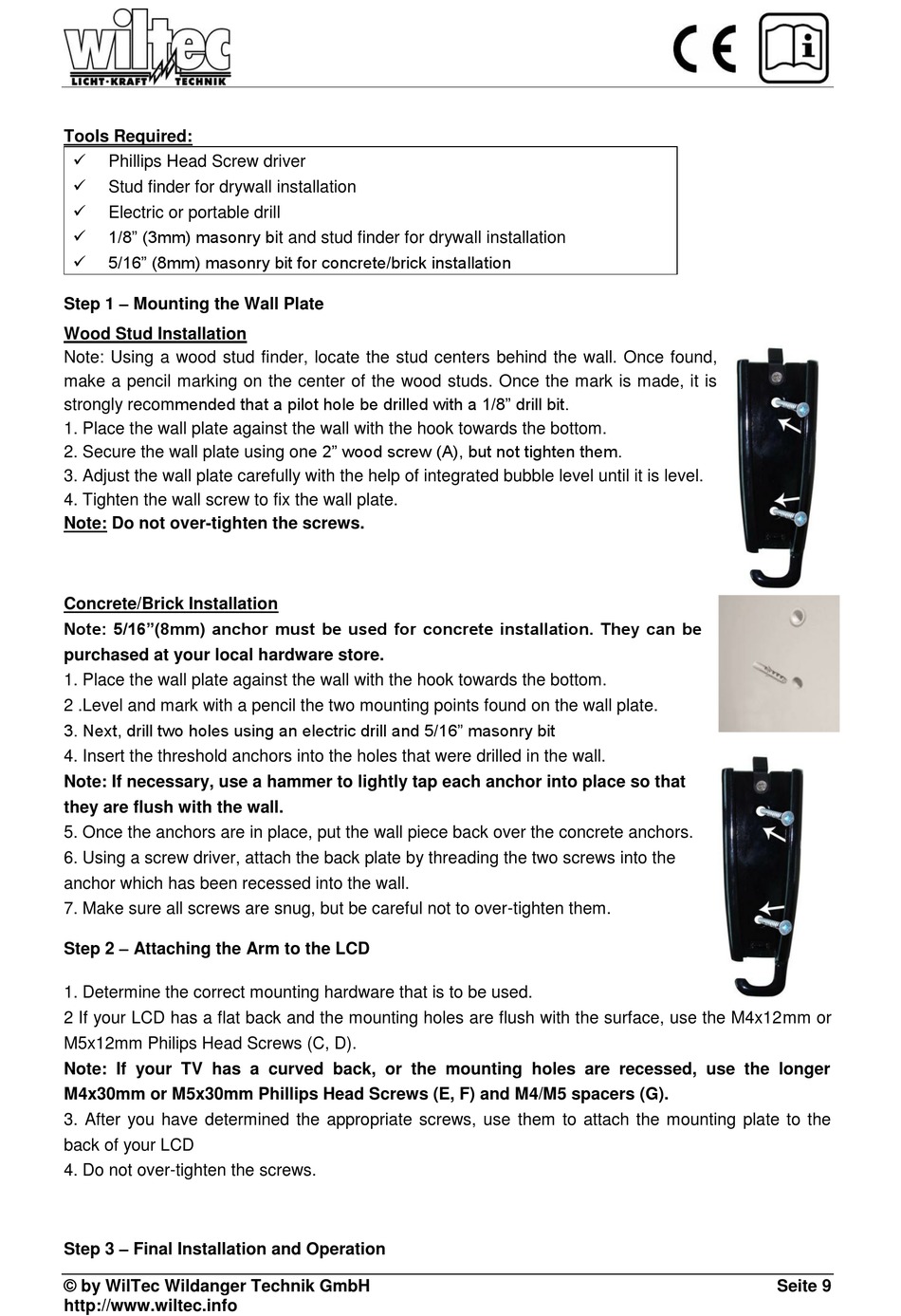

WilTec L20 Montageanleitung Seite 9

Tools Required:

Phillips Head Screw driver

Stud finder for drywall installation

Electric or portable drill
 1/8" (3mm) masonry bit and stud finder for drywall installation
 5/16" (8mm) masonry bit for concrete/brick installation
Step 1 – Mounting the Wall Plate
Wood Stud Installation
Note: Using a wood stud finder, locate the stud centers behind the wall. Once found,
make a pencil marking on the center of the wood studs. Once the mark is made, it is
strongly recommended that a pilot hole be drilled with a 1/8" drill bit.
1. Place the wall plate against the wall with the hook towards the bottom.
2. Secure the wall plate using one 2" wood screw (A), but not tighten them.
3. Adjust the wall plate carefully with the help of integrated bubble level until it is level.
4. Tighten the wall screw to fix the wall plate.
Note: Do not over-tighten the screws.
Concrete/Brick Installation
Note: 5/16"(8mm) anchor must be used for concrete installation. They can be
purchased at your local hardware store.
1. Place the wall plate against the wall with the hook towards the bottom.
2 .Level and mark with a pencil the two mounting points found on the wall plate.
3. Next, drill two holes using an electric drill and 5/16" masonry bit
4. Insert the threshold anchors into the holes that were drilled in the wall.
Note: If necessary, use a hammer to lightly tap each anchor into place so that
they are flush with the wall.
5. Once the anchors are in place, put the wall piece back over the concrete anchors.
6. Using a screw driver, attach the back plate by threading the two screws into the
anchor which has been recessed into the wall.
7. Make sure all screws are snug, but be careful not to over-tighten them.
Step 2 – Attaching the Arm to the LCD
1. Determine the correct mounting hardware that is to be used.
2 If your LCD has a flat back and the mounting holes are flush with the surface, use the M4x12mm or
M5x12mm Philips Head Screws (C, D).
Note: If your TV has a curved back, or the mounting holes are recessed, use the longer
M4x30mm or M5x30mm Phillips Head Screws (E, F) and M4/M5 spacers (G).
3. After you have determined the appropriate screws, use them to attach the mounting plate to the
back of your LCD
4. Do not over-tighten the screws.
Step 3 – Final Installation and Operation
© by WilTec Wildanger Technik GmbH
http://www.wiltec.info
Seite 9
