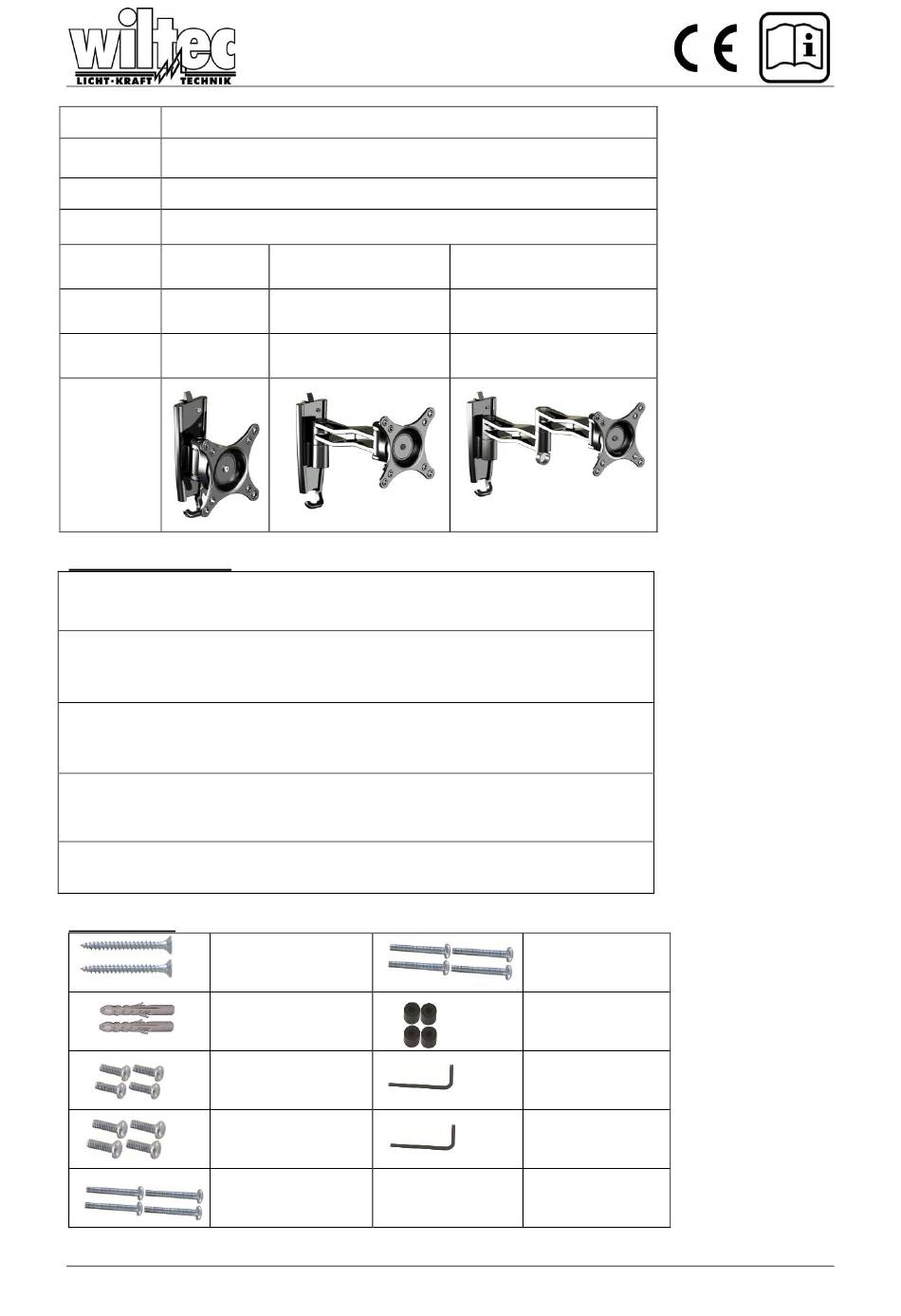

WilTec L20 Montageanleitung Seite 8

Max. load 44 lbs (20kg)
Screen
13" to 27"
size
VESA 75/100
Tilt Range +/-15°
Pan/Swivel
60°
Range
Horizontal
360°
Rotation
Extension
3.9"/100mm
/Profile
Warning Statements
The wall structure must be capable of supporting the combined weight of the
mount and the display; otherwise the structure must be reinforced.
Safety measures must be practiced at all times during the installation of this
product. Use proper safety gear and tools for the installation procedure to
prevent personal injury.
Prior to the installation of this product, the installation instructions should be
read and completely understood. If you are unsure of any part of the installa-
tion process, contact a professional installer for assistance.
Do not install near heater, fireplace, direct sunlight, air conditioning or any
other source of direct heat energy. Failure to do so may result in damage to
the display and could increase the risk of fire.
At least two qualified people should perform the installation procedure. Injury
and/or damage can result from dropping or mishandling the display.
Hardware kit:
A. Wood Screw
(x2)
B. Concrete
Anchor (x2)
C. M4x12mm
Bolt (x4)
D. M5x12mm
Bolt (x4)
E. M4x30mm
Bolt (x4)
© by WilTec Wildanger Technik GmbH
http://www.wiltec.info
180°
360°
3.9"-9.8"/100-250mm
180°
360°
3.9"-15.7"/100-400mm
F. M5x30mm
Bolt (x4)
G. M4/M5 Spac-
er
(x4)
H. S= 3mm
Allen Wrench
I. S= 4mm
Allen Wrench
