Advanced Features

Yellow - Input/Output Jack 2
Red - Input/Output Jack 1
Using Pictures and Symbols
Two Snap Switch Caps have been included with the iTalk2.
Use these clear plastic caps to secure pictures or symbols
to the switch tops.
iTalk2 also includes a built-in symbol holder at the top
of the device. Pull the clear plastic holder away from the
device to store any picture or symbol up to 2 by 2-inches.
Controlling Toys or Appliances
The iTalk2's Input/Output jacks allow you to activate switch-
adapted toys or appliances with this device.
1.
Plug any switch-adapted toy or appliance into one or both of
the Input/Output jacks.
2.
Record a message into the corresponding location(s).
NOTE: Red switch activates jack 1, Yellow activates jack 2.
3.
Press the switch top to play the message and activate the attached toy
or appliance for the length of the message.
NOTE: To control an electrical appliance, a PowerLink® 3 is required. For
information about adapting toys and appliances, visit www.ablenetinc.com
Playing a message with an External Switch
iTalk2's Input/Output jacks default to the settings above.
To use external switch(es) with the iTalk2:
1.
Turn the device off.
2.
Attach switch(es) of your choice with 1/8-inch (3.5mm) plugs into one
or both of the Input/Output jacks.
3.
While holding external switch(es) down, turn iTalk2 on.
The Toy/Appliance feature is disabled when using external switch(es). To
revert to default Toy/Appliance function, turn the device off and back on.

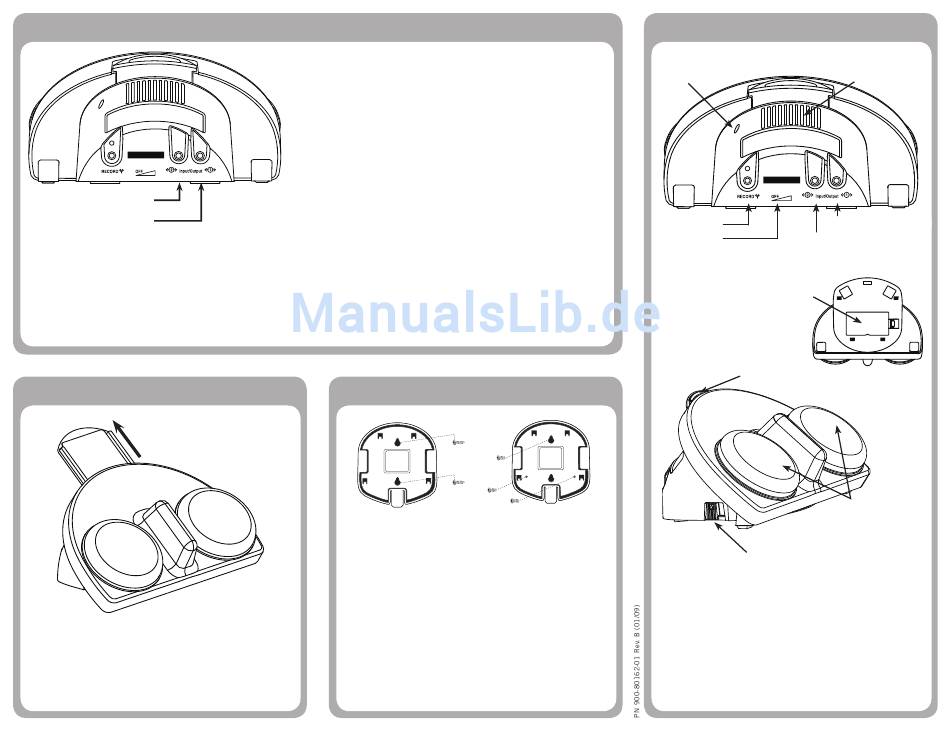

Mounting Options

Fig. A
The iTalk2 communicator includes an easy mounting
base.
Release the base by pressing the quick release tab on the
mounting base and sliding towards the back of the device.
Attach the base by aligning the four posts on the Base with
the corresponding holes on iTalk2. Slide the base forward
until it clicks.
For a temporary mount, use a #8 pan head screw and the
two vertical slots on the Mounting Base. (Figure A)
For permanent mounting, screw the mounting base into
place with the three holes shown at left. (Figure B)
Additional mounting options available at www.ablenetinc.com.
Product Map and Warranty
Microphone
Record Button
Volume On/Off
Top View
Fig. B
Warranty/Repair/Return Information
AbleNet offers a limited two-year warranty on the iTalk2
communicator product. For full warranty details,
visit www.ablenetinc.com
For more information on AbleNet products and services:
AbleNet, Inc.,
Minneapolis/St. Paul, MN
800-322-0956 (US & Canada)
Internet: www.ablenetinc.com
© 2007 AbleNet, Inc., All Rights Reserved
Back View
Speaker
Input/Output Jack 1 (Red)
Input/Output Jack 2 (Yellow)
Bottom View
Battery Door
Symbol Holder
Switch Tops
Level Switch
