Thank you for choosing the PROTEC.class PPVT a PV solarpanel tester.
Safety instructions
You have chosen an appliance that offers you a high level of safety. To ensure safe and correct use, it is essential that you read these
operating instructions in full before using the appliance for the first time.

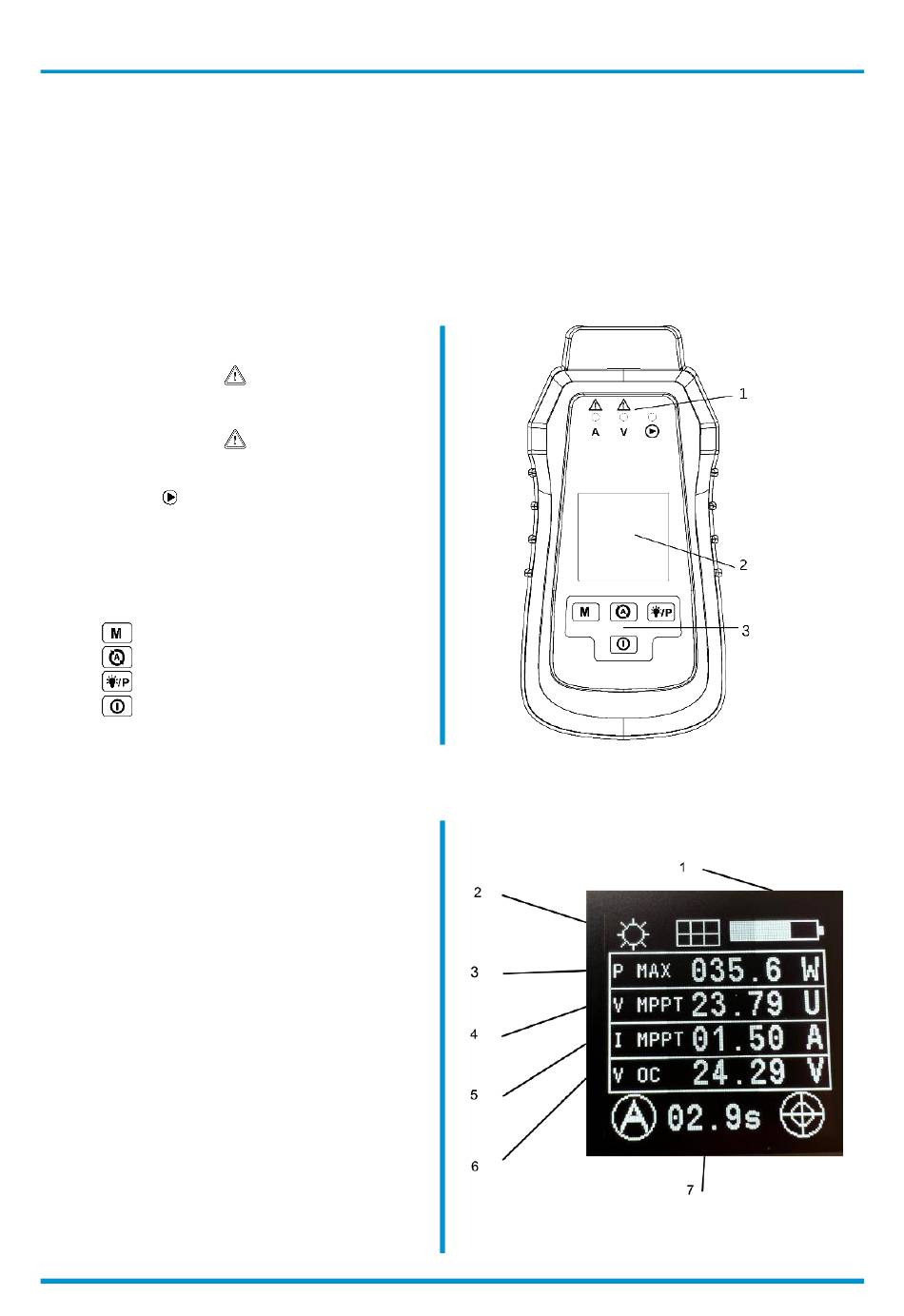

Device structure
1. Status LEDs
LED - A ->
LED - V ->
LED - ->Lights up green during the
2. Display
3. Control elements
= Manual mode
= Automatic mode
= Precision mode / brightness control
= On-/Off Switch
Display structure
1. Battery status
2. Display brightness
3. P MAX
shows the maximum power achieved by the
PV module
4. V MPPT (Maximum Power Point Tracking)
Shows the optimal working voltage of the PV
module during measurement
5. I MPPT (Maximum Power Point Tracking)
Shows the optimal working current of the PV
module during measurement
6. V OC
Open circuit voltage (open circuit)
Displays the voltage of the PV module with-
out load
7. Cooling time between measurements
12
Overcurrent > 30A
(Lights up red with current > 30A)
Overvoltage > 60V
(lights up yellow at voltage > 60V)
measuring process
PROTEC.class PPVT
