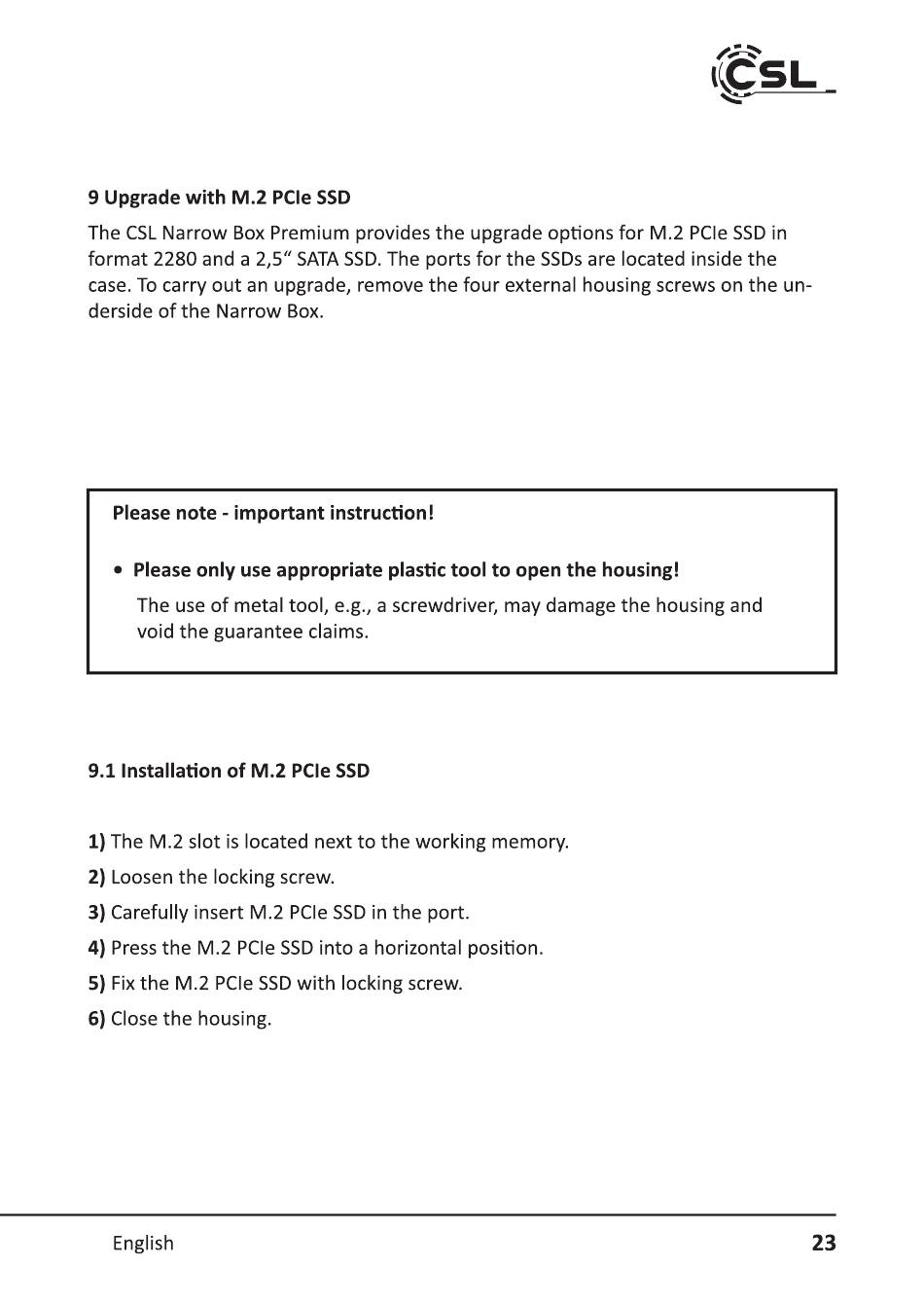

9 Upgrade with M.2 PCIeSSD
The CSL Narrow Box Premium provides the upgrade options for M.2 PCIe SSD in
format 2280 and a 2,5" SATASSD.The ports for the SSDsare located inside the
case. TOcarry out an upgrade, remove the four external housing screws on the un-
derside of the Narrow
Please note - important instruction!
• Please only use appropriate plastic tool to open the housing!
The use Of metal tool, e.g., a screwdriver, may damage the housing and
void the guarantee claims.
9.1 Installation of M.2
1) The M.2 slot is located next to the working memory.
2) Loosen the locking screw.
3) Carefully insert M.2 PCIeSSDin the port.
4) Press the M.2 PCIe SSDinto a horizontal position.
5) Fix the M.2 PCIeSSDwith locking screw.
6) Close the housing.
English
Box.
PCIe SSD
