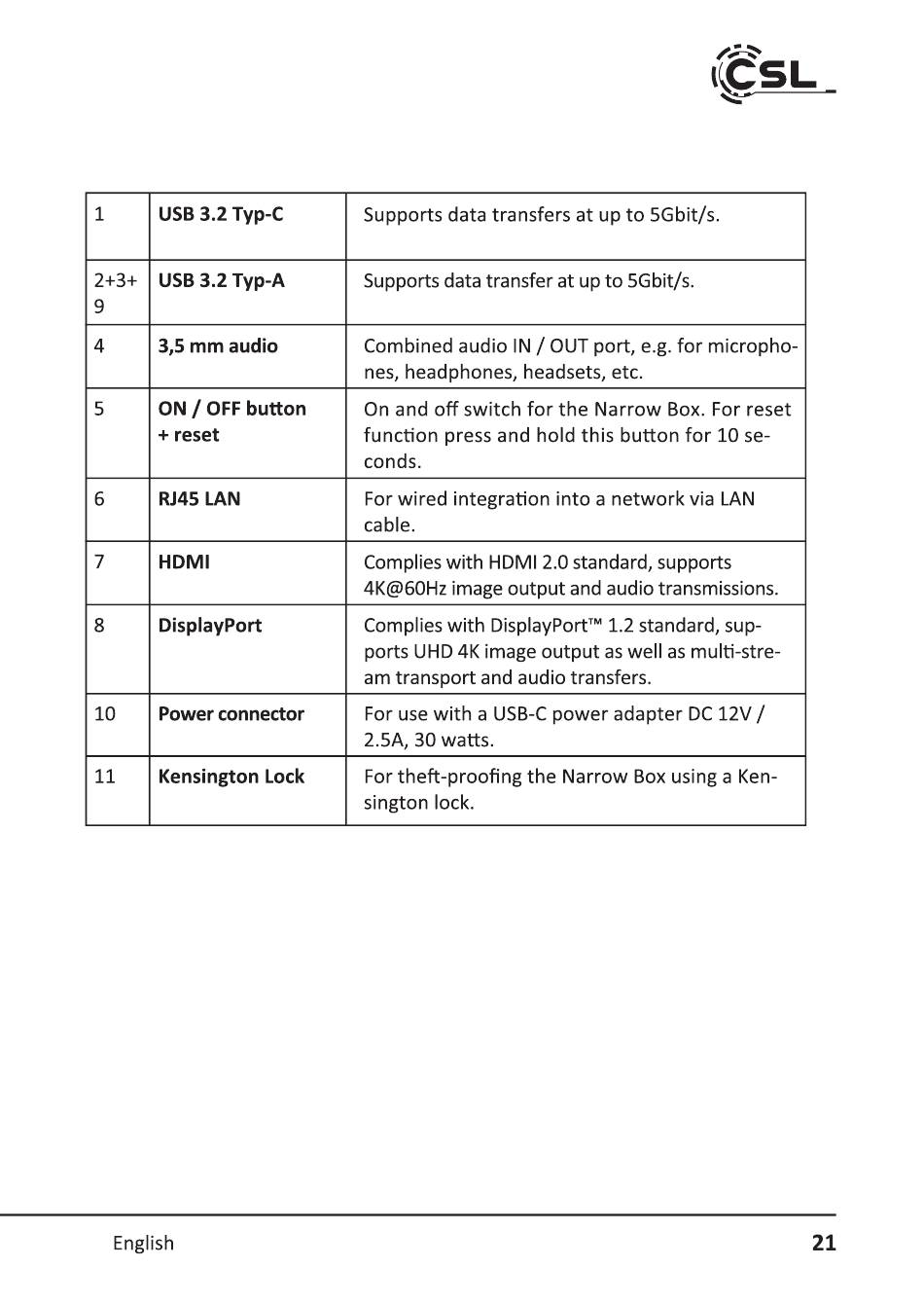

USB 3.2 Typ-c
1
2+3+ USB 3.2 Typ-A
9
3,5 mm audio
4
5 ON / OFF button
+ reset
6 RJ45 LAN
7 HDMI
8 DisplayPort
10
Power connector
Kensington Lock
11
English
Supports data transfers at up to 5Gbit/s.
Supports data transfer at up to 5Gbit/s.
Combined audio IN / OUT port, e.g. for micropho-
nes, headphones, headsets, etc.
On and off switch for the
function press and hold this button for 10 se-
conds.
For wired integration into a network via LAN
cable.
Complies with HDMI 2.0 standard, supports
4K@60Hz image output and audio transmissions.
Complies with DisplayPortw
ports UHD 4K image output as well as multi-stre-
am transport and audio transfers.
For use with a USB-Cpower adapter DC 12V /
2.5A, 30 watts.
For theft-proofing the Narrow Box using a Ken-
sington lock.
Narrow Box. For reset
1.2 standard, sup-
